Specifications
LAN (NPort IA5150-M-SC/5150I-M-SC/5150-S-SC/5150I-S-SC)
Fiber Port
1 100BaseFX port (SC connector)
LAN (NPort IA5150/5150I/5250)
Ethernet Switch Ports
2 10/100BaseT(X) ports (RJ45 connector)
Protection
Built-in 1.5 KV magnetic isolation
Optical Fiber
Distance
Multi mode: 0 to 2 km, 1310 nm (62.5/125 m, 500 MHz*km)
Single mode: 0 to 40 km, 1310 nm (9/125 m, 3.5 PS/(nm*km))
Min. TX Output
Multi mode: -20 dBm
Single mode: 0 to 40 km, -5 dBm
Max. TX Output
Multi mode: -14 dBm
Single mode: 0 to 40 km, 0 dBm
Sensitivity
-36 to -32 dBm (Single), -34 to -30 dBm (Multi)
NPort IA5150 Series Serial Interface
Interface
RS-232/422/485
No. of Ports
1
Port Type
male DB9 for RS-232;
5-pin terminal block for RS-422/485
Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx , Tx-, Rx , Rx-, GND
4-wire RS-485: Tx , Tx-, Rx , Rx-, GND
2-wire RS-485: Data , Data-, GND
RS-485 Data Direction
Patented ADDC (Automatic Data Direction Control)
Isolation
2 KV (5150I/5150I-M-SC/5150I-S-SC)
Serial line protection
15 KV ESD for all signals
NPort IA5250 Serial Interface
Interface
RS-232/422/485
No. of Ports
2
Port Type
male DB9
Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx , Tx-, Rx , Rx-, GND
4-wire RS-485: Tx , Tx-, Rx , Rx-, GND
2-wire RS-485: Data , Data-, GND
RS-485 Data Direction
Patented ADDC (Automatic Data Direction Control)
Serial line protection
15 KV ESD for all signals
Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data bits
5, 6, 7, 8
Stop bits
1, 1.5, 2
Flow control
RTS/CTS (for RS-232 port only), XON/XOFF
Transmission Speed
110 bps to 230.4 Kbps
Software Features
Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP
Utilities
NPort Administrator for Windows 95/98/ME/NT/2000/XP/2003
Real COM/TTY drivers
Windows 95/98/ME/NT/2000/XP/2003 COM driver, Linux real TTY driver, UNIX Fixed TTY driver
Configuration
Web browser, Telnet Console, Windows Utility, or Serial console
Power Requirements
Power Input
12 to 48 VDC
Power Consumption
5150: 358 mA at 12V (max.)
5150I: 417 mA at 12V (max.)
5250: 390 mA at 12V (max.)
Mechanical Specifications
Casing
IP30 protection
Dimensions (W x D x H)
29 x 89.2 x 118.5 mm
Gross Weight
5150 series: 0.15 kg (0. 33 lb)
5250: 0.16 kg (0.35 lb)
Environmental
Operating Temperature
0 to 55C (32 to 131F), 5 to 95% RH
-40 to 75C (-40 to 167F) for -T models
Storage Temperature
-20 to 85C (-4 to 185F), 5 to 95% RH
Regulatory Approvals
Safety
UL60950 (E212360), UL 508, CSA C22.2 No. 60950, EN60950
Hazardous location
UL/cUL Class I, Division 2,
Groups A, B, C and D (E238559) (pending)
ATEX Class I, Zone 2, EEx nC IIC (03CA24537) (pending)
EMI
FCC Part 15, CISPR (EN55022) class A
EMS
EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 4
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3
EN61000-4-8
EN61000-4-11
EN61000-4-12
Shock
IEC60068-2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Dust-proof
IP30
Ordering Information
Standard Operating Temperature Models (0 to 55C)

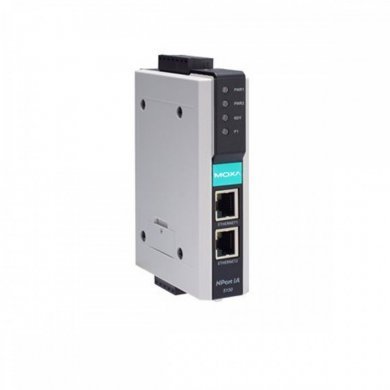

NPort IA5150
1-port RS-232/422/485 serial device server, 2 x 10/100BaseT(X) (RJ45, Single IP)
NPort IA5150I
1-port RS-232/422/485 serial device server with 2 KV isolation, 2 x 10/100BaseT(X) (RJ45, Single IP)
NPort IA5250
2-port RS-232/422/485 serial device server, 2 x 10/100BaseT(X) (RJ45, Single IP)
NPort IA5150-S-SC
1-port RS-232/422/485 serial device server, 1-port 100BaseFx Single mode Fiber, SC connector
NPort IA5150I-S-SC
1-port RS-232/422/485 serial device server with 2 KV isolation, 1 100BaseFx Single mode Fiber, SC connector
NPort IA5150-M-SC
1-port RS-232/422/485 serial device server, 1-port 100BaseFx Multi mode Fiber, SC connector
NPort IA5150I-M-SC
1-port RS-232/422/485 serial device server with 2 KV isolation, 1-port 100BaseFx Multi mode Fiber, SC connector
Above items include:
1 NPort IA Serial Device Server
Quick Installation Guide
NPort Documentation and Software CD-ROM
*Extended Operating Temperature (-40 to 75C) Models are also available: NPort IA5150-T, NPort IA5150I-T, NPort IA5250-T, NPort IA5150-S-SC-T, NPort IA5150I-S-SC-T, NPort IA5150-M-SC-T, NPort IA5150I-M-SC-T
Optional Accesories
DR-4524
45W/2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input
DR-75-24
75W/3.2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input
DR-120-24
120W/5A DIN-Rail 24 VDC Power Supply with 88 to 132 VAC/176 to 264 VAC input by switch
SC to SC connector
Optical Fiber Patch cord, full duplex Multi Mode 62.5 micron (1 meter,3 meter,5 meter,10 meter)
ST to ST connector
Optical Fiber Patch cord, full duplex Multi Mode 62.5 micron (1 meter,3 meter,5 meter,10 meter)
SC to ST connector
Optical Fiber Patch cord, full duplex Multi Mode 62.5 micron (1 meter,3 meter,5 meter,10 meter)
