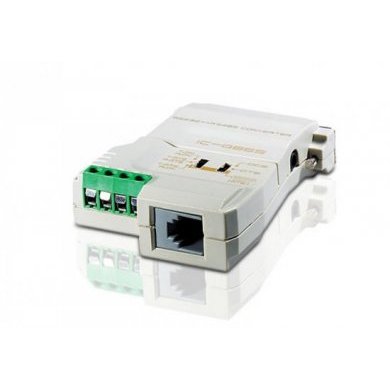

IC-485S Conversor ATEN RS232 para RS422 e RS485

Name: IC-485S Conversor ATEN RS232 para RS422 e RS485
Brand: ATEN
SKU: IC-485S
Price: 822.00 BRL
Availability: InStock

para até 1200 metros

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 822,00

à vista no Pix ou Boleto

ou R$ 865,15 em 1x no cartão (via site)

ou R$ 913,22 no cartão em até 10x sem juros (apenas na loja física)

R$ 822,00

à vista no Pix ou Boleto

R$ 865,15
em 1x no cartão (via site)

R$ 913,22 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85444200

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85444200

Cotação PJ mais de uma unidade

Indicar IC-485S

IC-485S Conversor ATEN RS232 para RS422 e RS485
para até 1200 metros

Condição de IC-485S: Novo em embalagem comercial

Garantia de IC-485S: 12 meses direto com a Net Computadores

RS-232 to RS-485/422 BIDIRECTIONAL CONVERTER

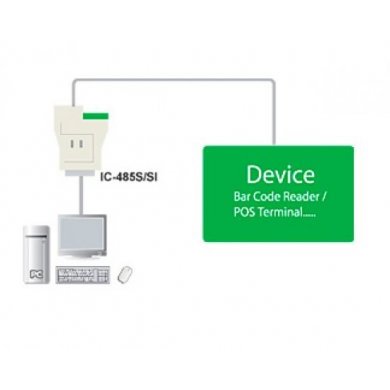

The IC485S is a bi-directional interface converter for RS-232 and RS-485. It is a hardware solution to the problem of converting signals between two standards. Data transfer can take place at up to 1200m (4000 feet), over four or two wire cable for full or half duplex, respectively. The converters can handle any RS-485/RS-422 device allowing it to as a short haul modem or interface converter. Request to send (RTS) selection allows up to 32 receivers to be set up in a multi-drop installation, making for a cost effective network configuration. With the IC-485 series, it provides Point-to Point, Multi-drop and Simplex operations. The IC485S also provides an extra Monitoring . Two slide switches are used to configure its operation mode, contention control, and assignment of the RS-232.

Features:

Data Transmission Controlled by the RTS Signal
DCE/DTE Selectable
Point to Point, Multidrop and Simplex/Duplex Link Selectable
Four Wire Full Duplex / Two Wire Half Duplex
Monitor Configuration Support
Compact size
Power consumption: DC9V, 1.35W (max.)
Data rate up to 100 kbps under 4000 feet (1200 m)
Function switches: SW1(DCE, DTE, Monitor), SW2(TxON, RxON,TxRTS, RxRTS,TxRTS, RxON)
Connectors: One DB-25 Female (RS-232), RS-485 / RS-422 Four Terminal Block, RJ-11
Weight: 0.9 lbs.
Size: 2.2H x 3.2H x 0.8D

Includes:
IC485S bi-directional isolated converter
Power adapter
User manual
Warranty registration card
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Features and Benefits:
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex/two wire half duplex.
- Monitor configuration support.
- Compact size.
- OS Compatibility: WIN98-WIN ME-WIN 2K -WIN NT and WIN XP

Maiores detalhes de IC-485S no site do fabricante:
http://www.aten.com/products/Data-Communication/Industry-Controls/RS-232RS-485-I

Tags de IC-485S: IC485S, IC-485S, IC 485S, IC485, RS-232/RS-485 Interface Converter, AT-210B, Adaptador RS232, RS485, RS-485, RS 485, RS-232, RS 232, STM485S, STM485, Controladora Serial, ATEN

IC-485S Conversor ATEN RS232 para RS422 e RS485 para até 1200 metros

Condição de IC-485S:
Novo em embalagem comercial

Garantia de IC-485S:
12 meses direto com a Net Computadores

Data Transmission Controlled by the RTS Signal
DCE/DTE Selectable
Point to Point, Multidrop and Simplex/Duplex Link Selectable
Four Wire Full Duplex / Two Wire Half Duplex
Monitor Configuration Support
Compact size
Power consumption: DC9V, 1.35W (max.)
Data rate up to 100 kbps under 4000 feet (1200 m)
Function switches: SW1(DCE, DTE, Monitor), SW2(TxON, RxON,TxRTS, RxRTS,TxRTS, RxON)
Connectors: One DB-25 Female (RS-232), RS-485 / RS-422 Four Terminal Block, RJ-11
Weight: 0.9 lbs.
Size: 2.2H x 3.2H x 0.8D

Includes:
IC485S bi-directional isolated converter
Power adapter
User manual
Warranty registration card
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Features and Benefits:
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex/two wire half duplex.
- Monitor configuration support.
- Compact size.
- OS Compatibility: WIN98-WIN ME-WIN 2K -WIN NT and WIN XP
