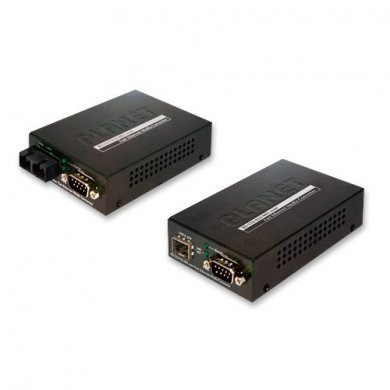

ICS-105A Planet RS-485 Ethernet Media Converter SFP

Name: ICS-105A Planet RS-485 Ethernet Media Converter SFP
Brand: PLANET Technology
SKU: ICS-105A
Price: 872.00 BRL
Availability: InStock

DB15 to 100FX (RS-232, 422, 485 port to one 100Base-FX Media Converter)

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 872,00

à vista no Pix ou Boleto

ou R$ 917,35 em 1x no cartão (via site)

ou R$ 968,31 no cartão em até 10x sem juros (apenas na loja física)

R$ 872,00

à vista no Pix ou Boleto

R$ 917,35
em 1x no cartão (via site)

R$ 968,31 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 872,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar ICS-105A

ICS-105A Planet RS-485 Ethernet Media Converter SFP
DB15 to 100FX (RS-232, 422, 485 port to one 100Base-FX Media Converter)

Condição de ICS-105A: Novo em embalagem comercial

Garantia de ICS-105A: 12 meses direto com a Net Computadores

Cost-effective Solution for RS-232 / RS-422 / RS-485 to Ethernet Application
PLANET ICS-10x series Media Converter / Device Server can convert Serial RS-232 / RS-422 / RS-485 communication interface over Fast Ethernet networking. There are SC type and LC type connectors, and single-mode/multi-mode media for customers needs. Ethernet signal allows the two types of segments to connect easily, efficiently and inexpensively. The ICS-10x converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700 and MC-1500). It greatly saves time and expense for users and SIs without the need of replacing the existing serial equipment and software system.

Extending Distance
The ICS-10x extends the distance of deploying serial equipment and hosts. The selectable fiber-optic wires on the basis of distance are provided. Therefore, this product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.

Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.
Serial Interface

One RS-232 / 422 / 485 port to one 100Base-FX Media Converter
Cost-effective solution for RS-232 to Ethernet application
Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
Asynchronous serial data rates up to 921600bps

Ethernet Interface

Complies with IEEE 802.3u 100Base-FX standard
Choice of fiber-connector from SC / LC, multi-mode / single-mode fiber

Smart Functions

Standard TCP / IP interface and versatile operation modes
Software Protocol Supported: ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, Telnet server/client
Built-in IP-based Web interface for remote management
Serial operation mode selected via Web management
Pair connection mode for connecting two serial devices over a network
PLANET Smart Discovery utility automatically finds PLANET devices on the network
Firmware upgrade via HTTP protocol

Hardware

Compact size for easy Installation
- Standalone - Wall mountable or DIN-rail mounting (optional accessory)

- Co-work with PLANET MC family Media Chassis (MC-700/MC-1500/MC-1500R /MC-1500R48)

LED indicators for easy network diagnose
Reset button on the rear panel for reset to factory default

Maiores detalhes de ICS-105A no site do fabricante:
https://planetechusa.com/ics-105a-rs-485-over-fast-ethernet-media-converter/

Tags de ICS-105A: ICS-105A, ICS105A, RS-232 / RS-422 / RS-485 over Fast Ethernet Media Converter, ICS-105A RS-485 over Fast Ethernet Media Converter SPG, RS-232, RS-422, RS-485, RS232, RS422, RS485, PLANET Technology, =ICS-105A, PLANET Technology

ICS-105A Planet RS-485 Ethernet Media Converter SFP DB15 to 100FX (RS-232, 422, 485 port to one 100Base-FX Media Converter)

Condição de ICS-105A:
Novo em embalagem comercial

Garantia de ICS-105A:
12 meses direto com a Net Computadores

Remote Manageable
The ICS-10x enables the serial equipment to be connected via IP-based transmission. It also makes them able to connect to a TCP / IP networking immediately. The ICS-10x Web Smart media converter provides management through Web Interface. It supports application mode and serial operation mode, connecting alarm, IP address, etc. It helps the network administrators to reduce the amount of valuable time spending on detecting and locating network problems; otherwise, it requires visual inspection of cabling and equipment. For large networking environment, multiple connection options are available with the ICS-10x as well.
Serial Interface

One RS-232 / 422 / 485 port to one 100Base-FX Media Converter
Cost-effective solution for RS-232 to Ethernet application
Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
Asynchronous serial data rates up to 921600bps

Ethernet Interface

Complies with IEEE 802.3u 100Base-FX standard
Choice of fiber-connector from SC / LC, multi-mode / single-mode fiber

Smart Functions

Standard TCP / IP interface and versatile operation modes
Software Protocol Supported: ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, Telnet server/client
Built-in IP-based Web interface for remote management
Serial operation mode selected via Web management
Pair connection mode for connecting two serial devices over a network
PLANET Smart Discovery utility automatically finds PLANET devices on the network
Firmware upgrade via HTTP protocol
