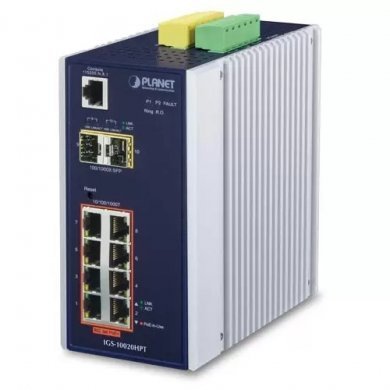

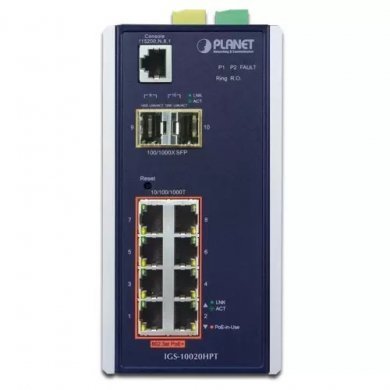

8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
R$ 7.800,00
à vista no Pix ou Boleto
ou R$ 8.210,53 em 1x no cartão (via site)
ou R$ 8.666,67 no cartão em até 10x sem juros (apenas na loja física)
R$ 7.800,00
à vista no Pix ou Boleto
R$ 8.210,53
em 1x no cartão (via site)
R$ 8.666,67 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 7.800,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses Assist. Técnica do Fabricante
NCM: 85176234
Condição de IGS-10020HPT: Novo em embalagem comercial
Garantia de IGS-10020HPT: 12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Version | 3 |
| Copper Ports | 8 10/100/1000BASET RJ45 autoMDI/MDIX ports |
| SFP/miniGBIC Slots | 2 1000BASESX/LX/BX SFP interfaces (Port9 and Port10) Compatible with 100BASEFX SFP |
| Console | 1 x RJ45toRS232 serial port (115200, 8, N, 1) |
| Switch Architecture | StoreandForward |
| Switch Fabric | 20Gbps/nonblocking |
| Throughput (packet per second) | 14.8Mpps@ 64Bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for fullduplex Back pressure for halfduplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DINrail kit and wallmount kit |

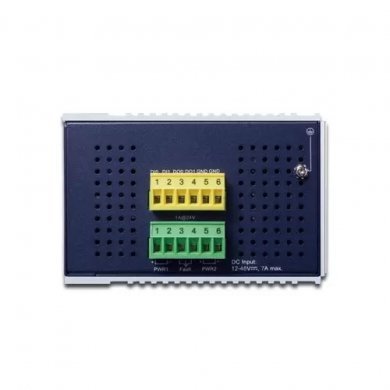

| Connector | Removable 6pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6pin terminal block for DI/DO interface Pin 1/2 for DI 1 e 2, Pin 3/4 for DO 1 |
Tags de IGS-10020HPT: IGS-10020HPT, IGS10020HPT, IGS 10020HPT, 8-Port 10/100/1000T 802.3af PoE + 2-Port 100/1000X SFP Managed Switch, PLANET Technology, IGS-10020PT, PLANET Technology
IGS-10020HPT Planet Switch Industrial 8 Portas IP30 SNMP 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
Condição de IGS-10020HPT:
Novo em embalagem comercial
Garantia de IGS-10020HPT:
12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Version | 3 |
| Copper Ports | 8 10/100/1000BASET RJ45 autoMDI/MDIX ports |
| SFP/miniGBIC Slots | 2 1000BASESX/LX/BX SFP interfaces (Port9 and Port10) Compatible with 100BASEFX SFP |
| Console | 1 x RJ45toRS232 serial port (115200, 8, N, 1) |
| Switch Architecture | StoreandForward |
| Switch Fabric | 20Gbps/nonblocking |
| Throughput (packet per second) | 14.8Mpps@ 64Bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for fullduplex Back pressure for halfduplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DINrail kit and wallmount kit |
| Connector | Removable 6pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6pin terminal block for DI/DO interface Pin 1/2 for DI 1 e 2, Pin 3/4 for DO 1 |
Tags de IGS-10020HPT: IGS-10020HPT, IGS10020HPT, IGS 10020HPT, 8-Port 10/100/1000T 802.3af PoE + 2-Port 100/1000X SFP Managed Switch, PLANET Technology, IGS-10020PT, PLANET Technology
