2 Portas SFP
R$ 5.369,00
à vista no Pix ou Boleto
ou R$ 5.650,58 em 1x no cartão (via site)
ou R$ 5.964,50 no cartão em até 10x sem juros (apenas na loja física)
R$ 5.369,00
à vista no Pix ou Boleto
R$ 5.650,58
em 1x no cartão (via site)
R$ 5.964,50 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 5.369,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses Assist. Técnica do Fabricante
NCM: 85176239
Condição de IGS-624HP: Novo em embalagem comercial
Garantia de IGS-624HP: 12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Copper Ports | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | Four ports with 802.3at PoE injector function (Port-1 to Port-4) |
| SFP Slots (Auto Detection) | Two 1000BASE-SX/LX/BX SFP interface (Port 5 to Port 6) Compatible with 100BASE-FX SFP |
| DIP Switch | Switch (default)/fiber redundant mode |

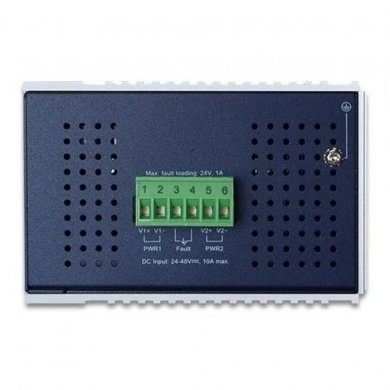

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ 24V DC |
| Power Requirements | 12~56V DC, 7A (max.) Redundant power with reverse polarity protection |
| Power Consumption | Max. 7.02 watts/24BTU (Ethernet Full Loading) Max. 130.6 watts/445BTU (Ethernet PoE Full Loading) |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 657g |
| Enclosure | IP40 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12Gbps |
| Throughput (packet per second) | 8.93Mpps@64bytes |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2( ), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 36 watts |
| PoE Power Budget (max.) | 60W@12V DC input 90W@24V DC input 120W@48V-56V DC input |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
| IGS-624HPT | Industrial 4-Port 10/100/1000T 802.3at PoE 2-Port 100/1000X SFP Ethernet Switch |
Tags de IGS-624HP: IGS-624HP, IGS 624HP, IGS624HP,, Swtich Planet IGS-624HP, Planet IGS-624HP, Switch Planet IGS-624HP, Switch Planet Industrial, Switch Industrial, Switch Planet IGS-624HP, PLANET Technology, PLANET Technology

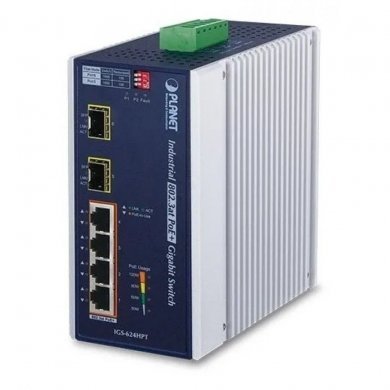

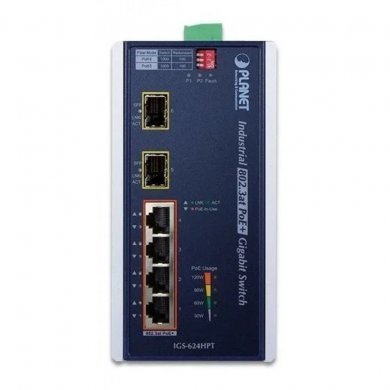

IGS-624HP Planet Switch Industrial 4 Portas POE Gigabit 2 Portas SFP
Condição de IGS-624HP:
Novo em embalagem comercial
Garantia de IGS-624HP:
12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Copper Ports | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | Four ports with 802.3at PoE injector (Port-1 to Port-4) |
| SFP Slots (Auto Detection) | Two 1000BASE-SX/LX/BX SFP interface (Port 5 to Port 6) Compatible with 100BASE-FX SFP |
| DIP Switch | Switch (default)/fiber redundant mode |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ 24V DC |
| Power Requirements | 12~56V DC, 7A (max.) Redundant power with reverse polarity protection |
| Power Consumption | Max. 7.02 watts/24BTU (Ethernet Full Loading) Max. 130.6 watts/445BTU (Ethernet PoE Full Loading) |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 657g |
| Enclosure | IP40 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12Gbps |
| Throughput (packet per second) | 8.93Mpps@64bytes |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2( ), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 36 watts |
| PoE Power Budget (max.) | 60W@12V DC input 90W@24V DC input 120W@48V-56V DC input |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
| IGS-624HPT | Industrial 4-Port 10/100/1000T 802.3at PoE 2-Port 100/1000X SFP Ethernet Switch |
Tags de IGS-624HP: IGS-624HP, IGS 624HP, IGS624HP,, Swtich Planet IGS-624HP, Planet IGS-624HP, Switch Planet IGS-624HP, Switch Planet Industrial, Switch Industrial, Switch Planet IGS-624HP, PLANET Technology, PLANET Technology
