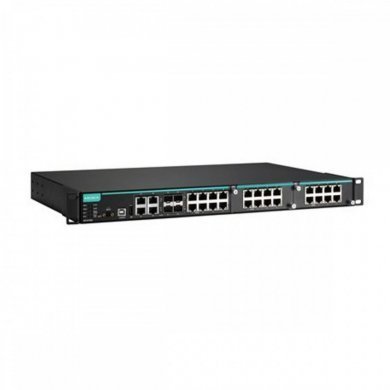

IKS-6728A-4GTXSFP-HV-T MOXA Switch modular Eth Ger. 8 10/100Baset(X) Poe+

IKS-6728A-4GTXSFP-HV-T MOXA Switch modular Eth Ger. 8 10/100Baset(X) Poe+ 4 Combo GigabitRj45/Sfp, Slots 2 Fast Eth Poe+

Condição de IKS-6728A-4GTXSFP-HV-T:
Novo em embalagem comercial

Garantia  de  IKS-6728A-4GTXSFP-HV-T:
12 meses direto com a Net Computadores

• 1 relay output with current carrying capacity of 1 A @ 24 VDC

• 8

• 4

• 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE , or 100Base SFP

• IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

• Back Pressure Flow Control
  BOOTP
  DDM
  DHCP Option 66/67/82
  DHCP Server/Client
  Flow control
  IPv4/IPv6
  LLDP
  Port Mirror
  RARP
  RMON
  SCP
  SMTP
  SNMP Inform
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP

• 802.1Q
  BPDU Filter
  BPDU Guard
  GMRP
  GVRP
  IGMP v1/v2/v3

• Link Aggregation
  MRP
  MSTP
  RSTP
  STP
  Turbo Chain
  Turbo Ring v1/v2
  V-ON

• Access control list
  Broadcast storm protection
  HTTPS/SSL
  MAB authentication
  NTP authentication
  Port Lock
  RADIUS
  SSH
  TACACS

• NTP Server/Client
  SNTP

• EtherNet/IP
  Modbus TCP
  PROFINET

• Ethernet-like MIB
  MIB-II
  P-BRIDGE MIB
  Q-BRIDGE MIB
  RMON MIB Groups 1, 2, 3, 9
  RSTP MIB

• 2048

• 9.6 KB

• 16 K

• 64

• 12 Mbits

• 4

• VID 1 to 4094

• USB Type A

• USB-serial console (Type B connector)

• 110/220 VAC

• 85 to 264 VAC

• 1.1/0.6 A @ 24/48 VDC
  0.46/0.31 A @ 110/220 VAC
  Note: These are the input current ratings for the device with the maximum number of modules installed.

• 26.4/28.8 W @ 24/48 VDC
  29.28/31.92 W @ 110/220 VAC
  Note: These are the power consumption ratings for the device with the maximum number of modules installed.

• IKS-6728A-PoE series: Maximum 720 W @ 48 VDC

• Supported

• Supported

• IP30

• 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

• 4100 g (9.05 lb)

• Rack mounting

• -40 to 75C (-40 to 167F)

• -40 to 85C (-40 to 185F)

• 5 to 95% (non-condensing)

• IEC 60068-2-32

• EN 55032/24

• CISPR 32, FCC Part 15B Class A

• IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• EN 50121-4

• ABS
  LR
  NK
  DNV

• EN 60950-1
  UL 60950-1

• IEC 60068-2-27

• IEC 60068-2-6

• 211,634 hrs

• Telcordia (Bellcore), GB

Tags de IKS-6728A-4GTXSFP-HV-T: , MOXA
