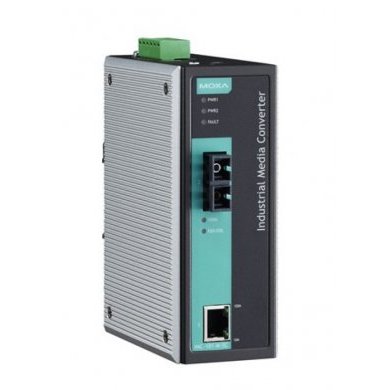

IMC-101-M-SC-T MOXA CONVERSOR DE MIDIA MULTIMODO SC

Name: IMC-101-M-SC-T MOXA CONVERSOR DE MIDIA MULTIMODO SC
Brand: MOXA
SKU: IMC-101-M-SC-T
Price: 5302.00 BRL
Availability: InStock

10/100Base-T(X) para 100Base-FX

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 5.302,00

à vista no Pix ou Boleto

ou R$ 5.580,66 em 1x no cartão (via site)

ou R$ 5.890,69 no cartão em até 10x sem juros (apenas na loja física)

R$ 5.302,00

à vista no Pix ou Boleto

R$ 5.580,66
em 1x no cartão (via site)

R$ 5.890,69 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176299

R$ 5.302,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176299

Cotação PJ mais de uma unidade

Indicar IMC-101-M-SC-T

IMC-101-M-SC-T MOXA CONVERSOR DE MIDIA MULTIMODO SC
10/100Base-T(X) para 100Base-FX

Condição de IMC-101-M-SC-T: Novo em embalagem comercial

Garantia de IMC-101-M-SC-T: 12 meses direto com a Net Computadores

The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101-s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60-C, and an extended operating temperature of -40 to 75-C. All IMC-101 series are subjected to a 100% burn-in test.

Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX
- Interface
RJ45 Ports	10/100BaseT(X)
Fiber Ports	100BaseFX (SC/ST connectors)
LED Indicators	PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port)
DIP Switches	100BaseFX Full/Half duplex selection, port alarm mask
Alarm Contact	One relay output with current carrying capacity of 1 A @ 24 VDC
- Optical Fiber

- Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
- Environmental Limits
Operating Temperature	Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
- Power Requirements
Input Voltage	12 to 45 VDC redundant inputs
Input Current	160 mA @ 24 VDC
Connection	Removable terminal block
Overload Current Protection	1.1 A
Reverse Polarity Protection	Present
- Standards and Certifications
Safety	UL 508, UL 60950-1
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
EMC	CE, FCC
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Marine	DNV, GL
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Green Product	RoHS, CRoHS, WEEE
- MTBF (mean time between failures)
Time	401,000 hrs
Database	MIL-HDBK-217F, GB 25C

Maiores detalhes de IMC-101-M-SC-T no site do fabricante:
http://www.industrialnetworking.com/pdf/IMC-101_Series.pdf

Tags de IMC-101-M-SC-T: IMC-101-M-SC-T, IMC-101-M-SC, IMC101, IMC-101, Moxa, Conversor de Mídia, conversor de mídia, conversor, IMC-101-M-SC-T V2.3.1, =IMC-101-M-SC-T, =IMC-101-M-SC-T, =IMC-101-M-SC-T, MOXA

IMC-101-M-SC-T MOXA CONVERSOR DE MIDIA MULTIMODO SC 10/100Base-T(X) para 100Base-FX
