Fibra Óptica / CONVERSORES DE MÍDIA / MULTIMODO / IMC-21-M-ST

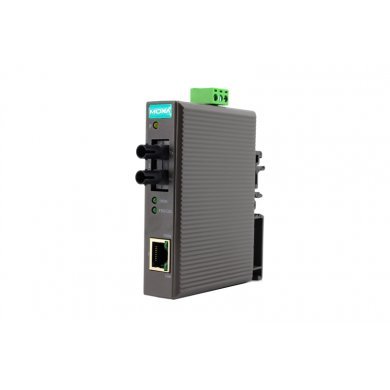

IMC-21-M-ST Moxa Conversor de Mídia Industrial Multi-Modo

Name: IMC-21-M-ST Moxa Conversor de Mídia Industrial Multi-Modo
Brand: MOXA
SKU: IMC-21-M-ST
Price: 3202.00 BRL
Availability: InStock

10/100BTX to 100BFX w/multi mode ST connector

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 3.202,00

à vista no Pix ou Boleto

ou R$ 3.370,19 em 1x no cartão (via site)

ou R$ 3.557,42 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.202,00

à vista no Pix ou Boleto

R$ 3.370,19
em 1x no cartão (via site)

R$ 3.557,42 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 3.202,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar IMC-21-M-ST

IMC-21-M-ST Moxa Conversor de Mídia Industrial Multi-Modo
10/100BTX to 100BFX w/multi mode ST connector

Condição de IMC-21-M-ST: Novo em embalagem comercial

Garantia de IMC-21-M-ST: 12 meses direto com a Net Computadores

The IMC-21 industrial media converters are entry-level 10/100BaseT(X) to 100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The IMC-21 is a cost-effective solution that runs on either a 12 to 45 VDC power input or 18 to 30 VAC power input. The IMC-21 can operate reliably in temperatures ranging from -10 to 60C, and the rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 is easy to mount on a DIN-Rail or in distribution boxes.

Features

Multi mode, single mode with SC or ST fiber connector
Link Fault Pass-Through (LFP) (media converters should work as a pair)
Power inputs: 12 to 45 VDC, 18 to 30 VAC (47-63 Hz)
-10 to 60C operating temperature range
DIP Switch to select FDX/HDX/10/100/Auto/Force

Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX
- Interface
RJ45 Ports	10/100BaseT(X)
Fiber Ports	100BaseFX (SC/ST connectors)
LED Indicators	PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port)
DIP Switches	100BaseFX Full/Half duplex selection, port alarm mask
Alarm Contact	One relay output with current carrying capacity of 1 A @ 24 VDC
- Optical Fiber

- Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
- Environmental Limits
Operating Temperature	Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
- Power Requirements
Input Voltage	12 to 45 VDC redundant inputs
Input Current	160 mA @ 24 VDC
Connection	Removable terminal block
Overload Current Protection	1.1 A
Reverse Polarity Protection	Present
- Standards and Certifications
Safety	UL 508, UL 60950-1
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
EMC	CE, FCC
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Marine	DNV, GL
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Green Product	RoHS, CRoHS, WEEE
- MTBF (mean time between failures)
Time	401,000 hrs
Database	MIL-HDBK-217F, GB 25C
