10/100BTX to 100BFX Single Mode SC
R$ 4.257,00
à vista no Pix ou Boleto
ou R$ 4.480,62 em 1x no cartão (via site)
ou R$ 4.729,55 no cartão em até 10x sem juros (apenas na loja física)
R$ 4.257,00
à vista no Pix ou Boleto
R$ 4.480,62
em 1x no cartão (via site)
R$ 4.729,55 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 4.257,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176294
Condição de IMC-21-S-SC: Novo em embalagem comercial
Garantia de IMC-21-S-SC: 12 meses direto com a Net Computadores
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port) |
| DIP Switches | 100BaseFX Full/Half duplex selection, port alarm mask |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| Optical Fiber | |
| Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g |
| Installation | DINRail mounting, wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: 40 to 75C (40 to 167F) |
| Storage Temperature | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Power Requirements | |
| Input Voltage | 12 to 45 VDC redundant inputs |
| Input Current | 160 mA @ 24 VDC |
| Connection | Removable terminal block |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| Standards and Certifications | |
| Safety | UL 508, UL 609501 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMC | CE, FCC |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 6100042 (ESD) Level 3, EN 6100043 (RS) Level 3, EN 6100044 (EFT) Level 3, EN 6100045 (Surge) Level 2, EN 6100046 (CS) Level 3, EN 6100048, EN 61000411 |
| Marine | DNV, GL |
| Shock | IEC 60068227 |
| Freefall | IEC 60068232 |
| Vibration | IEC 6006826 |
| Green Product | RoHS, CRoHS, WEEE |
| MTBF (mean time between failures) | |
| Time | 401,000 hrs |
| Database | MILHDBK217F, GB 25C |
Tags de IMC-21-S-SC: IMC-21-S-SC, IMC 21 S SC, IMC21SSC, conversor de midia moxa, conversor midia moxa, conversor moxa, IMC-21, IMC21, conversor de midia monomodo SC, MOXA

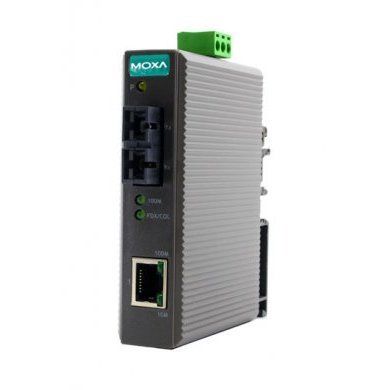

IMC-21-S-SC Moxa Conversor de Mídia Industrial 10/100BTX to 100BFX Single Mode SC
Condição de IMC-21-S-SC:
Novo em embalagem comercial
Garantia de IMC-21-S-SC:
12 meses direto com a Net Computadores
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port) |
| DIP Switches | 100BaseFX Full/Half duplex selection, port alarm mask |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| Optical Fiber | |
| Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g |
| Installation | DINRail mounting, wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: 40 to 75C (40 to 167F) |
| Storage Temperature | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Power Requirements | |
| Input Voltage | 12 to 45 VDC redundant inputs |
| Input Current | 160 mA @ 24 VDC |
| Connection | Removable terminal block |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| Standards and Certifications | |
| Safety | UL 508, UL 609501 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMC | CE, FCC |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 6100042 (ESD) Level 3, EN 6100043 (RS) Level 3, EN 6100044 (EFT) Level 3, EN 6100045 (Surge) Level 2, EN 6100046 (CS) Level 3, EN 6100048, EN 61000411 |
| Marine | DNV, GL |
| Shock | IEC 60068227 |
| Freefall | IEC 60068232 |
| Vibration | IEC 6006826 |
| Green Product | RoHS, CRoHS, WEEE |
| MTBF (mean time between failures) | |
| Time | 401,000 hrs |
| Database | MILHDBK217F, GB 25C |
Tags de IMC-21-S-SC: IMC-21-S-SC, IMC 21 S SC, IMC21SSC, conversor de midia moxa, conversor midia moxa, conversor moxa, IMC-21, IMC21, conversor de midia monomodo SC, MOXA
