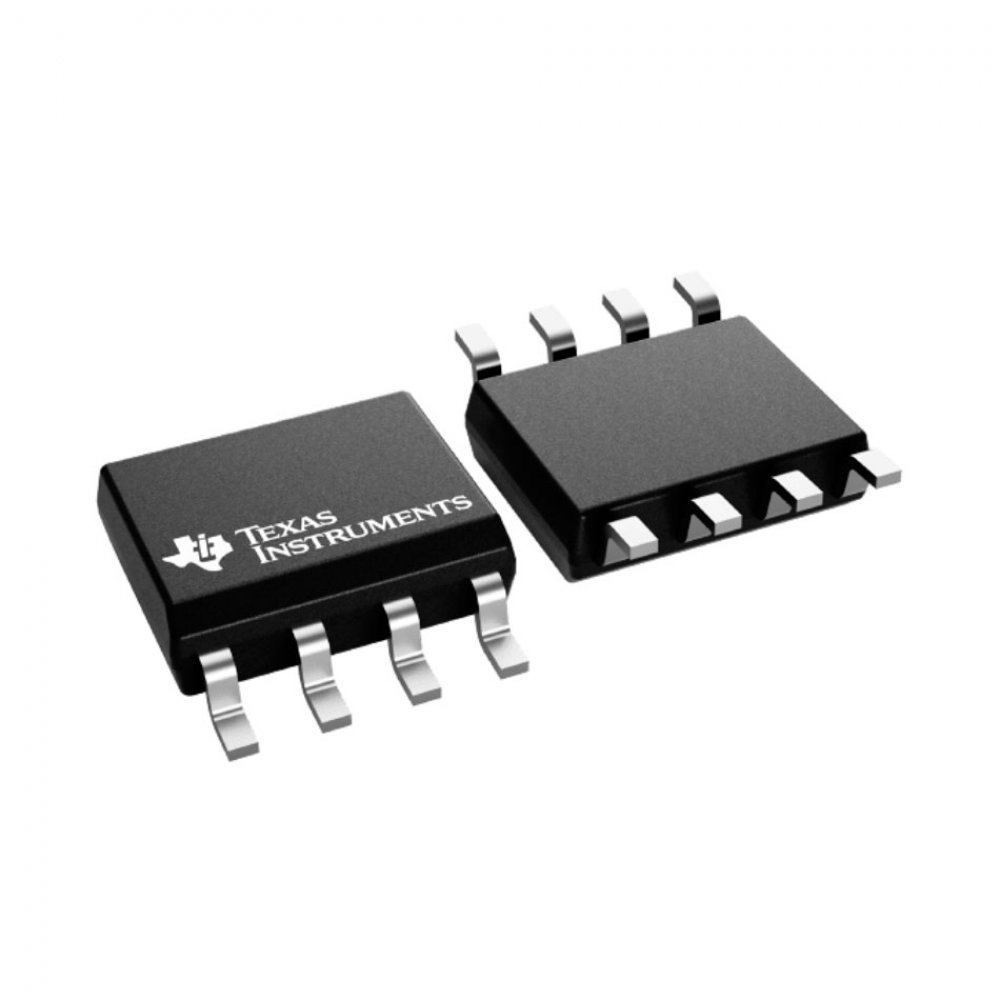

FET Input Low Power Instrumentation Amplifier
R$ 19,00
à vista no Pix ou Boleto
ou R$ 19,09 em 1x no cartão (via site)
ou R$ 20,15 no cartão em até 10x sem juros (apenas na loja física)
R$ 19,00
à vista no Pix ou Boleto
R$ 19,09
em 1x no cartão (via site)
R$ 20,15 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85412920
Condição de INA121UA/2K5: Novo em embalagem comercial
Garantia de INA121UA/2K5: 12 meses direto com a Net Computadores
| Manufacturer: | Texas Instruments |
| Product Category: | Instrumentation Amplifiers |
| Series: | INA121 |
| Number of Channels: | 1 Channel |
| 3 dB Bandwidth: | 50 kHz |
| SR Slew Rate: | 700 mV/us |
| CMRR Common Mode Rejection Ratio: | 96 dB |
| Ib Input Bias Current: | 50 pA |
| Vos Input Offset Voltage: | 500 uV |
| Supply Voltage Max: | 36 V |
| Supply Voltage Min: | 4.5 V |
| Operating Supply Current: | 450 uA |
| Minimum Operating Temperature: | 40 C |
| Maximum Operating Temperature: | 85 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC8 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Amplifier Type: | Instrumentation Amplifier |
| Brand: | Texas Instruments |
| Dual Supply Voltage: | / 15 V |
| en Input Voltage Noise Density: | 20 nV/sqrt Hz |
| Gain Error: | 0.005 % |
| Gain V/V: | 1 V/V to 10000 V/V |
| GBP Gain Bandwidth Product: | 600 kHz |
| Height: | 1.58 mm |
| INL Integral Nonlinearity: | 0.005 % |
| Length: | 4.9 mm |
| Maximum Input Resistance: | 1 TOhms |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 4.5 V to 36 V |
| Product: | Instrumentation Amplifiers |
| Product Type: | Instrumentation Amplifiers |
Maiores detalhes de INA121UA/2K5 no site do fabricante:
https://www.ti.com/product/INA121/part-details/INA121UA/2K5
Tags de INA121UA/2K5: INA121UA/2K5, INA121UA, INA121U, INA121UA, Ci 121U, ic INA121U, Instrumentation Amplifiers FET Input Low Power Instrumentation Amp, Texas Instruments
INA121UA/2K5 Ci instrumentation amplifier 1CH SOIC8 FET Input Low Power Instrumentation Amplifier
