Wireless / Fontes PoE e Acessórios / IPOE-162

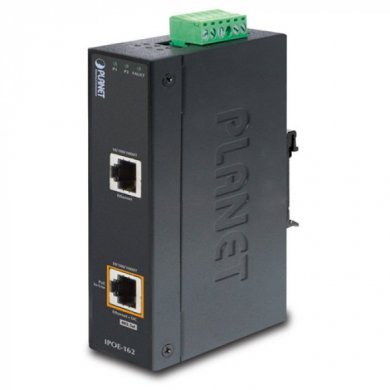

IPOE-162 Planet Injetor POE Gigabit (Mid-Span)

Name: IPOE-162 Planet Injetor POE Gigabit (Mid-Span)
Brand: PLANET Technology
SKU: IPOE-162
Price: 1950.00 BRL
Availability: InStock

Industrial IEEE 802.3at, 30 watts

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.950,00

à vista no Pix ou Boleto

ou R$ 2.052,63 em 1x no cartão (via site)

ou R$ 2.166,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.950,00

à vista no Pix ou Boleto

R$ 2.052,63
em 1x no cartão (via site)

R$ 2.166,67 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85176294

R$ 1.950,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar IPOE-162

IPOE-162 Planet Injetor POE Gigabit (Mid-Span)
Industrial IEEE 802.3at, 30 watts

Condição de IPOE-162: Novo em embalagem comercial

Garantia de IPOE-162: 12 meses Assist. Técnica do Fabricante

Hardware Specifications
Interface Data Input Port: 1 x RJ45 STP
PoE (Data Power) Output Port: 1 x RJ45 STP
Input power terminal block: 1
LED Indicator System: Power 1, Power 2, Fault (Green)
PoE Port: PoE in Use x 1 (Green)
Network Cable 10BaseT: UTP Cat. 3, 4, 5, up to 100m (328ft)
100BaseTX: UTP Cat. 3, 4, 5, up to 100m (328ft)
1000BaseT: UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA 568 100ohm STP (100m)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 473g
Unit Input Voltage 24 ~ 48V DC
24V AC
Power Consumption 30 watts max.
Number of device can be powered 1
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure,
Alarm relay current carry ability: 3A @ DC 30V
Enclosure IP30 slim type metal case
Power over Ethernet
PoE Standard IEEE 802.3at High Power over Ethernet / MidSpan PSE
PoE Power Output DC 56V / 30 watts
PoE Power supply Type MidSpan
Power Pin Assignment 4/5( ), 7/8()
Standards Conformance
Standards Compliance IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet enhancement standard
FCC FCC Part 15B Class A
CE EMI:
EN 55022
EN 6100032
EN 6100033

EMS:
EN 6100042 (ESD)
EN 6100043 (RS)
EN 6100044 (EFT)
EN 6100045 (Surge)
EN 6100046 (CS)
EN 6100048 (PFMF)
Stability Testing IEC60068232(Free Fall)
IEC60068227(Shock)
IEC6006826(Vibration)
Environment
Operating Temperature 40 ~ 75 degrees C
Storage Temperature 40 ~ 85 degrees C
Humidity 5 ~ 95% (noncondensing)
Ordering Information
IPOE162 Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (MidSpan, 30 watts)
