Rds(on) 0.023ohm
R$ 4,50
à vista no Pix ou Boleto
ou R$ 4,74 em 1x no cartão (via site)
ou R$ 5,00 no cartão em até 10x sem juros (apenas na loja física)
R$ 4,50
à vista no Pix ou Boleto
R$ 4,74
em 1x no cartão (via site)
R$ 5,00 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 4,50
à vista no pix
Condição de IRF7313TRPBF: Novo em embalagem comercial
Garantia de IRF7313TRPBF: 3 meses direto com a Net Computadores
| Manufacturer: | Infineon | |
| Product Category: | MOSFET | |
| RoHS: | ||
| Technology: | Si | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOIC-8 | |
| Transistor Polarity: | N-Channel | |
| Number of Channels: | 2 Channel | |
| Vds - Drain-Source Breakdown Voltage: | 30 V | |
| Id - Continuous Drain Current: | 6.5 A | |
| Rds On - Drain-Source Resistance: | 29 mOhms | |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V | |
| Vgs th - Gate-Source Threshold Voltage: | 1 V | |
| Qg - Gate Charge: | 22 nC | |
| Minimum Operating Temperature: | - 55 C | |
| Maximum Operating Temperature: | 150 C | |
| Pd - Power Dissipation: | 2 W | |
| Channel Mode: | Enhancement | |
| Packaging: | Reel | |
| Packaging: | Cut Tape | |
| Packaging: | MouseReel | |
| Brand: | Infineon / IR | |
| Configuration: | Dual | |
| Fall Time: | 17 ns | |
| Forward Transconductance - Min: | 14 S | |
| Height: | 1.75 mm | |
| Length: | 4.9 mm | |
| Product Type: | MOSFET | |
| Rise Time: | 8.9 ns | |
| Factory Pack Quantity: | 4000 | |
| Subcategory: | MOSFETs | |
| Transistor Type: | 2 N-Channel | |
| Typical Turn-Off Delay Time: | 26 ns | |
| Typical Turn-On Delay Time: | 8.1 ns | |
| Width: | 3.9 mm |
Tags de IRF7313TRPBF: IRF7313, IRF7313TRPBF, F7313, F7313T, IRF7313PBFTR-ND, IRF7313P, mosfet canal N 7A, mosfet N-CH 7A, Rds(on) 0.023ohm, Rdson 0.023ohm, mosfet dual canal N, IOR - International IOR Rectifier

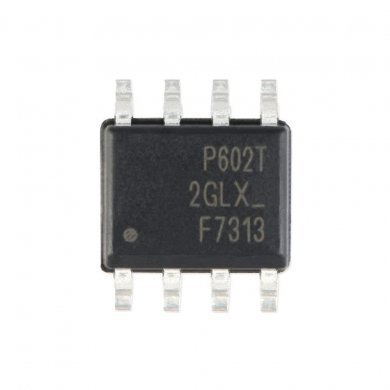

IRF7313TRPBF IOR Mosfet Dual N-Channel 30V 6.5A SOIC-8 Rds(on) 0.023ohm
Condição de IRF7313TRPBF:
Novo em embalagem comercial
Garantia de IRF7313TRPBF:
3 meses direto com a Net Computadores
| Manufacturer: | Infineon | |
| Product Category: | MOSFET | |
| RoHS: | ||
| Technology: | Si | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOIC-8 | |
| Transistor Polarity: | N-Channel | |
| Number of Channels: | 2 Channel | |
| Vds - Drain-Source Breakdown Voltage: | 30 V | |
| Id - Continuous Drain Current: | 6.5 A | |
| Rds On - Drain-Source Resistance: | 29 mOhms | |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V | |
| Vgs th - Gate-Source Threshold Voltage: | 1 V | |
| Qg - Gate Charge: | 22 nC | |
| Minimum Operating Temperature: | - 55 C | |
| Maximum Operating Temperature: | 150 C | |
| Pd - Power Dissipation: | 2 W | |
| Channel Mode: | Enhancement | |
| Packaging: | Reel | |
| Packaging: | Cut Tape | |
| Packaging: | MouseReel | |
| Brand: | Infineon / IR | |
| Configuration: | Dual | |
| Fall Time: | 17 ns | |
| Forward Transconductance - Min: | 14 S | |
| Height: | 1.75 mm | |
| Length: | 4.9 mm | |
| Product Type: | MOSFET | |
| Rise Time: | 8.9 ns | |
| Factory Pack Quantity: | 4000 | |
| Subcategory: | MOSFETs | |
| Transistor Type: | 2 N-Channel | |
| Typical Turn-Off Delay Time: | 26 ns | |
| Typical Turn-On Delay Time: | 8.1 ns | |
| Width: | 3.9 mm |
Tags de IRF7313TRPBF: IRF7313, IRF7313TRPBF, F7313, F7313T, IRF7313PBFTR-ND, IRF7313P, mosfet canal N 7A, mosfet N-CH 7A, Rds(on) 0.023ohm, Rdson 0.023ohm, mosfet dual canal N, IOR - International IOR Rectifier
