R$ 9,00
à vista no Pix ou Boleto
ou R$ 8,77 em 1x no cartão (via site)
ou R$ 9,26 no cartão em até 10x sem juros (apenas na loja física)
R$ 9,00
à vista no Pix ou Boleto
R$ 8,77
em 1x no cartão (via site)
R$ 9,26 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 9,00
à vista no pix
Condição de IRH8342: Novo em embalagem comercial
Garantia de IRH8342: 3 meses direto com a Net Computadores
Outros PNs para este item: IRFHS8342TRPBF, IRFHS8342, IRS8342, IRH8342,
| Manufacturer: | Infineon |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | PQFN 2x2 (DFN2020) |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 19 A |
| Rds On - Drain-Source Resistance: | 25 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 2.35 V |
| Qg - Gate Charge: | 4.2 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 2.1 W |
| Channel Mode: | Enhancement |
| Tradename: | StrongIRFET |
| Series: | N-Channel |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Infineon Technologies |
| Configuration: | Single |
| Fall Time: | 5 ns |
| Forward Transconductance - Min: | 18 S |
| Height: | 0.9 mm |
| Length: | 2 mm |
| Product Type: | MOSFET |
| Rise Time: | 15 ns |
Maiores detalhes de IRH8342 no site do fabricante:
https://www.infineon.com/dgdl/Infineon-IRFHS8342-DataSheet-v01_01-EN.pdf?fileId=
Tags de IRH8342: IRFHS8342TRPBF, IRFHS8342, IRS8342, IRH8342,, IOR - International IOR Rectifier

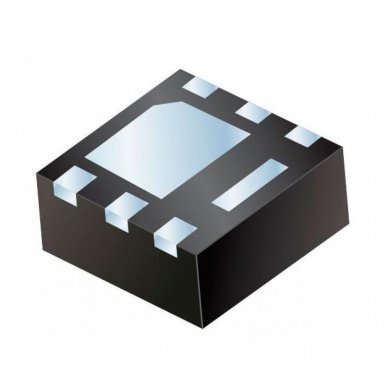

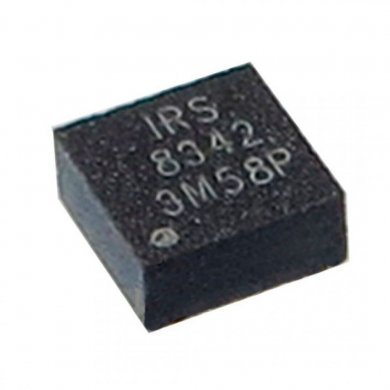

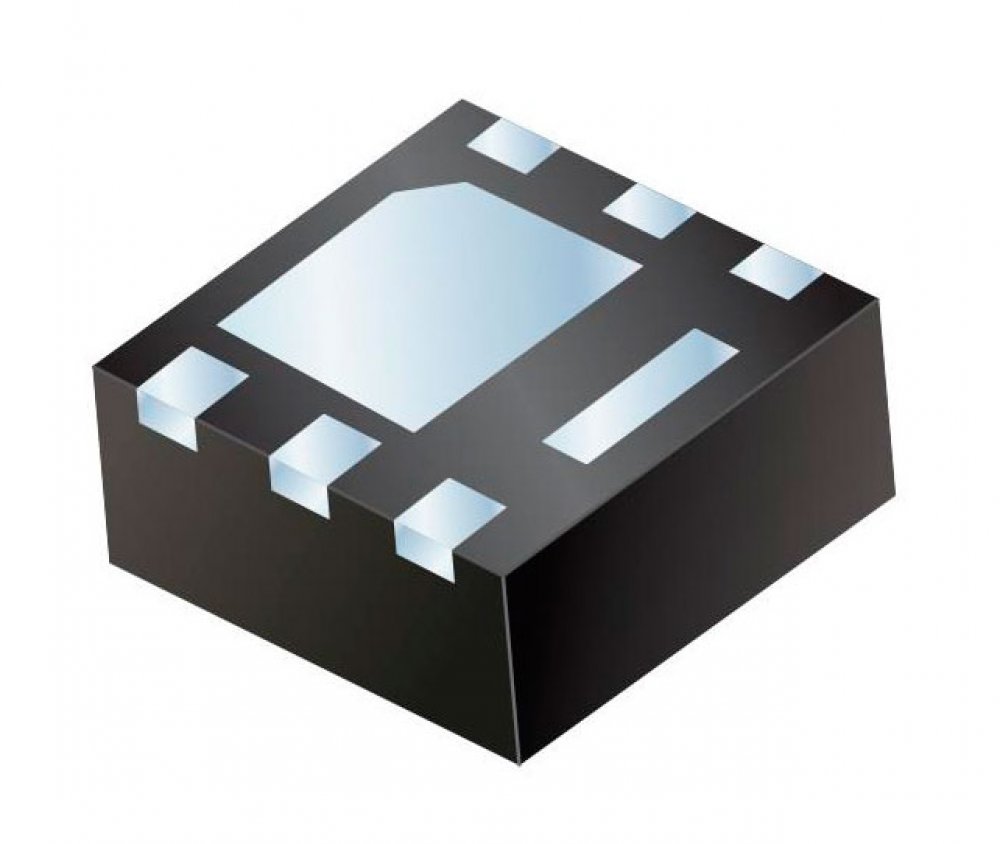

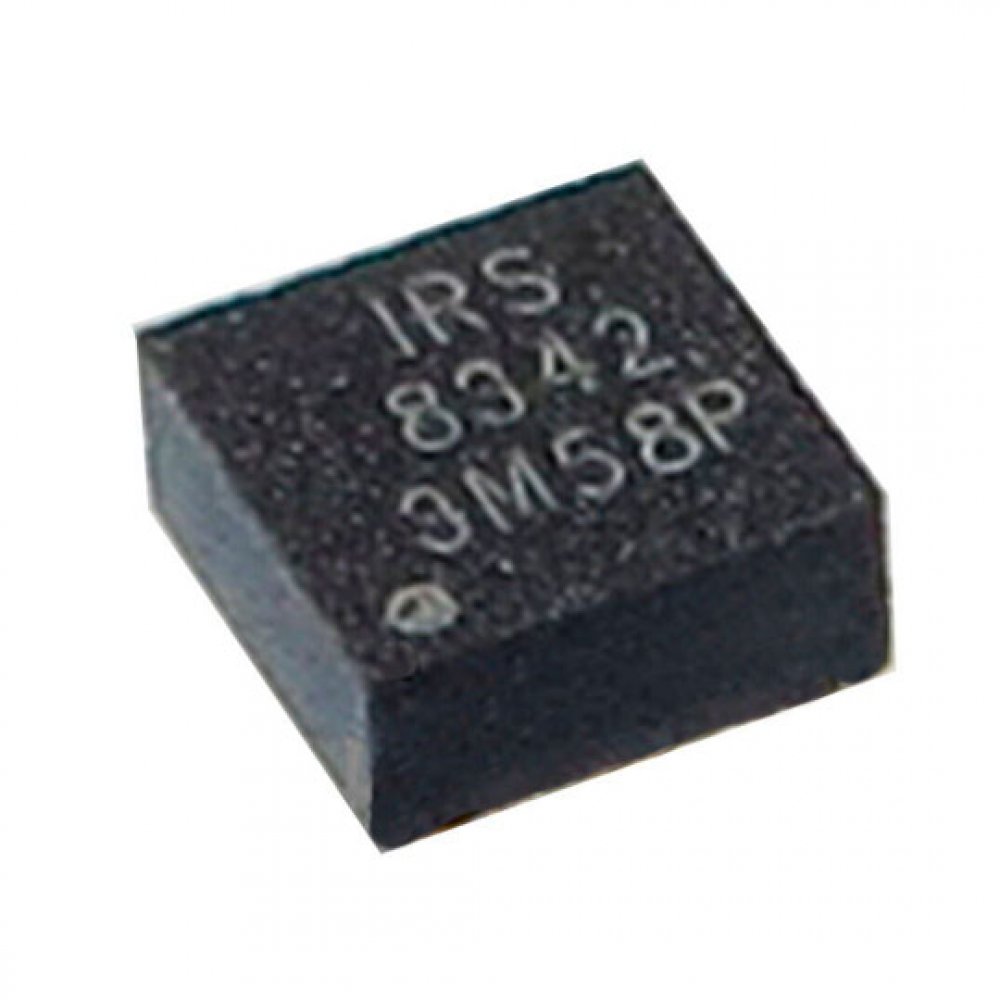

IRH8342 MOSFET IRS8342 IRH8342 N-CH 30V 19A DFN2020
Condição de IRH8342:
Novo em embalagem comercial
Garantia de IRH8342:
3 meses direto com a Net Computadores
Outros PNs para este componente: IRFHS8342TRPBF, IRFHS8342, IRS8342, IRH8342,
| Manufacturer: | Infineon |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | PQFN 2x2 (DFN2020) |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 19 A |
| Rds On - Drain-Source Resistance: | 25 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 2.35 V |
| Qg - Gate Charge: | 4.2 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 2.1 W |
| Channel Mode: | Enhancement |
| Tradename: | StrongIRFET |
| Series: | N-Channel |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Infineon Technologies |
| Configuration: | Single |
| Fall Time: | 5 ns |
| Forward Transconductance - Min: | 18 S |
| Height: | 0.9 mm |
| Length: | 2 mm |
| Product Type: | MOSFET |
| Rise Time: | 15 ns |
Maiores detalhes de IRH8342 no site do fabricante:
https://www.infineon.com/dgdl/Infineon-IRFHS8342-DataSheet-v01_01-EN.pdf?fileId=
Tags de IRH8342: IRFHS8342TRPBF, IRFHS8342, IRS8342, IRH8342,, IOR - International IOR Rectifier
