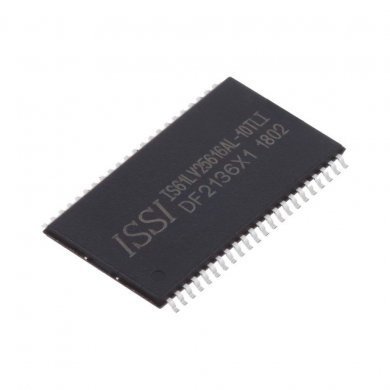

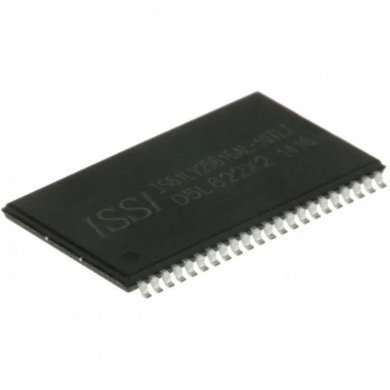

IS61LV25616AL Ci SRAM 4Mb Async 256Kx1610ns 3.3v 44Pin TSOP-44

Name: IS61LV25616AL Ci SRAM 4Mb Async 256Kx1610ns 3.3v 44Pin TSOP-44
Brand: ISSI
SKU: IS61LV25616AL
Price: 43.00 BRL
Availability: InStock

High Speed / Low Power

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 43,00

à vista no Pix ou Boleto

ou R$ 44,88 em 1x no cartão (via site)

ou R$ 47,38 no cartão em até 10x sem juros (apenas na loja física)

R$ 43,00

à vista no Pix ou Boleto

R$ 44,88
em 1x no cartão (via site)

R$ 47,38 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

R$ 43,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar IS61LV25616AL

IS61LV25616AL Ci SRAM 4Mb Async 256Kx1610ns 3.3v 44Pin TSOP-44
High Speed / Low Power

Condição de IS61LV25616AL: Novo em embalagem comercial

Garantia de IS61LV25616AL: 7 dias troca. Sem garantia após soldado

Outros PNs para este item: IS61LV25616AL-10TLI

DESCRIPTION:

- The ISSI IS61LV25616AL is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using ISSIs high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance andlow power consumption devices.
- When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.
- Easy memory expansion is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory. A data byte allows Upper Byte (UB) and Lower Byte (LB) access.
- The IS61LV25616AL is packaged in the JEDEC standard 44-pin 400-mil SOJ, 44-pin TSOP Type II, 44-pin LQFP and 48-pin Mini BGA (8mm x 10mm).

Manufacturer:	ISSI
Product Category:	SRAM

Memory Size:	4 Mbit
Organization:	256 k x 16
Access Time:	10 ns
Maximum Clock Frequency:	-
Interface Type:	Parallel
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3.135 V
Supply Current - Max:	15 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TSOP-44
Packaging:	Tray
Brand:	ISSI
Data Rate:	SDR
Moisture Sensitive:	Yes
Number of Ports:	1
Product Type:	SRAM
Series:	IS61LV25616AL

Maiores detalhes de IS61LV25616AL no site do fabricante:
https://www.issi.com/ww/pdf/61lv25616al.pdf

Tags de IS61LV25616AL: is61lv25616AL, IS61LV25616AL-10TLI, 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V SUPPLY, ISSI

IS61LV25616AL Ci SRAM 4Mb Async 256Kx1610ns 3.3v 44Pin TSOP-44 High Speed / Low Power

Condição de IS61LV25616AL:
Novo em embalagem comercial

Garantia de IS61LV25616AL:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente: IS61LV25616AL-10TLI

Manufacturer:	ISSI
Product Category:	SRAM

Memory Size:	4 Mbit
Organization:	256 k x 16
Access Time:	10 ns
Maximum Clock Frequency:	-
Interface Type:	Parallel
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3.135 V
Supply Current - Max:	15 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TSOP-44
Packaging:	Tray
Brand:	ISSI
Data Rate:	SDR
Moisture Sensitive:	Yes
Number of Ports:	1
Product Type:	SRAM
Series:	IS61LV25616AL
