ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim

ISW-801T - PLANET Technology
ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim
ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim
clique para ampliar
*As imagens podem ser ilustrativas
ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim
ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim
ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim

R$ 1.250,00

à vista no Pix ou Boleto

ou R$ 1.315,79 em 1x no cartão (via site)

ou R$ 1.388,89 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.250,00

à vista no Pix ou Boleto

R$ 1.315,79
em 1x no cartão (via site)

R$ 1.388,89 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses Assist. Técnica do Fabricante

NCM:
85176239

R$ 1.250,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85176239

ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim

Condição de ISW-801T:    Novo em embalagem comercial

Garantia  de  ISW-801T:     12 meses Assist. Técnica do Fabricante



Hardware Specifications

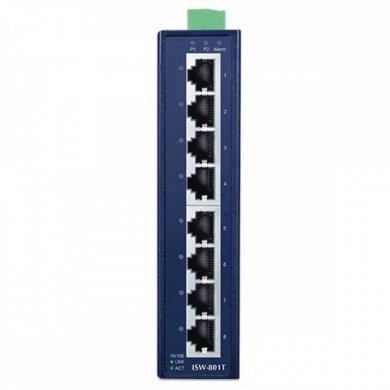

- 10/100BASE-TX Auto MDI/MDIX Ports: 8
- LED Indicators:
3 x LED for System and Power
- Green: DC Power 1
- Green: DC Power 2
- Green: Power Fault
1x LED for each Copper Port
- Green: 10/100 LNK/ACT
- Enclosure: IP30-rated metal case
- Dimensions (W x D x H): 135 x 87 x 32 mm
- Weight: 428g
- ESD Protection: 6KV DC
- EFT Protection: 6KV DC
- Power Requirements: 12~48V DC, redundant power with polarity reverse protection , 24V AC power support
- Power Consumption/Dissipation: 2.1 watts/7.1BTU
- Installation: DIN rail kit and wall-mount ear
- Alarm: Provides one relay output for power failureAlarm relay current carry ability: 3A @ DC 30V

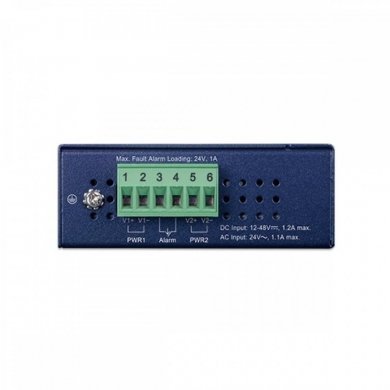

- Connector: Removable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Switch Specifications

- Switch Processing Scheme: Store-and-Forward
- Address Table: 1K
- Buffer Memory: Embedded 448K bits packet buffer
- Flow Control: Back pressure for half duplex,IEEE 802.3x pause frame for full duplex
- Switch Fabric: 1.6Gbps
- Throughput (packet per second): 1.19Mpps
- Network Cables: 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters

Standards Conformance

- Standards Compliance:
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
- Temperature:
Operating: -40~75 degrees C
Storage: -40~75 degrees C
- Humidity: Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
- Regulatory Compliance: FCC Part 15 Class A, CE
- Stability Testing:
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock-proof)
IEC60068-2-6 (vibration-proof)

Tags de ISW-801T: ISW-801T, ISW 801T, ISW801T, SW-801T, SW801T, SW 801T, Planet SW-801T, Switch Planet IGS-801M, Switch Planet Industrial SW-801T, Switch Industrial, Switch Planet 8 portas, Industrial, PLANET Technology, switch Planet Industrial, PLANET Technology

ISW-801T Planet Switch Industrial 8 portas 10/100TX Slim

Condição de ISW-801T:
Novo em embalagem comercial

Garantia  de  ISW-801T:
12 meses Assist. Técnica do Fabricante


Hardware Specifications
- 10/100BASE-TX Auto MDI/MDIX Ports: 8
- LED Indicators:
3 x LED for System and Power
- Green: DC Power 1
- Green: DC Power 2
- Green: Power Fault
1x LED for each Copper Port
- Green: 10/100 LNK/ACT
- Enclosure: IP30-rated metal case
- Dimensions (W x D x H): 135 x 87 x 32 mm
- Weight: 428g
- ESD Protection: 6KV DC
- EFT Protection: 6KV DC
- Power Requirements: 12~48V DC, redundant power with polarity reverse protection , 24V AC power support
- Power Consumption/Dissipation: 2.1 watts/7.1BTU
- Installation: DIN rail kit and wall-mount ear
- Alarm: Provides one relay output for power failureAlarm relay current carry ability: 3A @ DC 30V
- Connector: Removable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Switch Specifications

- Switch Processing Scheme: Store-and-Forward
- Address Table: 1K
- Buffer Memory: Embedded 448K bits packet buffer
- Flow Control: Back pressure for half duplex,IEEE 802.3x pause frame for full duplex
- Switch Fabric: 1.6Gbps
- Throughput (packet per second): 1.19Mpps
- Network Cables: 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters

Standards Conformance

- Standards Compliance:
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
- Temperature:
Operating: -40~75 degrees C
Storage: -40~75 degrees C
- Humidity: Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
- Regulatory Compliance: FCC Part 15 Class A, CE
- Stability Testing:
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock-proof)
IEC60068-2-6 (vibration-proof)

Tags de ISW-801T: ISW-801T, ISW 801T, ISW801T, SW-801T, SW801T, SW 801T, Planet SW-801T, Switch Planet IGS-801M, Switch Planet Industrial SW-801T, Switch Industrial, Switch Planet 8 portas, Industrial, PLANET Technology, switch Planet Industrial, PLANET Technology
