Industrial gerenciável 802.3at IP40
R$ 8.013,00
à vista no Pix ou Boleto
ou R$ 8.434,74 em 1x no cartão (via site)
ou R$ 8.903,33 no cartão em até 10x sem juros (apenas na loja física)
R$ 8.013,00
à vista no Pix ou Boleto
R$ 8.434,74
em 1x no cartão (via site)
R$ 8.903,33 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 8.013,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176234
Condição de IXT-900-1X1UP: Novo em embalagem comercial
Garantia de IXT-900-1X1UP: 12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| Copper Interface | 1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function support IEEE802.3bt PoE++ standard |
| Fiber Interface | 1x 10G/2.5G/1G/100BASE-X SFP+ interface |
| Reset Button | < 5 sec.: System reboot > 5 sec.: Factory default |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC |
| Enclosure | IP40 metal case |
| ESD Protection | 4KVDC Contact / 8KVDC Air |
| Installation | Wall-mount and DIN-rail kit installation |
| Dimensions (W x D x H) | 50 x 87 x 135mm |
| Weight | 659g |
| Power Requirement | 12~54V DC |
| Power Consumption (IXT-900-1X1UP) | 12VDC: 5.86W/20 BTU (No Loading) 70.8W/ 241.6 BTU (Full Loading) 54VDC: 6.3W/21.4 BTU (No Loading) / 102.7W/350.43 BTU (Full Loading) |
| LED Indicator | System: ?PWR 1/2, (Green) ?Alarm (Red) PoE: ?802.3bt PoE-in-Use (Green) ?802.3at PoE-in-Use (Amber) Per 10GBASE-T RJ45 Port: ?100/1G LINK/ACT (Green) ?2.5G/5G LINK/ACT (Green) ?10G LINK/ACT (Amber) Per 10GBASE-X SFP Port: ?100/1G LINK/ACT (Green) ?2.5G LINK/ACT (Green) ?10G LINK/ACT (Amber) |
| Transmission Specifications | |
| Processing Scheme | Store and Forward |
| Fabric | 40Gbps |
| Throughput (packet per second) | 29.76Mpps@64bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 9K |
| Shared Buffer | 12Mbits |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE Type-4 PSE Backward compatible with 802.3at PoE PSE |
| PoE Power Supply Type | 802.3bt End-span Mid-span Legacy Force |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6( ),4/5( ), 7/8(-) End-span: 1/2(-), 3/6( ) Mid-span: 4/5( ), 7/8(-) |
| PoE Power Budget | 95W |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port?s link status, speed, Auto-negotiation status, duplex mode, flow control status |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 256 VLAN groups, out of 4096 VLAN IDs |
| Bandwidth Control | Per port bandwidth control ?Ingress: 16~10,000,000Kbps ?Egress: 16~10,000,000Kbps |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: ?CoS/802.1p ?DSCP ?IP Precedence |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 500ms |
| Security Function | |
| Access Security | Remote management protocols support: SSH, Telnet, HTTP and HTTPs Protected ports |
| System Management | |
| Basic Management Interfaces | Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS Controller PLANET CloudViewerPro mobile app |
| Event Management | Remote syslog Local system log SNMP trap |
| SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 3411 SNMP-Frameworks-MIB LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3bz, 2.5G/5GBASE-T IEEE 802.3an, 10GBASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3ae 10GBASE-SR/LR IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP RFC 768 UDP RFC 2474 DSCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Tags de IXT-900-1X1UP: IXT-900-1X1UP, IXT 900 1X1UP, IXT9001X1UP, PoE, Ethernet Industrial, PoE Industrial, Switch Industrial Gerenciável, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, PoE Switch, PLANET Technology

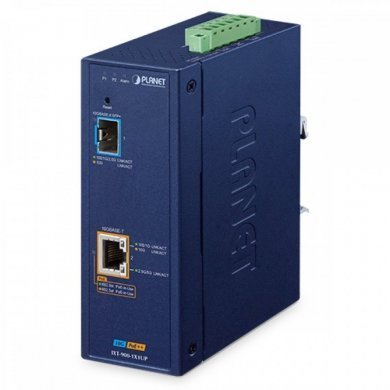

IXT-900-1X1UP Planet Switch 1x 10G/2.5G/1G/100BASE-X SFP+ POE Industrial gerenciável 802.3at IP40
Condição de IXT-900-1X1UP:
Novo em embalagem comercial
Garantia de IXT-900-1X1UP:
12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| Copper Interface | 1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X support IEEE802.3bt PoE++ standard |
| Fiber Interface | 1x 10G/2.5G/1G/100BASE-X SFP+ interface |
| Reset Button | < 5 sec.: System reboot > 5 sec.: Factory default |

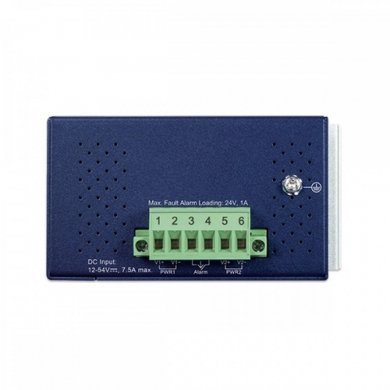

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC |
| Enclosure | IP40 metal case |
| ESD Protection | 4KVDC Contact / 8KVDC Air |
| Installation | Wall-mount and DIN-rail kit installation |
| Dimensions (W x D x H) | 50 x 87 x 135mm |
| Weight | 659g |
| Power Requirement | 12~54V DC |
| Power Consumption (IXT-900-1X1UP) | 12VDC: 5.86W/20 BTU (No Loading) 70.8W/ 241.6 BTU (Full Loading) 54VDC: 6.3W/21.4 BTU (No Loading) / 102.7W/350.43 BTU (Full Loading) |
| LED Indicator | System: -PWR 1/2, (Green) -Alarm (Red) PoE: -802.3bt PoE-in-Use (Green) -802.3at PoE-in-Use (Amber) Per 10GBASE-T RJ45 Port: -100/1G LINK/ACT (Green) -2.5G/5G LINK/ACT (Green) -10G LINK/ACT (Amber) Per 10GBASE-X SFP Port: -100/1G LINK/ACT (Green) -2.5G LINK/ACT (Green) -10G LINK/ACT (Amber) |
| Transmission Specifications | |
| Processing Scheme | Store and Forward |
| Fabric | 40Gbps |
| Throughput (packet per second) | 29.76Mpps@64bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 9K |
| Shared Buffer | 12Mbits |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE Type-4 PSE Backward compatible with 802.3at PoE PSE |
| PoE Power Supply Type | 802.3bt End-span Mid-span Legacy Force |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6( ),4/5( ), 7/8(-) End-span: 1/2(-), 3/6( ) Mid-span: 4/5( ), 7/8(-) |
| PoE Power Budget | 95W |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port-s link status, speed, Auto-negotiation status, duplex mode, flow control status |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 256 VLAN groups, out of 4096 VLAN IDs |
| Bandwidth Control | Per port bandwidth control -Ingress: 16~10,000,000Kbps -Egress: 16~10,000,000Kbps |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: -CoS/802.1p -DSCP -IP Precedence |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 500ms |
| Security Function | |
| Access Security | Remote management protocols support: SSH, Telnet, HTTP and HTTPs Protected ports |
| System Management | |
| Basic Management Interfaces | Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS Controller PLANET CloudViewerPro mobile app |
| Event Management | Remote syslog Local system log SNMP trap |
| SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 3411 SNMP-Frameworks-MIB LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3bz, 2.5G/5GBASE-T IEEE 802.3an, 10GBASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3ae 10GBASE-SR/LR IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP RFC 768 UDP RFC 2474 DSCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Tags de IXT-900-1X1UP: IXT-900-1X1UP, IXT 900 1X1UP, IXT9001X1UP, PoE, Ethernet Industrial, PoE Industrial, Switch Industrial Gerenciável, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, PoE Switch, PLANET Technology
