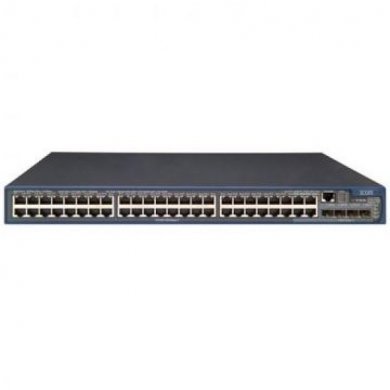

JD011A Switch HP Gigabit E4800-48G-PoE 44 Portas PoE 10/100/1000 Mbps RJ45 + 4 Portas Gigabit Combo (RJ45 ou Fibra), Standard Memory 256MB
Condição de JD011A:
Novo em embalagem comercial
Garantia de JD011A:
12 meses Assist. Técnica do Fabricante
Este Switch HP JD011A substitui o 3Com 3CRS48G-48P-91
Description:
The HP E4800G Switch Series is a Gigabit switch family that delivers outstanding security, reliability, and multi-service support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of medium- and small-sized enterprise networks. The family consists of Layer 2/3/4 Gigabit Ethernet switches that can accommodate the most demanding applications, providing resilient and secure connectivity and the latest traffic-prioritization technologies to optimize applications on converged networks. Designed for maximum flexibility, these switches are available with 24 or 48 Gigabit ports. Power over Ethernet (PoE) and non-PoE models are offered with optional 10 Gigabit expansion capability and small form-factor pluggable (SFP) mini-GBIC Gigabit combo ports for fiber flexibility. The all-SFP model with dual power supplies, for highest availability applications, allows for very flexible fiber with copper Gigabit connectivity.
•Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers. Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues. Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ. Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue guaranteed minimums. Bandwidth shaping: Rate limiting: provides per-port, ingress-based enforced bandwidth maximums. Guaranteed minimums: provi
•IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automated device discovery protocol provides easy mapping by network management applications. Remote configuration and management: is available through a secure Web browser or a command-line interface (CLI). Manager and operator privilege levels: enable read-only (operator) and read-write (manager) access on CLI and Web browser management interfaces. Management VLAN: segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP. Uni-Directional Link Detection (UDLD): monitors cable between two swit
•Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports. Dual-personality ality: includes four 10/100/1000 ports or SFP slots for optional fiber connectivity such as Gigabit-SX, -LX, -LH, or 100-FX. IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras. Optional 10 Gigabit Ethernet ports: allow the addition of 10 Gigabit Ethernet connections for uplinks or high-bandwidth server connections; flexibly supports
•IEEE 802.1D Spanning Tree Protocol (STP): provides redundant links preventing network loops. IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees. Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments. Device Link Detection Protocol (DLDP): monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks. Intelligent Resilient Framework.
| Form Factor |
1U height |
| Input Frequency |
50 / 60 Hz |
| Input Voltage |
100-240 VAC |
| Management features |
IMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management (serial RS-232C); SNMP Manager; Telnet; HTTPS; IEEE 802.3 Ethernet MIB |
| Manufacturer Warranty |
Lifetime, advance replacement, next business day, phone support, , |
| Ports |
2 module slots; 44 auto-negotiating 10/100/1000 PoE ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); 4 dual-personality 10/100/1000 PoE ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); Supports a maximum of 4 10-GbE ports |
| Product dimensions (W x D x H) |
16.5 x 17.4 x 1.7 in. |
| Technical Notes |
Supports a maximum of four 10-GbE ports |
| Warranty |
Lifetime, advance replacement, next business day, phone support, , |
| Weight ( Imperial ) |
14.3 lb. |
| Weight ( Metric ) |
6.49 kg |
Interfaces/Ports
| Number of Ports |
48 |
| Ethernet Port |
Yes |
| Fast Ethernet Port |
Yes |
| Gigabit Ethernet Port |
Yes |
| 10Gigabit Ethernet Port |
Not Applicable |
| Token Ring Port |
Not Applicable |
| LRE Port |
Not Applicable |
| DSL Port |
Not Applicable |
| Interfaces/Ports |
48 x RJ-45 10/100/1000Base-T PoE LAN
1 x RS-232C Console Management |
|
Media & Performance
| Broadband Transmission Speed |
Not Applicable |
| Broadband Transmission Technology |
Not Applicable |
| Powerline Transmission Speed |
Not Applicable |
| Powerline Transmission Standard |
Not Applicable |
| Forwarding/Filtering Rate |
142.9 Mpps |
| Switching Throughput |
192 Gbps |
|
I/O Expansions
| Number of Expansion Slots |
6 |
| Expansion Slots |
(4 Total) SFP (mini-GBIC) Shared
(2 Total) Expansion Slot |
|
Network & Communication
| Layer Support |
2 to 3 |
| Number of Stacks |
Not Applicable |
|
Management & Protocols
| Manageable |
Yes |
| Management |
- Intelligent Management Center
- Command Line Interface
- Web-Based Management
- Telnet
- DHCP
- SNMP v1, 2c
- RMON 1, 2, 3, 9
- QoS
- VLAN
|
|
Memory
| Standard Memory |
256 MB |
| Flash Memory |
32 MB |
|
Power Description
| Power Over Ethernet |
Yes |
| Input Voltage |
110 V AC
220 V AC |
| Input Voltage Range |
100 V AC to 240 V AC |
| Power Source |
Power Supply |
|
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Dimensions |
1.70" Height x 17.40" Width x 16.50" Depth |
| Weight (Approximate) |
14.31 lb |
|
Miscellaneous
| Green Compliance |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
|
