JMB363 Controladora JMicron JMB363 2 Portas SATA II e 1 Porta IDE, PCI E

Name: JMB363 Controladora JMicron JMB363 2 Portas SATA II e 1 Porta IDE, PCI E
Brand: JMicron
SKU: JMB363
Price: 123.00 BRL
Availability: InStock

Support PCI 2X mode / Support PCI native modes, Ultra ATA-133/IDE interface, Supports internal PHY,

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 123,00

à vista no Pix ou Boleto

ou R$ 128,46 em 1x no cartão (via site)

ou R$ 135,59 no cartão em até 10x sem juros (apenas na loja física)

R$ 123,00

à vista no Pix ou Boleto

R$ 128,46
em 1x no cartão (via site)

R$ 135,59 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar JMB363

JMB363 Controladora JMicron JMB363 2 Portas SATA II e 1 Porta IDE, PCI E
Support PCI 2X mode / Support PCI native modes, Ultra ATA-133/IDE interface, Supports internal PHY,

Condição de JMB363: Novo em embalagem comercial

Garantia de JMB363: 12 meses direto com a Net Computadores

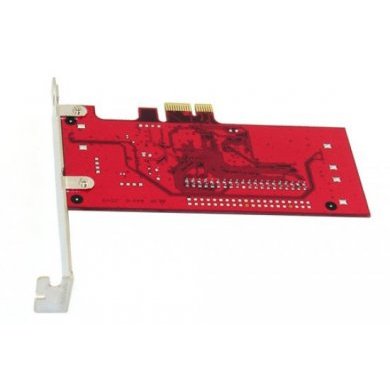

JMicron JMB363 SATA II & IDE PCI Express Card

The SATA PCI Express Card provides two-port SATA II and one-port Ultar ATA connectivity.This JMB363 chipset support both AHCI and Legacy IDE controller to increase system feasibility, including Native Command Queuing(NCQ), Hot Plugging, Programmable Output Swing Control to fit SATA II Gen2i and Gen2m (External SATA Connection, eSATA). It features PCI Express bus and Serial ATA II interface to express high performance storage devices.

PCI interface

33Mhz operation.
Support PCI 2X mode
Support PCI native modes.
Complies with PCI Local Bus Specification Revision 2.2

Ultra ATA-133/IDE interface:
Single channel master mode hard disk controller supporting two (four)enhanced IDE devices.
Redefined Bus Master Programming Interface for IDE controllers to support up to four busmasters in a single function.
Supports ATA PIO mode, Multi-word DMA-mode 2 drivers and UltraDMA-mode 6.
Extension to UltraDMA-133 interface for up to 133MB/sec transfer rate.
Complies with ATA/ATA-6

Serial ATA Interface
Complies with Serial ATA Specification Revision1.0
Supports internal PHY, with each PHY Supporting up two SATA devices
The S-ATA drive transfer rate is capable up to 150MB/s per channel.

Driver Support Window 98SE/ME/NT/2000/XP

Tags de JMB363: Controladora IDE, Controladora SATA, SATA 2 Canais, SATA PCi Express, Pci Express, PCI Express x1, Controladora PCI Express, JMB363, Jmicron, JMicrom, Controladora RAID, Placa Controladora, Controladora SAS, JMicron

JMB363 Controladora JMicron JMB363 2 Portas SATA II e 1 Porta IDE, PCI E Support PCI 2X mode / Support PCI native modes, Ultra ATA-133/IDE interface, Supports internal PHY,

Condição de JMB363:
Novo em embalagem comercial

Garantia de JMB363:
12 meses direto com a Net Computadores

33Mhz operation.
Support PCI 2X mode
Support PCI native modes.
Complies with PCI Local Bus Specification Revision 2.2

Ultra ATA-133/IDE interface:
Single channel master mode hard disk controller supporting two (four)enhanced IDE devices.
Redefined Bus Master Programming Interface for IDE controllers to support up to four busmasters in a single .
Supports ATA PIO mode, Multi-word DMA-mode 2 drivers and UltraDMA-mode 6.
Extension to UltraDMA-133 interface for up to 133MB/sec transfer rate.
Complies with ATA/ATA-6

Serial ATA Interface
Complies with Serial ATA Specification Revision1.0
Supports internal PHY, with each PHY Supporting up two SATA devices
The S-ATA drive transfer rate is capable up to 150MB/s per channel.

Driver Support Window 98SE/ME/NT/2000/XP
