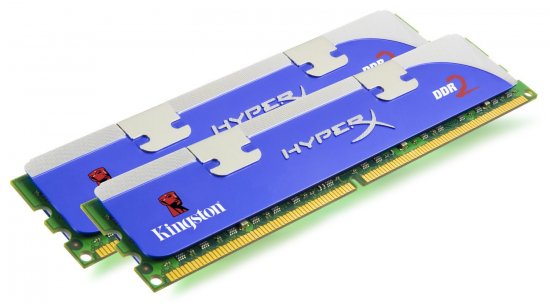

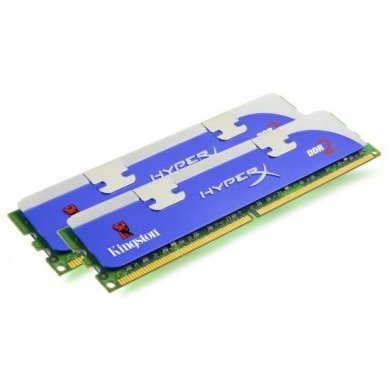

KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB

(2x 2GB) DDR2 1066MHz PC2-8500 CL5 240 Pinos

KHX8500D2K2/4G - Kingston
KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB
*As imagens podem ser ilustrativas
Memória Kingston HyperX Dual Channel 4GBMemória Kingston HyperX Dual Channel 4GB

R$ 916,00

à vista no Pix ou Boleto

ou R$ 963,17 em 1x no cartão (via site)

ou R$ 1.016,68 no cartão em até 10x sem juros (apenas na loja física)

R$ 916,00

à vista no Pix ou Boleto

R$ 963,17
em 1x no cartão (via site)

R$ 1.016,68 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
Lifetime Assist. Técnica do Fabricante

NCM:
84733042

Condição:
Novo em embalagem comercial

Garantia:
Lifetime Assist. Técnica do Fabricante

NCM: 84733042

KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB
(2x 2GB) DDR2 1066MHz PC2-8500 CL5 240 Pinos

Condição de KHX8500D2K2/4G:    Novo em embalagem comercial

Garantia  de  KHX8500D2K2/4G:     Lifetime Assist. Técnica do Fabricante



HyperX DDR2 modules are specifically engineered and designed to meet the rigorous requirements of PC enthusiasts. HyperX DDR2 offers faster speeds, lower latencies, higher data bandwidths and lower power consumption than DDR. HyperX is available in single and dual-channel memory kits.


KHX8500D2K2/4G
4GB (2GB 256M x 64-Bit x 2 pcs.)
PC2-8500 CL5 240-Pin DIMM Kit

DESCRIPTION:
Kingstons KHX8500D2K2/4G is a kit of two 256M x 64-bit 2GB (2048MB) DDR2-1066 CL5
SDRAM (Synchronous DRAM) memory modules, based on sixteen 128M x 8-bit DDR2 FBGA
components per module. Total kit capacity is 4GB (4096MB). Each module pair has been tested to
run at DDR2- 1066MHz at a latency timing of 5-5-5-15 at 2.2V. The SPD is programmed to JEDEC
standard latency 800Mhz timing of 5-5-5-18 at 1.8V. Each 240-pin DIMM uses gold contact fingers
and requires +1.8V. The electrical and mechanical specifications are as follows:

FEATURES:
Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V
Double-data-rate architecture; two data transfers per clock cycle
Bidirectional data strobe(DQS)
Differential clock inputs(CK and CK)
DLL aligns DQ and DQS transition with CK transition
Programmable Read latency 5 (clock)
Burst Length: 4, 8 (Interleave/nibble sequential)
Programmable Burst type (sequential & interleave)
Timing Reference: 5-5-5-18 at +1.8V / 5-5-5-15 at +2.2V
Edge aligned data output, center aligned data input
Auto & Self refresh, 7.8us refresh interval (8K/64ms refresh)
Serial presence detect with EEPROM
High Performance Heat Spreader
PCB : Height 1.180” (30.00mm), double sided component

PERFORMANCE:
Clock Cycle Time (tCK) CL=5 2.5ns (min.) / 8ns (max.)
Row Cycle Time (tRC) 51.5ns (min.)
Refresh to Active/Refresh Command Time (tRFC) 127.5ns
Row Active Time (tRAS) 39ns (min.) / 70,000ns (max.)
Single Power Supply of +1.8V (+/- .1V)
Power 1.584 W (operating per module)
UL Rating 94 V - 0
Operating Temperature 0oC to 55oC
Storage Temperature -55oC to +125oC




Maiores detalhes de KHX8500D2K2/4G no site do fabricante:
http://www.valueram.com/datasheets/KHX8500D2K2_4G.pdf


Vídeo de KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB



Tags de KHX8500D2K2/4G: KHX8500D2K2/4G, KHX8500D2K2, KHX8500D2K2-4G, Kingston

KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB (2x 2GB) DDR2 1066MHz PC2-8500 CL5 240 Pinos

Condição de KHX8500D2K2/4G:
Novo em embalagem comercial

Garantia  de  KHX8500D2K2/4G:
Lifetime Assist. Técnica do Fabricante


HyperX DDR2 modules are specifically engineered and designed to meet the rigorous requirements of PC enthusiasts. HyperX DDR2 offers faster speeds, lower latencies, higher data bandwidths and lower power consumption than DDR. HyperX is available in single and dual-channel memory kits.


KHX8500D2K2/4G
4GB (2GB 256M x 64-Bit x 2 pcs.)
PC2-8500 CL5 240-Pin DIMM Kit

DESCRIPTION:
Kingstons KHX8500D2K2/4G is a kit of two 256M x 64-bit 2GB (2048MB) DDR2-1066 CL5
SDRAM (Synchronous DRAM) memory modules, based on sixteen 128M x 8-bit DDR2 FBGA
components per module. Total kit capacity is 4GB (4096MB). Each module pair has been tested to
run at DDR2- 1066MHz at a latency timing of 5-5-5-15 at 2.2V. The SPD is programmed to JEDEC
standard latency 800Mhz timing of 5-5-5-18 at 1.8V. Each 240-pin DIMM uses gold contact fingers
and requires +1.8V. The electrical and mechanical specifications are as follows:

FEATURES:
Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V
Double-data-rate architecture; two data transfers per clock cycle
Bidirectional data strobe(DQS)
Differential clock inputs(CK and CK)
DLL aligns DQ and DQS transition with CK transition
Programmable Read latency 5 (clock)
Burst Length: 4, 8 (Interleave/nibble sequential)
Programmable Burst type (sequential & interleave)
Timing Reference: 5-5-5-18 at +1.8V / 5-5-5-15 at +2.2V
Edge aligned data output, center aligned data input
Auto & Self refresh, 7.8us refresh interval (8K/64ms refresh)
Serial presence detect with EEPROM
High Performance Heat Spreader
PCB : Height 1.180” (30.00mm), double sided component

PERFORMANCE:
Clock Cycle Time (tCK) CL=5 2.5ns (min.) / 8ns (max.)
Row Cycle Time (tRC) 51.5ns (min.)
Refresh to Active/Refresh Command Time (tRFC) 127.5ns
Row Active Time (tRAS) 39ns (min.) / 70,000ns (max.)
Single Power Supply of +1.8V (+/- .1V)
Power 1.584 W (operating per module)
UL Rating 94 V - 0
Operating Temperature 0oC to 55oC
Storage Temperature -55oC to +125oC




Maiores detalhes de KHX8500D2K2/4G no site do fabricante:
http://www.valueram.com/datasheets/KHX8500D2K2_4G.pdf


Vídeo de KHX8500D2K2/4G Memória Kingston HyperX Dual Channel 4GB



Tags de KHX8500D2K2/4G: KHX8500D2K2/4G, KHX8500D2K2, KHX8500D2K2-4G, Kingston
