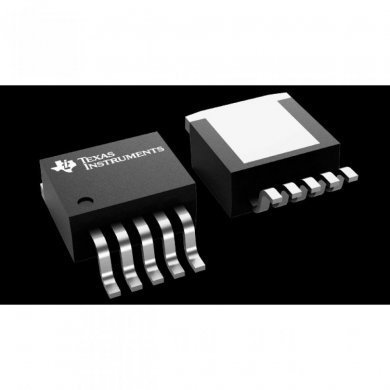

LM2592HVS-5.0 Power Converter 5V 2A Step Down Voltage Regulator

Name: LM2592HVS-5.0 Power Converter 5V 2A Step Down Voltage Regulator
Brand: Texas Instruments
SKU: LM2592HVS-5.0
Price: 71.00 BRL
Availability: InStock

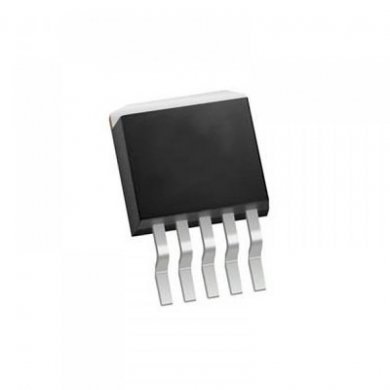

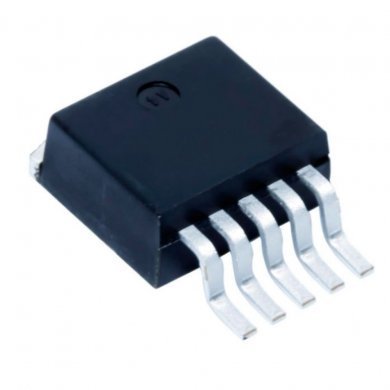

TO-263-7

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 71,00

à vista no Pix ou Boleto

ou R$ 74,21 em 1x no cartão (via site)

ou R$ 78,33 no cartão em até 10x sem juros (apenas na loja física)

R$ 71,00

à vista no Pix ou Boleto

R$ 74,21
em 1x no cartão (via site)

R$ 78,33 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 71,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre

Cotação PJ mais de uma unidade

Indicar LM2592HVS-5.0

LM2592HVS-5.0 Power Converter 5V 2A Step Down Voltage Regulator
TO-263-7

Condição de LM2592HVS-5.0: Novo em embalagem comercial

Garantia de LM2592HVS-5.0: 3 meses direto com a Net Computadores

The LM2592HV series of regulators are monolithic integrated circuits that provide all the active s for a step-down (buck) switching regulator, capable of driving a 2-A load with excellent line and load regulation.

These devices are available in fixed output voltages of 3.3 V, 5 V, and an adjustable output version. This series of switching regulators is similar to the LM2593HV, but without some of the supervisory and control features of the latter. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, improved line and load specifications, and a fixed-frequency oscillator.

The LM2592HV operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-pin package with several different lead bend options, and a 5-pin surface mount package.

Features
1- 5V Output Version
- Adjustable Version Output Voltage Range: 1.2 V to 57 V 4% Maximum Over Line and Load Conditions
- 2-A Output Load Current

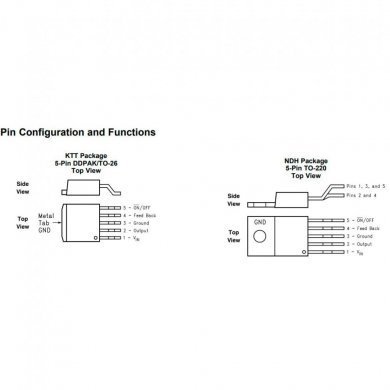

- Available in 5-Pin Package
- Input Voltage Range up to 60V
- 150-kHz Fixed Frequency Internal Oscillator
- ON and OFF Control
- Low Power Standby Mode, IQ Typically 90 A
- High Efficiency
- Thermal Shutdown and Current-Limit Protection
Applications

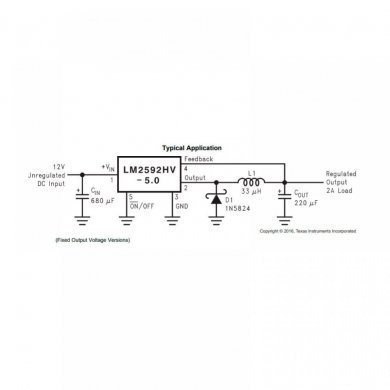

- Simple High-Efficiency Step-Down (Buck) Regulators
- Efficient Preregulator for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converters

Maiores detalhes de LM2592HVS-5.0 no site do fabricante:
https://www.ti.com/lit/ds/symlink/lm2592hv.pdf?ts=1651351126245&ref_url=https%25
