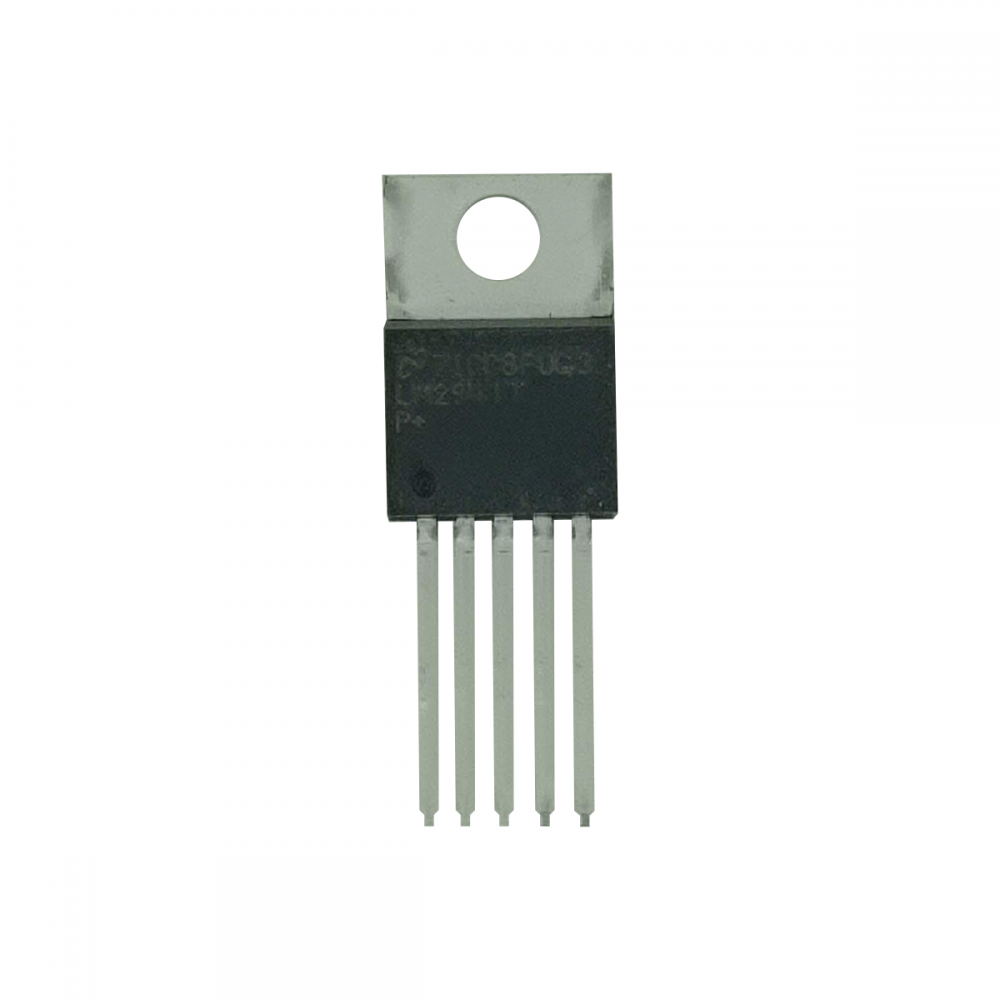

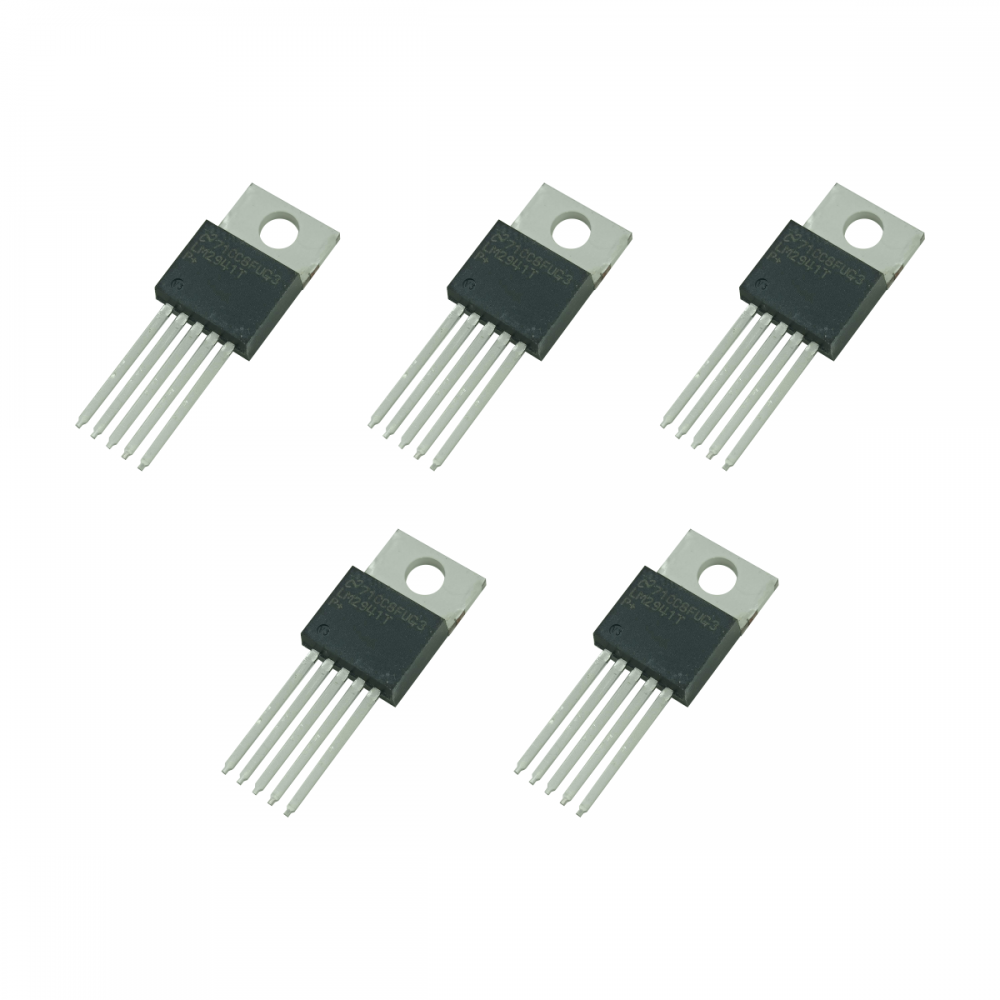

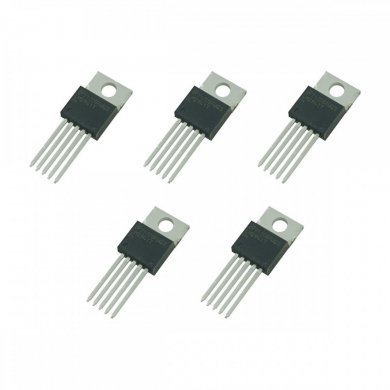

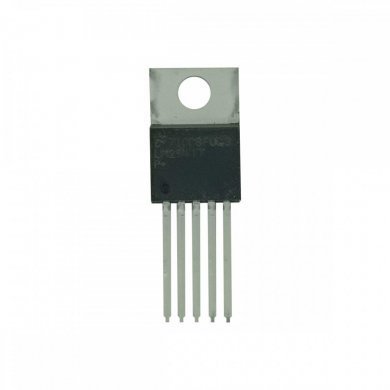

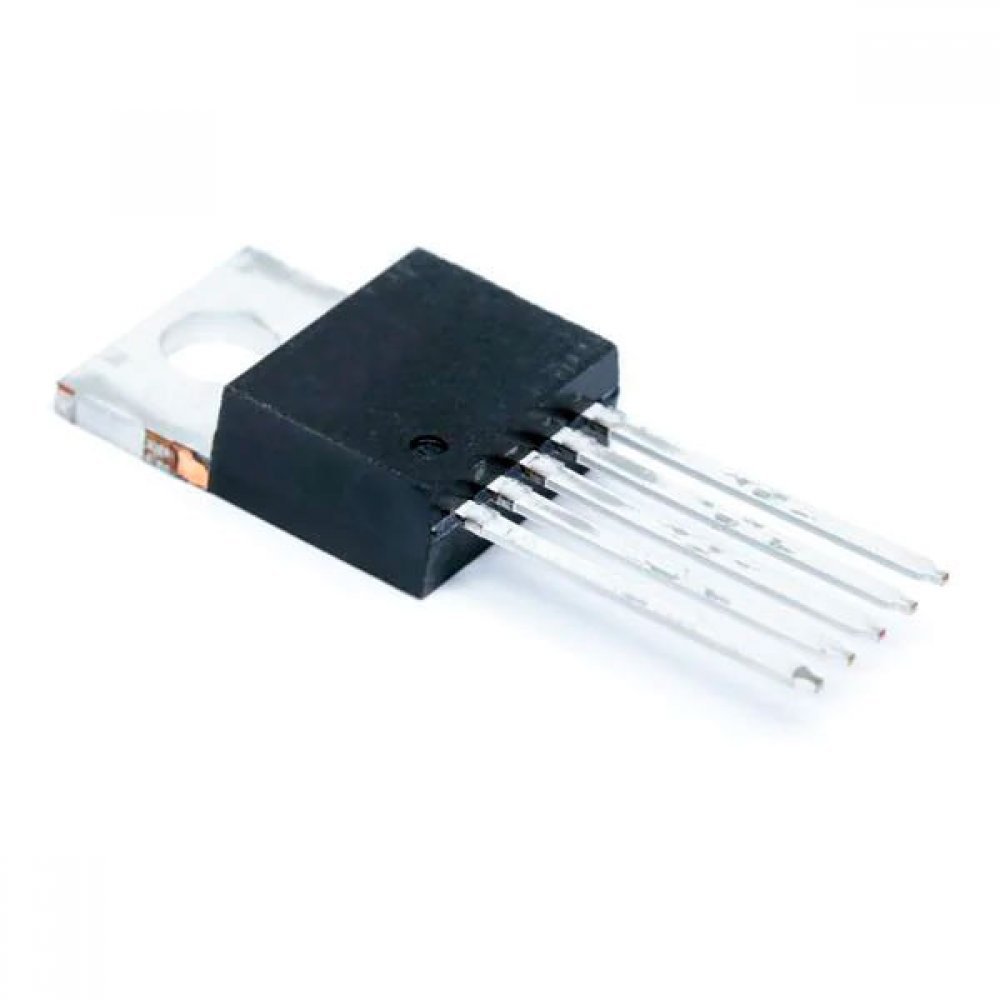

5-TO-220 (ORIGINAL TEXAS INSTRUMENTS) (Kit com 5 unidades)
R$ 59,00
à vista no Pix ou Boleto
ou R$ 61,39 em 1x no cartão (via site)
ou R$ 64,80 no cartão em até 10x sem juros (apenas na loja física)
R$ 59,00
à vista no Pix ou Boleto
R$ 61,39
em 1x no cartão (via site)
R$ 64,80 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 59,00
à vista no pix
Condição de LM2941T-KIT5: Novo em embalagem comercial
Garantia de LM2941T-KIT5: 3 meses direto com a Net Computadores
| Manufacturer: | Texas Instruments |
| Product Category: | LDO Voltage Regulators |
| RoHS: | N |
| Mounting Style: | Through Hole |
| Package / Case: | TO-220-5 |
| Output Voltage: | 5 V to 20 V |
| Output Current: | 1 A |
| Number of Outputs: | 1 Output |
| Polarity: | Positive |
| Quiescent Current: | 15 mA |
| Input Voltage, Min: | - 15 V |
| Input Voltage, Max: | 26 V |
| Output Type: | Adjustable |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 125 C |
| Dropout Voltage: | 500 mV |
| Series: | LM2941 |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Dropout Voltage - Max: | 0.2 V at 100 mA, 0.8 V at 1 A |
| Ib - Input Bias Current: | 10 mA |
| Line Regulation: | 10 mV/V |
| Load Regulation: | 10 mV/V |
| Operating Supply Current: | 10 mA |
| Operating Temperature Range: | - 4 |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Reference Voltage: | 1.313 V |
Tags de LM2941T-KIT5: LM2941-T, LM2941, LM2941T, LM2941S, LM2941C, LM2941T-KIT5, Texas Instruments
LM2941T-KIT5 REGULADOR AJUSTAVEL DE TENSÃO 1A 26V (Kit 5) 5-TO-220 (ORIGINAL TEXAS INSTRUMENTS) (Kit com 5 unidades)
Condição de LM2941T-KIT5:
Novo em embalagem comercial
Garantia de LM2941T-KIT5:
3 meses direto com a Net Computadores
| Manufacturer: | Texas Instruments |
| Product Category: | LDO Voltage Regulators |
| RoHS: | N |
| Mounting Style: | Through Hole |
| Package / Case: | TO-220-5 |
| Output Voltage: | 5 V to 20 V |
| Output Current: | 1 A |
| Number of Outputs: | 1 Output |
| Polarity: | Positive |
| Quiescent Current: | 15 mA |
| Input Voltage, Min: | - 15 V |
| Input Voltage, Max: | 26 V |
| Output Type: | Adjustable |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 125 C |
| Dropout Voltage: | 500 mV |
| Series: | LM2941 |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Dropout Voltage - Max: | 0.2 V at 100 mA, 0.8 V at 1 A |
| Ib - Input Bias Current: | 10 mA |
| Line Regulation: | 10 mV/V |
| Load Regulation: | 10 mV/V |
| Operating Supply Current: | 10 mA |
| Operating Temperature Range: | - 4 |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Reference Voltage: | 1.313 V |
Tags de LM2941T-KIT5: LM2941-T, LM2941, LM2941T, LM2941S, LM2941C, LM2941T-KIT5, Texas Instruments
