original Texas Instruments
R$ 3,50
à vista no Pix ou Boleto
ou R$ 3,68 em 1x no cartão (via site)
ou R$ 3,89 no cartão em até 10x sem juros (apenas na loja física)
R$ 3,50
à vista no Pix ou Boleto
R$ 3,68
em 1x no cartão (via site)
R$ 3,89 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 3,50
à vista no pix
Condição de LM324D: Novo em embalagem comercial
Garantia de LM324D: 3 meses direto com a Net Computadores
| Manufacturer: | Texas Instruments |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-14 |
| Number of Channels: | 4 Channel |
| Supply Voltage - Max: | 32V |
| GBP - Gain Bandwidth Product: | 1.2 MHz |
| Output Current per Channel: | 20 mA |
| SR - Slew Rate: | 500 mV/us |
| Vos - Input Offset Voltage: | 7 mV |
| Supply Voltage - Min: | 3 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | 70 C |
| Ib - Input Bias Current: | 250 nA |
| Operating Supply Current: | 1.4 mA |
| Shutdown: | No Shutdown |
| CMRR - Common Mode Rejection Ratio: | 80 dB |
| en - Input Voltage Noise Density: | 35 nV/sqrt Hz |
| Series: | LM324 |
| Packaging: | Tube |
| Amplifier Type: | High Gain Amplifier |
| Brand: | Texas Instruments |
| Dual Supply Voltage: | /- 3 V, /- 5 V, /- 9 V |
| Features: | Standard Amps |
| Height: | 1.58 mm |
| Input Type: | Rail-to-Rail |
| Length: | 8.65 mm |
| Maximum Dual Supply Voltage: | /- 16 V |
| Minimum Dual Supply Voltage: | /- 1.5 V |
| Operating Supply Voltage: | 3 V to 32 V, /- 1.5 V to /- 16 V |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
Tags de LM324D: LM324D, LM324, LM324 SMD, LM324N, Texas Instruments

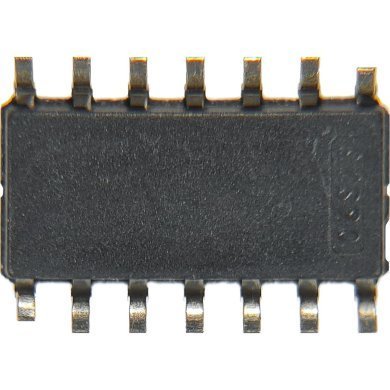

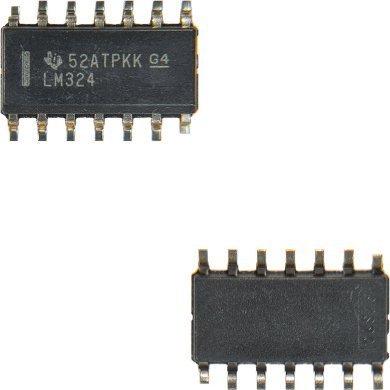

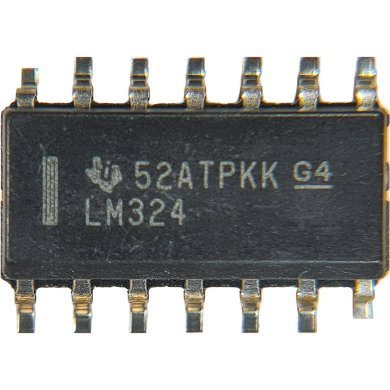

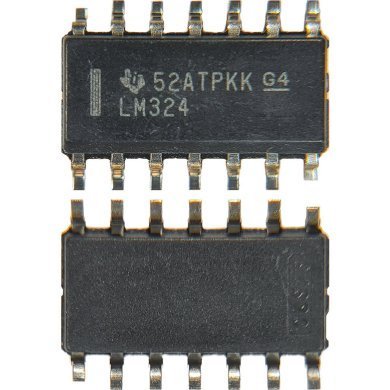

LM324D LM324 SMD SOIC-14 amplificador operacional 4 canais original Texas Instruments
Condição de LM324D:
Novo em embalagem comercial
Garantia de LM324D:
3 meses direto com a Net Computadores
| Manufacturer: | Texas Instruments |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-14 |
| Number of Channels: | 4 Channel |
| Supply Voltage - Max: | 32V |
| GBP - Gain Bandwidth Product: | 1.2 MHz |
| Output Current per Channel: | 20 mA |
| SR - Slew Rate: | 500 mV/us |
| Vos - Input Offset Voltage: | 7 mV |
| Supply Voltage - Min: | 3 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | 70 C |
| Ib - Input Bias Current: | 250 nA |
| Operating Supply Current: | 1.4 mA |
| Shutdown: | No Shutdown |
| CMRR - Common Mode Rejection Ratio: | 80 dB |
| en - Input Voltage Noise Density: | 35 nV/sqrt Hz |
| Series: | LM324 |
| Packaging: | Tube |
| Amplifier Type: | High Gain Amplifier |
| Brand: | Texas Instruments |
| Dual Supply Voltage: | /- 3 V, /- 5 V, /- 9 V |
| Features: | Standard Amps |
| Height: | 1.58 mm |
| Input Type: | Rail-to-Rail |
| Length: | 8.65 mm |
| Maximum Dual Supply Voltage: | /- 16 V |
| Minimum Dual Supply Voltage: | /- 1.5 V |
| Operating Supply Voltage: | 3 V to 32 V, /- 1.5 V to /- 16 V |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
Tags de LM324D: LM324D, LM324, LM324 SMD, LM324N, Texas Instruments
