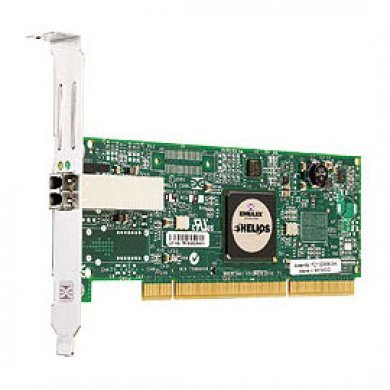

LP1150-F4 HBA Emulex LP1150-F4, OMm-LC, 1 Canal 4Gb/s Fibre Channel PCI-X 2

LP1150-F4 HBA Emulex LP1150-F4, OMm-LC, 1 Canal 4Gb/s Fibre Channel PCI-X 2 OS Support: Windows, Linux, NetWare, VMware, x86, x64 and Intel® Itanium® processor family, 32/64-b

Condição de LP1150-F4:
Novo em embalagem comercial

Garantia  de  LP1150-F4:
24 meses Assist. Técnica do Fabricante

Key Benefits

• Superior quality and reliability ensures data availability
• The most efficient installation accelerates deployment and reduces administration costs
• Maximum SAN performance increases scalability and user satisfaction
• Robust interoperability simplifies deployment and upgrades of SAN hardware and software
• LightPulse Virtual HBA technology provides efficient host utilization and compliance with SAN management best practices
• Advanced security protects the SAN from potential threats such as WWN spoofing, host masquerading, rogue/compromised servers and administrator errors

Key Features

• Exceptional performance and full-duplex data throughput
• Comprehensive virtualization capabilities with support for N-Port ID Virtualization (NPIV)
• Simplified installation and configuration using common HBA drivers and AutoPilot Installer®
• Efficient administration via HBAnyware® for HBAs anywhere in the SAN
• Common driver model eases management and enables upgrades independent of HBA firmware
• Strong authentication between host and fabric based on Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP)

  Standards
  • ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS,
  FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP,
  FC‑TAPE, FCP-2, and RFC 2625 (IP over FC)
  • PCI-X 2.0 and PCI 3.0
  • Fibre Channel class 2 and 3
  • PHP hot plug - hot swap

  Architecture
  • Single-channel
  • 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds
  • automatically detected
  • Integrated data buffer and code space memory

  Hardware Environments
  • x86, x64 and Intel® Itanium® processor family
  • 32/64-bit 33/66MHz PCI (3.3V signaling)
  • 66/100/133/266MHz PCI-X bus speeds



Maiores detalhes de LP1150-F4 no site do fabricante:
http://www.emulex.com/products/hba/1150/ds.pdf

Tags de LP1150-F4: LP1150-F4, HBA, PCI-X, EMULEX, Controladora HBA, Placa HBA, EMULEX
