LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port

2 conectores externos SAS SFF8470 x4, RAID níveis 0, 1, 5, 10 and 50 / PCi Exp. 8x, Suporta Discos

LSI00049-OB - LSI Logic
LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port
LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port
clique para ampliar
*As imagens podem ser ilustrativas
LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port
LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port

R$ 9.665,00

à vista no Pix ou Boleto

ou R$ 10.172,75 em 1x no cartão (via site)

ou R$ 10.737,90 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.665,00

à vista no Pix ou Boleto

R$ 10.172,75
em 1x no cartão (via site)

R$ 10.737,90 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port
2 conectores externos SAS SFF8470 x4, RAID níveis 0, 1, 5, 10 and 50 / PCi Exp. 8x, Suporta Discos

Condição de LSI00049-OB:    Novo em embalagem comercial

Garantia  de  LSI00049-OB:     12 meses direto com a Net Computadores

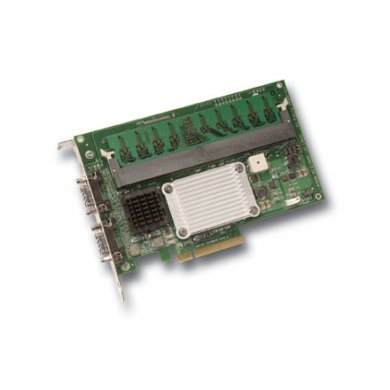

3Gb/s Eight-Port External SAS RAID Adapter

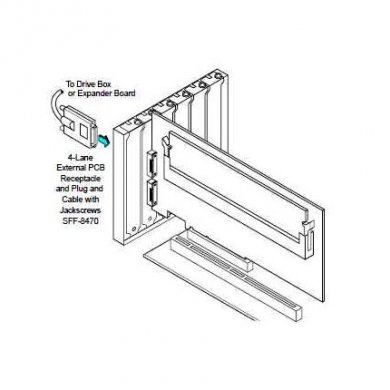

The MegaRAID SAS 8480E features two x4 external SAS connectors for high-performance external storage connectivity. When used with SAS expanders, the MegaRAID SAS 8480E can support up to 122 SAS or SATA II disk drives, making it an ideal solution for enterprise-class storage applications that call for maximum configuration flexibility.

Using a high-performance Intel® I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, the MegaRAID SAS 8480E delivers an intelligent and robust RAID solution. In addition, this adapter supports 256MB DDRII SDRAM for data caching and an intelligent transportable battery backup (iTBBU) that protects cached data for up to 72 hours in the event of a complete power failure.

Features:



  • Eight external SAS/SATA ports
  • Two SAS SFF8470 x4 external connectors
  • 3 Gb/s throughput per port full duplex
  • RAID Levels 0, 1, 5, 10 and 50
  • Greater than 2TB array support
  • Intel® IOP333 I/O Processor
  • PCI Express 1.0a compliant
    • 2.5 Gb/s per lane
    • x8 lane width

  • Ships with 256MB DDRII 400MHz SDRAM DIMM module
  • iTBBU support
  • Advanced data integrity and recovery
  • Enhanced error handling and reporting
  • FlexRAID®:
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)

  • Comprehensive management and configuration utilities
  • Full SAS expander support
  • Benefits:



  • Maximum drive flexibility for using both SAS and SATA II drives
  • PCI Express host interface for increased bandwidth
  • SAS built on proven MegaRAID stack
  • Advanced RAID management suite


  • Maiores detalhes de LSI00049-OB no site do fabricante:
    http://www.lsi.com/storage_home/products_home/internal_raid/megaraid_sas/megarai


    Tags de LSI00049-OB: LSI00049-OB, Controladoras RAID, RAID SAS/SATA, LSI Logic, 84733049, Controladora RAID, Controladora SAS, Controladora SATA, Controladora de Backup, Placa Controladora, LSI Logic

    LSI00049-OB Controladora LSI MegaRAID 8480E OEM, 256MB, SAS / SATA II, 2 Port 2 conectores externos SAS SFF8470 x4, RAID níveis 0, 1, 5, 10 and 50 / PCi Exp. 8x, Suporta Discos

    Condição de LSI00049-OB:
    Novo em embalagem comercial

    Garantia  de  LSI00049-OB:
    12 meses direto com a Net Computadores


    3Gb/s Eight-Port External SAS RAID Adapter

    The MegaRAID SAS 8480E features two x4 external SAS connectors for high-performance external storage connectivity. When used with SAS expanders, the MegaRAID SAS 8480E can support up to 122 SAS or SATA II disk drives, making it an ideal solution for enterprise-class storage applications that call for maximum configuration flexibility.

    Using a high-performance Intel® I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, the MegaRAID SAS 8480E delivers an intelligent and robust RAID solution. In addition, this adapter supports 256MB DDRII SDRAM for data caching and an intelligent transportable battery backup (iTBBU) that protects cached data for up to 72 hours in the event of a complete power failure.

    Features:



  • Eight external SAS/SATA ports
  • Two SAS SFF8470 x4 external connectors
  • 3 Gb/s throughput per port full duplex
  • RAID Levels 0, 1, 5, 10 and 50
  • Greater than 2TB array support
  • Intel® IOP333 I/O Processor
  • PCI Express 1.0a compliant
    • 2.5 Gb/s per lane
    • x8 lane width

  • Ships with 256MB DDRII 400MHz SDRAM DIMM module
  • iTBBU support
  • Advanced data integrity and recovery
  • Enhanced error handling and reporting
  • FlexRAID®:
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)

  • Comprehensive management and configuration utilities
  • Full SAS expander support
  • Benefits:



  • Maximum drive flexibility for using both SAS and SATA II drives
  • PCI Express host interface for increased bandwidth
  • SAS built on proven MegaRAID stack
  • Advanced RAID management suite


  • Maiores detalhes de LSI00049-OB no site do fabricante:
    http://www.lsi.com/storage_home/products_home/internal_raid/megaraid_sas/megarai


    Tags de LSI00049-OB: LSI00049-OB, Controladoras RAID, RAID SAS/SATA, LSI Logic, 84733049, Controladora RAID, Controladora SAS, Controladora SATA, Controladora de Backup, Placa Controladora, LSI Logic
