LSI00194 Controladora LSI 9211-8i RAID SAS/SATA

Name: LSI00194 Controladora LSI 9211-8i RAID SAS/SATA
Brand: LSI Logic
SKU: LSI00194
Price: 3152.00 BRL
Availability: InStock

6Gb/s 8 canais, 2 portas SFF-8087 PCI-E 2.0 x8 (Espelho Alto e Baixo)

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 3.152,00

à vista no Pix ou Boleto

ou R$ 3.317,56 em 1x no cartão (via site)

ou R$ 3.501,86 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.152,00

à vista no Pix ou Boleto

R$ 3.317,56
em 1x no cartão (via site)

R$ 3.501,86 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem antiestática

Garantia:

12 meses direto com a Net Computadores

NCM:

84733099

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84733099

Cotação PJ mais de uma unidade

Indicar LSI00194

LSI00194 Controladora LSI 9211-8i RAID SAS/SATA
6Gb/s 8 canais, 2 portas SFF-8087 PCI-E 2.0 x8 (Espelho Alto e Baixo)

Condição de LSI00194: Novo em embalagem antiestática

Garantia de LSI00194: 12 meses direto com a Net Computadores

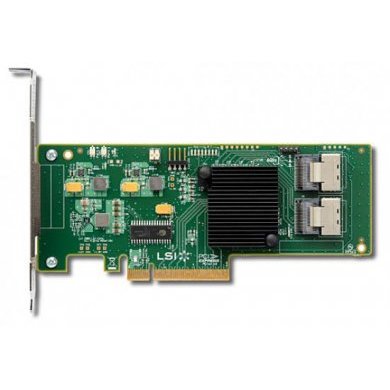

The LSI SAS 9211-8i 6Gb/s SAS Host Bus Adapter combines performance and onboard basic RAID data protection. Integrated RAID provides basic data protection for additional peace of mind.
Connect up to 256 SAS and SATA devices with 8 internal 6Gb/s SAS and SATA ports
Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor
Bandwidth for mid-range applications with PCIe® 2.0 connectivity
Leverage integrated RAID 0, 1, 1E, and 10 for redundancy and high availability in environments where higher-end RAID is not needed

PCI Bus
8-lane, 5 GT/s PCI Express 2.0

PCI Modes
Bus Master DMA

PCI Data Burst Transfer Rates
Half Duplex X8
PCIe 4000 MB/s
Full Duplex
X8 PCIe 8000 MB/s

SAS Bandwidth
Half Duplex
Single Lane- 600MB/s
Wide port (2 lanes) – 1200MB/s
Wide port (3 lanes) – 1800MB/s
Wide port (4 lanes) – 2400MB/s
Wide port (2x4)-4800MB/s
Full Duplex
Single lane- 1200MB/s
Wide port (2 lanes)- 2400MB/s
Wide port (4 lanes)- 4800MB/s

PCI Card Type
3.3V Add-in Card

PCI Voltage
+12V ±10%

PCI Form Factor
6.6” x 2.536” (MD2 Low-Profile)

PCI Power
13.5W

Brackets
Full Height and Low-Profile

Certification Level
PCI Express 2.0

I/O Bus
2 x 4 6Gb/s SAS/SATA ports

SAS Controller
LSISAS2008

Connectors
Internal
Two X4 Mini-SAS SFF8087 (horizontal orientation)

LED Indicators
Internal
Activity/Fault per x4 port – Heartbeat

Integrated RAID
Integrated RAID 0, 1, 1E and 10

Max Number of Physical Devices
Non-RAID
Integrated RAID (IR)
RAID 0
RAID 1
RAID 1E
RAID 10
256
14 spread across 2 volumes
10 per volume
2 per volume plus hotspare
10 per volume
10 per volume

Environments
Operating
0°C to 70°C
5 to 90% Non-condensing
Storage
-45°C to 105°C
5 to 90% Non-condensing

MTFB
>2,000,000 Hours

Compliances
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950

OS Support
Microsoft® Windows®, Linux® (SuSE®, Red Hat®), Solaris®, Vmware®. See www.lsi.com/support for details on versions.

Ordering Information
LSI SAS 9211-8i Single Pack P/N: LSI00190, LSI SAS 9211-8i Kit P/N: LSI00191

OBS: Não acompanha cabos SAS ou SATA
Sugestões de PNs:
07-00021-01
2232000-R
RMS36-2752
79576-3004

Maiores detalhes de LSI00194 no site do fabricante:
http://www.lsi.com/products/host-bus-adapters/pages/lsi-sas-9211-8i.aspx
