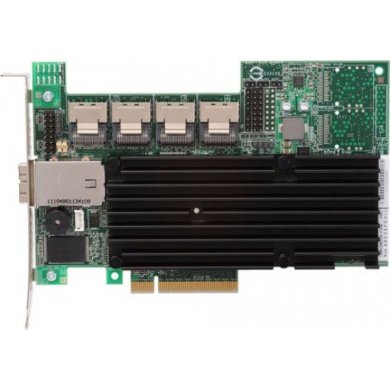

16-Port Internal / 4-Port External PCI Express SATA and SAS RAID Controller
In the Box: MegaRAID SAS 9280-16i4e, LP bracket, Driver & Documentation CD (Cables not included)

MegaRAID SAS 9280-16i4e Features

Twenty 6Gb/s SATA+SAS ports
Four Mini-SAS internal connectors (SFF-8087)
One Mini-SAS external connector (SFF-8088)
LSISAS2108 6Gb/s RAID-on-Chip
- 800MHz PowerPC®
512MB 800MHz DDRII cache memory
Optional battery backup module (Remote mount only)
RAID Levels 0, 1, 5 and 6
RAID Spans 10, 50 and 60
Internal drive storage and external JBOD expansion
PCI Express® 2.0 provides faster signaling for high-bandwidth applications
Connect up to 240 3Gb/s and 6Gb/s SATA and SAS devices
Support for LSI Advanced Software options including FastPath, CacheCade, SafeStore, and Recovery

Solution Provided	Sixteen-port internal / Four-port external SATA+SAS solution for internal drive storage and external JBOD expansion using up to 240 SAS and/or SATA devices
Physical Dimensions	Half-Length, Full Height (6.6” x 4.376”)
Internal Connectors	Four Mini-SAS SFF8087 4i internal connectors
External Connectors	One Mini-SAS SFF8088 4x external connector
Device Support	Up to 240 SAS and/or SATA devices
Host Bus Type	x8 lane PCI Express 2.0 Compliant
Data Transfer Rates	Up to 6Gb/s per port
I/O Processor/SAS Controller	LSISAS2108 RAID on Chip (ROC) and LSISAS2x36 Expander
Cache Memory	512MB 800MHz DDR II SDRAM
Key RAID Data Protection Features	RAID levels 0, 1, 5, and 6 RAID spans 10, 50 and 60 Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or reconstruction (RLM) Single controller Multipathing Load Balancing Configurable stripe size up to 1MB Fast initialization for quick array setup Check Consistency for background data integrity Support for Advanced Software options including FastPath, CacheCade, SafeStore, and Recovery SSD Support with SSD Guard™	Patrol read for media scanning and repairing 64 logical drive support Up to 64TB LUN support DDF compliant Configuration on Disk (COD) S.M.A.R.T support Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Emergency SATA hot spare for SAS arrays Enclosure management - SES (inband) - SGPIO (sideband)
Operating Temperature	Maximum ambient: 60°C (45°C w/iBBU)
Operating Voltage	+3.3V
Warranty	3 years, free advanced technical support, advanced replacement option
Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management	MegaRAID Management Suite -MegaRAID Storage Manager -MegaCLI (command-line interface) -WebBIOS
OS Support	Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support

Tags de LSI00210: SFF8088, SFF8087, SFF-8088, 16 canais, 16 HDs, 16 Channel, controladora para 16 HDs, SFF-8087, LSISAS2108, 9280-16i4e, LSI00210, 16 canais, Controladora RAID, Controladora SAS, Controladora SATA, Controladora de Backup, Placa Controladora, LSI Logic, LSI Logic

LSI00210 Controladora LSI SAS/SATA3 16 Canais 6GBs 600MBps 512MB Cache - PCI-E 2.0 x8, 4x SFF-8087 Interno, 1x SFF-8088 Externo

Condição de LSI00210:
Novo em embalagem comercial

Garantia de LSI00210:
12 meses direto com a Net Computadores
