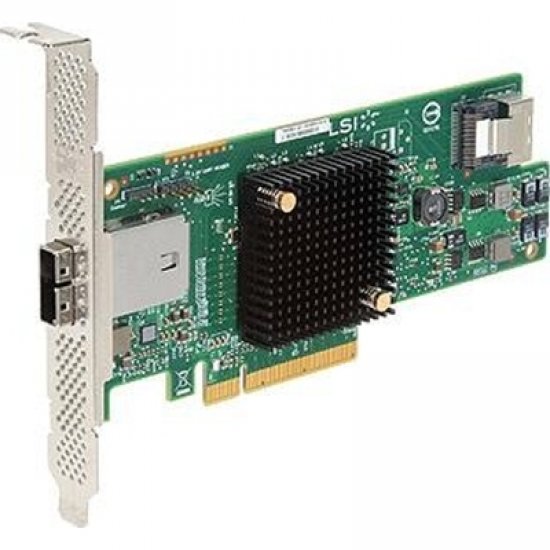

LSI00303 Controladora LSI SAS 9207-4i4e 6Gbs

1x SFF-8087, 1x SFF-8088, PCI-Express 3.0 x8

LSI00303 Controladora LSI SAS 9207-4i4e 6Gbs

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 939,00

à vista no Pix ou Boleto

ou R$ 988,29 em 1x no cartão (via site)

ou R$ 1.043,20 no cartão em até 10x sem juros (apenas na loja física)

R$ 939,00

à vista no Pix ou Boleto

R$ 988,29
em 1x no cartão (via site)

R$ 1.043,20 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 939,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar LSI00303

LSI00303 Controladora LSI SAS 9207-4i4e 6Gbs
1x SFF-8087, 1x SFF-8088, PCI-Express 3.0 x8

Condição de LSI00303: Novo em embalagem antiestática

Garantia de LSI00303: 12 meses direto com a Net Computadores

LSI SAS 9207-4i4e

4 Internal and 4 external 6Gb/s SAS SATA ports
8 lanes, PCI Express 3.0
Low profile form factor design
One x4 mini-SAS internal connector (SFF8087), One x4 mini-SAS external connector (SFF8088)
LSISAS2308 6Gb/s SAS SATA Controller
Supports up to 256 SAS or SATA end devices
Supports SSDs, HDDs and tape drives
Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applicationss
High performance with 6Gb/s data transfer rates

Product Description 4-Port Int, 4-Port Ext, 6Gb/s SATA SAS, PCIe3.0 HBA e documentation CD
IO Controller LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Configurations 4 ea, x1 internal ports (individual drives)
4 ea, x1 external ports
1ea, x4 external wide port
Host Bus x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe, 4000 MB/s
Physical Dimensions Low Profile (2.6 x 6.6)
Connectors One x4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088)
Brackets Full height and low profile
Cable Support Passive Copper
PCI Card Type 3.3 V Add-in Card
Operating Voltage 12V /-8%; 3.3V /-9%
PCI Power (Nominal) 9.8W
Device Support 256 SAS SATA devices
Environmental Operating
0C to 55C
5 to 90% Non-condensing Storage
-45C to 105C
5 to 90% Non-condensing
MTBF >2,000,000
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS 6 of 6; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See xx//www.lsi.com/channel/ChannelDownloads for details on versions and support

Tags de LSI00303: LSI00303, LSI-00303, 92074i4e, Controladora SAS 4 Canais, Controladora SATA 4 Canais, LSI Logic, LSI Logic

LSI00303 Controladora LSI SAS 9207-4i4e 6Gbs 1x SFF-8087, 1x SFF-8088, PCI-Express 3.0 x8

Condição de LSI00303:
Novo em embalagem antiestática

Garantia de LSI00303:
12 meses direto com a Net Computadores

LSI SAS 9207-4i4e

4 Internal and 4 external 6Gb/s SAS SATA ports
8 lanes, PCI Express 3.0
Low profile form factor design
One x4 mini-SAS internal connector (SFF8087), One x4 mini-SAS external connector (SFF8088)
LSISAS2308 6Gb/s SAS SATA Controller
Supports up to 256 SAS or SATA end devices
Supports SSDs, HDDs and tape drives
Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applicationss
High performance with 6Gb/s data transfer rates
