2x/4x 135A, 14nV/rtHz, R2R
R$ 55,00
à vista no Pix ou Boleto
ou R$ 57,89 em 1x no cartão (via site)
ou R$ 61,11 no cartão em até 10x sem juros (apenas na loja física)
R$ 55,00
à vista no Pix ou Boleto
R$ 57,89
em 1x no cartão (via site)
R$ 61,11 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 55,00
à vista no pix
Condição de LT6012ACS: Novo em embalagem comercial
Garantia de LT6012ACS: 3 meses direto com a Net Computadores
Outros PNs para este item: LT6012ACS-PBF, LT6012ACS-TRPBF
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Precision Amplifiers |
| Series: | LT6012 |
| Number of Channels: | 4 Channel |
| GBP - Gain Bandwidth Product: | 330 kHz |
| SR - Slew Rate: | 90 mV/us |
| CMRR - Common Mode Rejection Ratio: | 135 dB |
| Output Current per Channel: | 5 mA |
| Ib - Input Bias Current: | 20 pA |
| Vos - Input Offset Voltage: | 20 uV |
| en - Input Voltage Noise Density: | 14 nV/sqrt Hz |
| Supply Voltage - Max: | 40 V |
| Supply Voltage - Min: | 2.4 V |
| Operating Supply Current: | 135 uA |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | 70 C |
| Shutdown: | No Shutdown |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-14 |
| Packaging: | Tube |
| Brand: | Analog Devices |
| Gain V/V: | 2000 V/mV |
| Height: | 1.75 mm |
| In - Input Noise Current Density: | 0.1 pA/rtHz |
| Ios - Input Offset Current: | 20 pA |
| Output Type: | Rail-to-Rail |
| Product: | Precision Amplifiers |
| Product Type: | Precision Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 135 dB |
| Settling Time: | 45 us |
Tags de LT6012ACS: LT6011, LT6012, LT6012ACS, LT6012ACS-PBF, LT6012ACS-TRPBF, Linear Technology

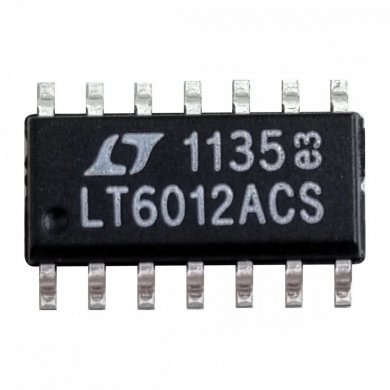

LT6012ACS Ci amplificador operacional de precisão 4CH SOIC-14 2x/4x 135A, 14nV/rtHz, R2R
Condição de LT6012ACS:
Novo em embalagem comercial
Garantia de LT6012ACS:
3 meses direto com a Net Computadores
Outros PNs para este componente: LT6012ACS-PBF, LT6012ACS-TRPBF
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Precision Amplifiers |
| Series: | LT6012 |
| Number of Channels: | 4 Channel |
| GBP - Gain Bandwidth Product: | 330 kHz |
| SR - Slew Rate: | 90 mV/us |
| CMRR - Common Mode Rejection Ratio: | 135 dB |
| Output Current per Channel: | 5 mA |
| Ib - Input Bias Current: | 20 pA |
| Vos - Input Offset Voltage: | 20 uV |
| en - Input Voltage Noise Density: | 14 nV/sqrt Hz |
| Supply Voltage - Max: | 40 V |
| Supply Voltage - Min: | 2.4 V |
| Operating Supply Current: | 135 uA |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | 70 C |
| Shutdown: | No Shutdown |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-14 |
| Packaging: | Tube |
| Brand: | Analog Devices |
| Gain V/V: | 2000 V/mV |
| Height: | 1.75 mm |
| In - Input Noise Current Density: | 0.1 pA/rtHz |
| Ios - Input Offset Current: | 20 pA |
| Output Type: | Rail-to-Rail |
| Product: | Precision Amplifiers |
| Product Type: | Precision Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 135 dB |
| Settling Time: | 45 us |
Tags de LT6012ACS: LT6011, LT6012, LT6012ACS, LT6012ACS-PBF, LT6012ACS-TRPBF, Linear Technology
Semelhantes
LT6012ACS Ci amplificador operacional de precisão 4CH SOIC-14
