M2-ATX-HV Pico Size Fonte Automotiva 140W ATX entrada 6 a 32V DC

para uso em CarPCs

M2-ATX-HV - Pico Size Computing
M2-ATX-HV Pico Size Fonte Automotiva 140W ATX entrada 6 a 32V DC
*As imagens podem ser ilustrativas
Pico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DCPico Size Fonte Automotiva 140W ATX entrada 6 a 32V DC

R$ 1.081,00

à vista no Pix ou Boleto

ou R$ 1.136,93 em 1x no cartão (via site)

ou R$ 1.200,10 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.081,00

à vista no Pix ou Boleto

R$ 1.136,93
em 1x no cartão (via site)

R$ 1.200,10 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85043119

R$ 1.081,00

à vista no pix

Condição:
Seminovo testado e pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 85043119

M2-ATX-HV Pico Size Fonte Automotiva 140W ATX entrada 6 a 32V DC
para uso em CarPCs

Condição de M2-ATX-HV:    Seminovo testado e pronto para uso!

Garantia  de  M2-ATX-HV:     3 meses direto com a Net Computadores

Outros PNs para este item:     M2ATXHV




Fonte de Alimentação Automotiva Inteligente, de 140W, com entrada 6 a 32 VDC e saída ATX. Ideal para CarPC especialmente para ônibus. Suporta ruídos e interferências comuns em veículos.
Caracteristicas:
- Potência 140W.
- Tipo de conversão DC/DC.
- Tensão de Alimentação 6~32VDC.
- Controle Inteligente de Desligamento.
- Suporta ruídos e interferências comuns em veículos.
- Sistema de prevenção a descarga total da bateria.
- Fusível automotivo de 15A.
- Capacitores Sólidos de longa duração.

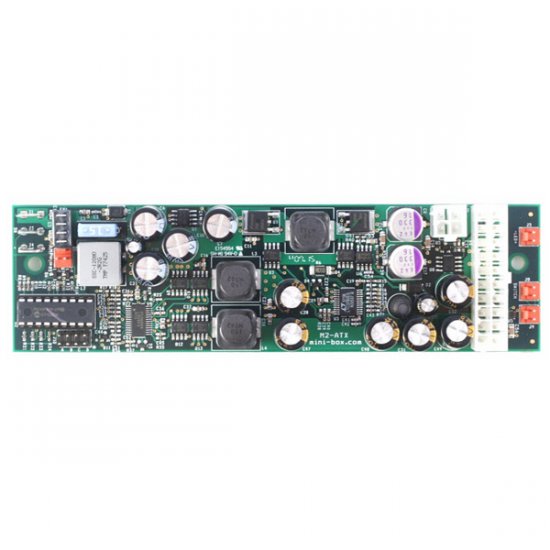

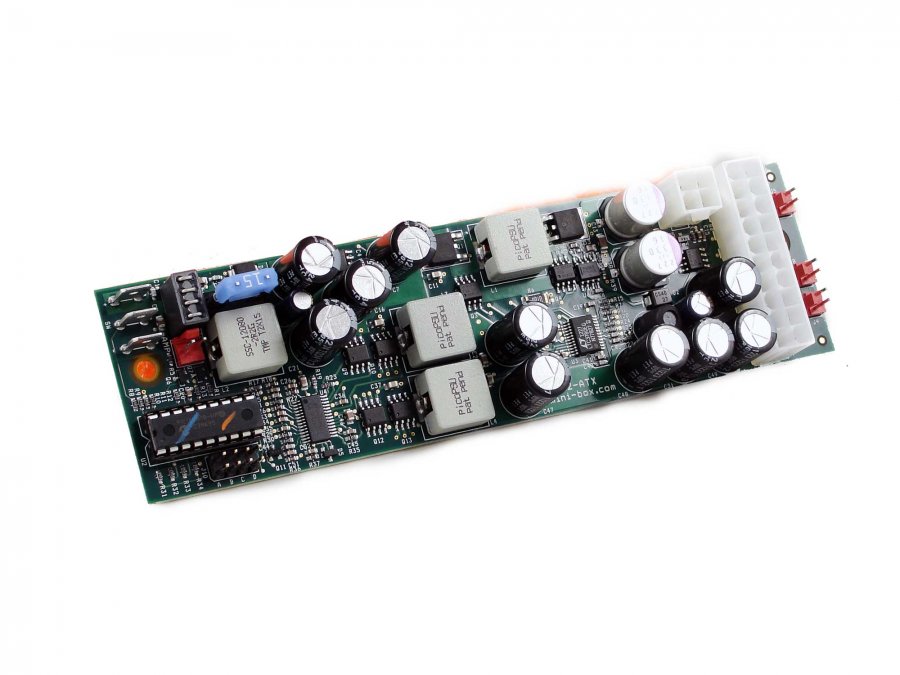

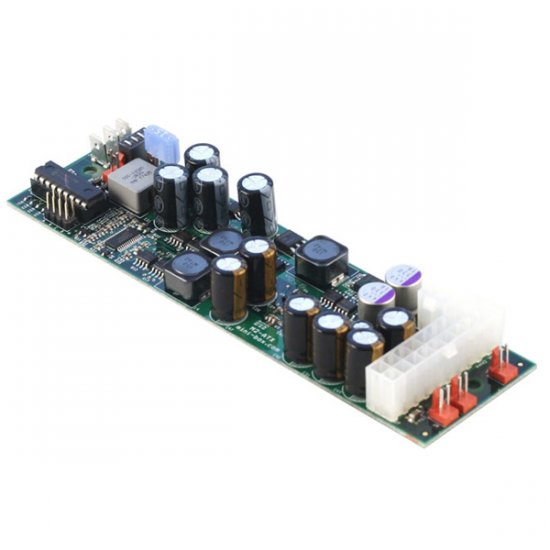

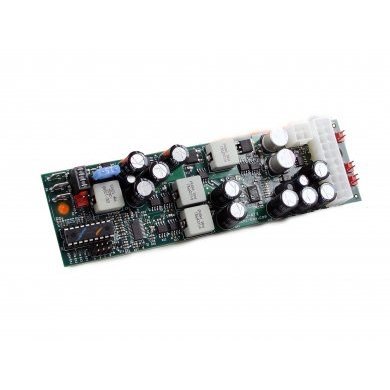

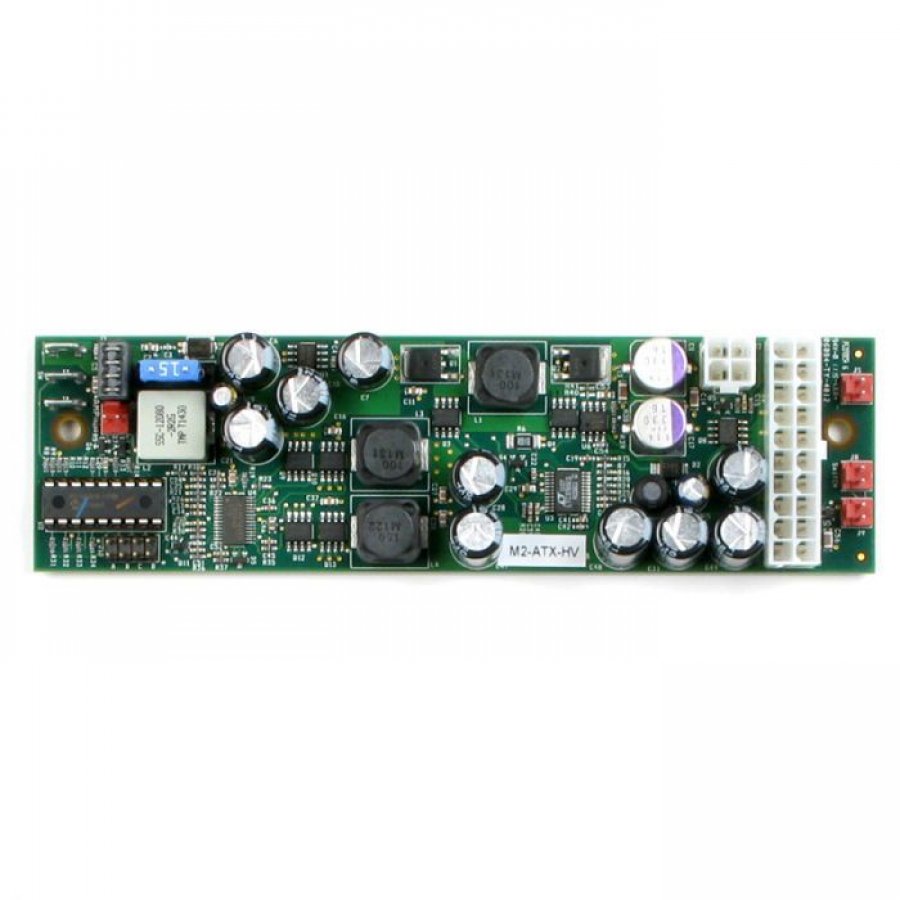

The M2-ATX-HV is an intelligent, high-performance, vehicle (car/boat/electric cart) 12-volt DC-DC ATX PC power supply designed for car PC and battery-powered applications. Designed to provide power and to control the ON/OFF switch of a mainboard (car PC) based on ignition status, the M2-ATX-HV is a wide input (6~32 V) vehicle/car/battery operated ATX power supply capable of surviving tough car engine cranks (down to 6 volts), as well as transient over-voltage situations. Just connect it to your car/boat/RV/solar battery and power up your PC!

M2-ATX-HV has 8 user-selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown car PC timing schemes via a built-in shutdown controller. By removing all user-selectable jumpers, the M2-ATX-HV becomes a traditional PC PSU with no ignition control (shutdown controller bypassed), and it can be used in non-vehicle computer applications.

Even if your computer is totally off, a PC will still consume a few hundred milliwatts, which are needed to monitor PC ON/OFF status. When the computer (car PC) is in the suspend/ mode, it will consume even more power, because the RAM needs to be powered at all times. The power consumption in the suspend mode is a few watts. No matter how big your car battery is, it will eventually drain your vehicle battery in a matter of days.

While in deep mode, M2-ATX-HV constantly monitors your car battery voltage levels, preventing deep discharge situations by automatically shutting down (using a built-in shutdown controller) until battery levels reach safe levels again. These features, along with multiple timing schemes, a small footprint, and a very competitive price, makes the M2-ATX-HV the best solution for DC-DC ATX vehicle/car PC power supply solutions.

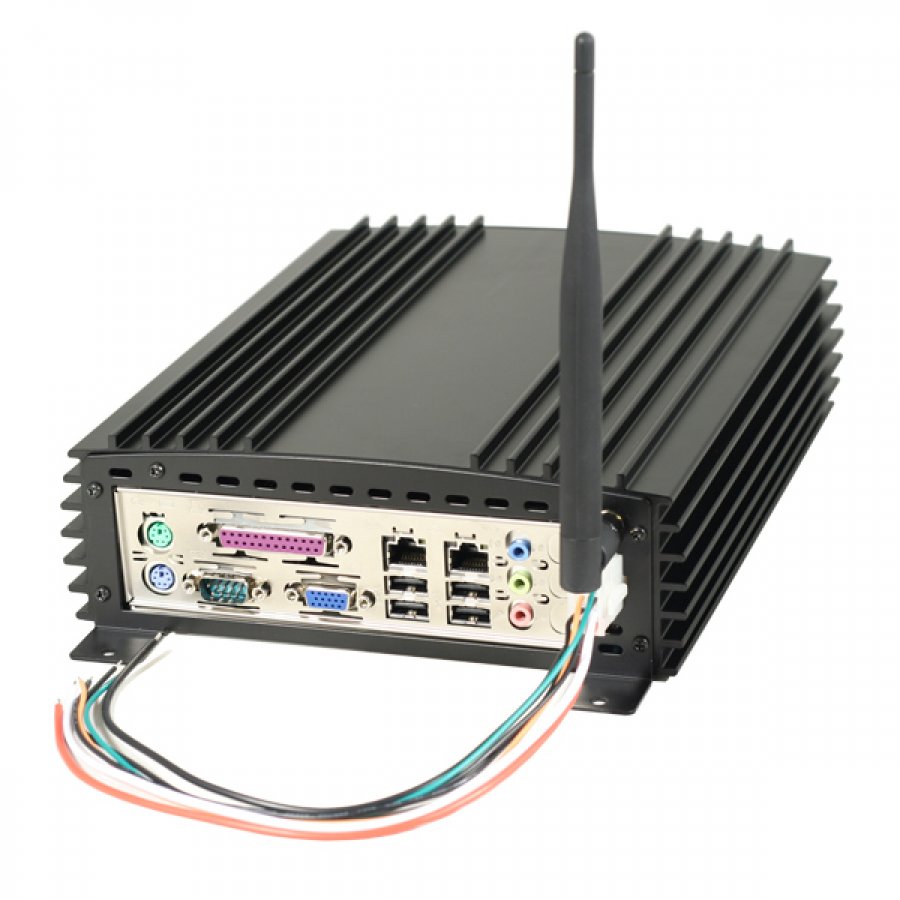

M2-ATX-HV is form factor compatible with the VoomPC enclosure and with most Casetronic and Morex chassis, and it is footprint compatible with the M1-ATX. The same version of microcode will run on both M1-ATX and M2-ATX.

OSB: ITEM NÃO ACOMPANHA CABOS, SOMENTE PLACA DA FONTE


Maiores detalhes de M2-ATX-HV no site do fabricante:
http://www.mini-box.com/M2-ATX-HV-140w-Intelligent-Automotive-DC-DC-Power-Supply


Tags de M2-ATX-HV: M2-ATX-HV, M2-ATX HV, MSDD-25N, MSDD25N, M2ATXHV, CarPCs, fonte veicular, fonte automotiva, fonte atx automotiva, Conversor Dc-dc - Mini-itx, DC-DC Power Supply Car PC Carputer, AC/DC Barrel Connector, AC-DC 12V-6.6A, P4-12V cable, Fonte DELL, Fonte HP, Fonte IBM, Fonte Real, Fonte de Alimentação, Pico Size Computing, fonte atx para onibus, fonte para onibus, fonte para pc de onibus, fonte atx para 12v DC, fonte atx para carro, fonte atx para computador de onibus, usado, seminovo, Pico Size Computing

M2-ATX-HV Pico Size Fonte Automotiva 140W ATX entrada 6 a 32V DC para uso em CarPCs

Condição de M2-ATX-HV:
Seminovo testado e pronto para uso!

Garantia  de  M2-ATX-HV:
3 meses direto com a Net Computadores

Outros PNs para este componente:     M2ATXHV



Fonte de Alimentação Automotiva Inteligente, de 140W, com entrada 6 a 32 VDC e saída ATX. Ideal para CarPC especialmente para ônibus. Suporta ruídos e interferências comuns em veículos.
Caracteristicas:
- Potência 140W.
- Tipo de conversão DC/DC.
- Tensão de Alimentação 6~32VDC.
- Controle Inteligente de Desligamento.
- Suporta ruídos e interferências comuns em veículos.
- Sistema de prevenção a descarga total da bateria.
- Fusível automotivo de 15A.
- Capacitores Sólidos de longa duração.

The M2-ATX-HV is an intelligent, high-performance, vehicle (car/boat/electric cart) 12-volt DC-DC ATX PC power supply designed for car PC and battery-powered applications. Designed to provide power and to control the ON/OFF switch of a mainboard (car PC) based on ignition status, the M2-ATX-HV is a wide input (6~32 V) vehicle/car/battery operated ATX power supply capable of surviving tough car engine cranks (down to 6 volts), as well as transient over-voltage situations. Just connect it to your car/boat/RV/solar battery and power up your PC!

M2-ATX-HV has 8 user-selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown car PC timing schemes via a built-in shutdown controller. By removing all user-selectable jumpers, the M2-ATX-HV becomes a traditional PC PSU with no ignition control (shutdown controller bypassed), and it can be used in non-vehicle computer applications.

Even if your computer is totally off, a PC will still consume a few hundred milliwatts, which are needed to monitor PC ON/OFF status. When the computer (car PC) is in the suspend/ mode, it will consume even more power, because the RAM needs to be powered at all times. The power consumption in the suspend mode is a few watts. No matter how big your car battery is, it will eventually drain your vehicle battery in a matter of days.

While in deep mode, M2-ATX-HV constantly monitors your car battery voltage levels, preventing deep discharge situations by automatically shutting down (using a built-in shutdown controller) until battery levels reach safe levels again. These features, along with multiple timing schemes, a small footprint, and a very competitive price, makes the M2-ATX-HV the best solution for DC-DC ATX vehicle/car PC power supply solutions.

M2-ATX-HV is form factor compatible with the VoomPC enclosure and with most Casetronic and Morex chassis, and it is footprint compatible with the M1-ATX. The same version of microcode will run on both M1-ATX and M2-ATX.

OSB: ITEM NÃO ACOMPANHA CABOS, SOMENTE PLACA DA FONTE


Maiores detalhes de M2-ATX-HV no site do fabricante:
http://www.mini-box.com/M2-ATX-HV-140w-Intelligent-Automotive-DC-DC-Power-Supply


Tags de M2-ATX-HV: M2-ATX-HV, M2-ATX HV, MSDD-25N, MSDD25N, M2ATXHV, CarPCs, fonte veicular, fonte automotiva, fonte atx automotiva, Conversor Dc-dc - Mini-itx, DC-DC Power Supply Car PC Carputer, AC/DC Barrel Connector, AC-DC 12V-6.6A, P4-12V cable, Fonte DELL, Fonte HP, Fonte IBM, Fonte Real, Fonte de Alimentação, Pico Size Computing, fonte atx para onibus, fonte para onibus, fonte para pc de onibus, fonte atx para 12v DC, fonte atx para carro, fonte atx para computador de onibus, usado, seminovo, Pico Size Computing
