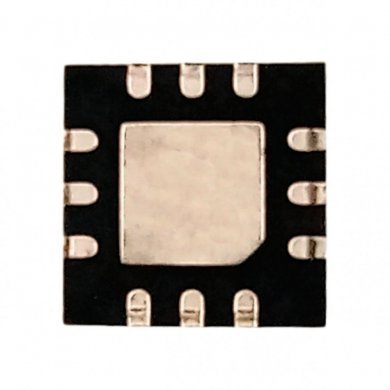

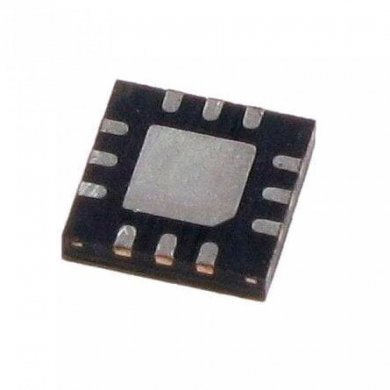

MAX5535ETC+T MAX5535 Digital to Analog Converter DAC 12Bit

Name: MAX5535ETC+T MAX5535 Digital to Analog Converter DAC 12Bit
Brand: Analog Devices
SKU: MAX5535ETC+T
Price: 87.00 BRL
Availability: InStock

marcação no CI: AACN 1708 BEAM +

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 87,00

à vista no Pix ou Boleto

ou R$ 91,31 em 1x no cartão (via site)

ou R$ 96,38 no cartão em até 10x sem juros (apenas na loja física)

R$ 87,00

à vista no Pix ou Boleto

R$ 91,31
em 1x no cartão (via site)

R$ 96,38 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

84733042

R$ 87,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 84733042

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar MAX5535ETC+T

MAX5535ETC+T MAX5535 Digital to Analog Converter DAC 12Bit
marcação no CI: AACN 1708 BEAM +

Condição de MAX5535ETC+T: Novo em embalagem comercial

Garantia de MAX5535ETC+T: 7 dias troca. Sem garantia após soldado

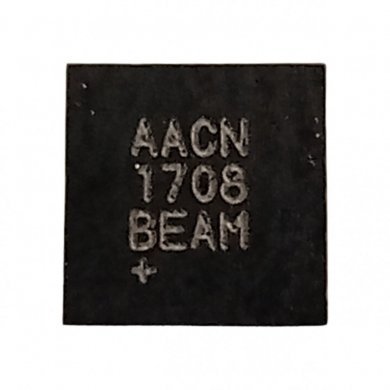

- Atenção: Este Ci tem código marcado no componente como: AACN 1708 BEAM (Você não encontrará o código MAX5535 no componente)

General Description
- Digital to Analog Converter DAC Dual, UltraLowPower, 12Bit, VoltageOutput DACs
- The MAX5532MAX5535 are dual, 12bit, ultralowpower, voltageoutput, digitaltoanalog converters (DACs) offering railtorail buffered voltage outputs. The DACs operate from a 1.8V to 5.5V supply and consume less than 5A, making the devices suitable for lowpower and lowvoltage applications. A shutdown mode reduces overall current, including the reference input current, to just 0.18A. The MAX5532MAX5535 use a 3wire serial interface that is compatible with SPI, QSPI, and MICROWIRE.
- Upon powerup, the MAX5532MAX5535 outputs are driven to zero scale, providing additional safety for applications that drive valves or for other transducers that need to be off during powerup. The zeroscale outputs enable glitchfree powerup.

Applications

Portable BatteryPowered Devices
Instrumentation
Automatic Trimming and Calibration in Factory or Field
Programmable Voltage and Current Sources
Industrial Process Control and Remote Industrial Devices
Remote Data Conversion and Monitoring
Chemical Sensor Cell Bias for Gas Monitors
Programmable LCD Bias

Manufacturer:	Analog Devices Inc.
Product Category:	Digital to Analog Converters DAC
RoHS:
Series:	MAX5535
Resolution:	12 bit
Number of Channels:	2 Channel
Interface Type:	3Wire, Microwire, QSPI, SPI
Minimum Operating Temperature:	40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TQFNEP12
Packaging:	Reel
Brand:	Analog Devices / Maxim Integrated
Development Kit:	MAX5535EVKIT
Height:	0.73 mm
Number of Converters:	2 Converter
Operating Supply Voltage:	2.5 V, 3.3 V, 5 V
Product Type:	DACs Digital to Analog Converters

Maiores detalhes de MAX5535ETC+T no site do fabricante:
https://www.analog.com/media/en/technical-documentation/data-sheets/MAX5532-MAX5

Tags de MAX5535ETC+T: 5535, MAX5535, MAX5532, MAX5533, MAX5535ETC+T, MAX5535ETC, MAX5535ETC+, MAX5535, MAX5532, AACN 1708 BEAM +, MAX5532EUA, MAX5534ETC, MAX5533EUA, Analog Devices

MAX5535ETC+T MAX5535 Digital to Analog Converter DAC 12Bit marcação no CI: AACN 1708 BEAM +

Condição de MAX5535ETC+T:
Novo em embalagem comercial

Garantia de MAX5535ETC+T:
7 dias troca. Sem garantia após soldado

Portable BatteryPowered Devices
Instrumentation
Automatic Trimming and Calibration in Factory or Field
Programmable Voltage and Current Sources
Industrial Process Control and Remote Industrial Devices
Remote Data Conversion and Monitoring
Chemical Sensor Cell Bias for Gas Monitors
Programmable LCD Bias

Manufacturer:	Analog Devices Inc.
Product Category:	Digital to Analog Converters DAC
RoHS:
Series:	MAX5535
Resolution:	12 bit
Number of Channels:	2 Channel
Interface Type:	3Wire, Microwire, QSPI, SPI
Minimum Operating Temperature:	40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TQFNEP12
Packaging:	Reel
Brand:	Analog Devices / Maxim Integrated
Development Kit:	MAX5535EVKIT
Height:	0.73 mm
Number of Converters:	2 Converter
Operating Supply Voltage:	2.5 V, 3.3 V, 5 V
Product Type:	DACs Digital to Analog Converters
