MBC13917EPR2 ci MBC13917 amplificador RF Single Band LN MLPD-6

100MHz a 2.5GHz ganho 27dB 2.7V

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 20,00

à vista no Pix ou Boleto

ou R$ 20,12 em 1x no cartão (via site)

ou R$ 21,24 no cartão em até 10x sem juros (apenas na loja física)

R$ 20,00

à vista no Pix ou Boleto

R$ 20,12
em 1x no cartão (via site)

R$ 21,24 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

R$ 20,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar MBC13917EPR2

MBC13917EPR2 ci MBC13917 amplificador RF Single Band LN MLPD-6
100MHz a 2.5GHz ganho 27dB 2.7V

Condição de MBC13917EPR2: Novo em embalagem comercial

Garantia de MBC13917EPR2: 7 dias troca. Sem garantia após soldado

Outros PNs para este item: MBC13917

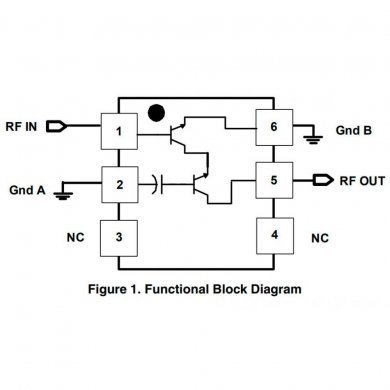

The MBC13917 is a cost-effective, high isolation amplifier fabricated with an advanced RF BiCMOS process using the SiGe:C module. This is the leadless package version of the MBC13916 device. The MBC13917 is designed for a wide range of general purpose RF applications and has excellent high frequency gain and noise figure. On-chip bias circuitry sets the bias point matching is accomplished off-chip, affording the maximum in application flexibility.

Features
The MBC13917 has the following features:
- Usable frequency range 100 MHz to 2500 MHz
- 27 dB typical gain at 434 MHz, Vcc 2.7V
- NFmin (device level) 0.95 dB @ 434 MHz
- NFmin (device level) 0.95 dB @ 900 MHz
- 6.5 dBm typical output power at -10 dBm Pin at 900 MHz, Vcc 2.7V
- MBC13917 Advance Information, Rev. 1.0 2 Freescale Semiconductor
- 46 dB typical reverse isolation (device level) at 434 MHz, Vcc 2.7V
- 4.7 mA typical bias current at Vcc 2.7V
- 2.7V to 3.3V supply

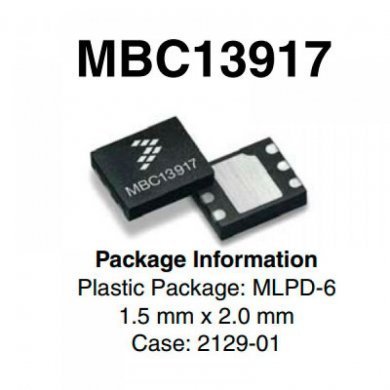

- Industry standard MLPD-6 leadless package
- Available only in tape and reel packaging

Applications
Ideal for use in any RF product that operates between 100 MHz and 2.5 GHz, and may be applied in:
- Buffer amplifiers
- Mixers
- IF amplifiers
- Voltage controlled oscillators (VCOs)
- Low power amplifiers
- Gain block in RF end products
- Smart metering
- Industrial-scientific and medical (ISM)
- Consumer-WLAN, 802.11 b/g
- Auto-TPMS, RKE, GPS, active antennas, wireless security

Manufacturer:	NXP
Product Category:	RF Amplifier
RoHS:
Mounting Style:	SMD/SMT
Package / Case:	MLPD-6
Type:	Low Noise Amplifiers
Technology:	SiGe
Operating Frequency:	100 MHz to 2.5 GHz
P1dB - Compression Point:	1 dBm
Gain:	27 dB
Operating Supply Voltage:	2.7 V
NF - Noise Figure:	2.1 dB
OIP3 - Third Order Intercept:	9.5 dBm
Operating Supply Current:	4.7 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Qualification:	AEC-Q100
Series:	MBC13917
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	NXP Semiconductors
Input Return Loss:	- 8 dB
Isolation dB:	46 dB
Moisture Sensitive:	Yes
Pd - Power Dissipation:	100 mW
Product:	Variable Gain Amplifiers
Product Type:	RF Amplifier

Maiores detalhes de MBC13917EPR2 no site do fabricante:
https://www.nxp.com/docs/en/data-sheet/MBC13917.pdf

Tags de MBC13917EPR2: amplificador de RF, SiGe, AEC-Q100, General Purpose SiGe C RF Cascode Low Noise Amplifier,, NXP Semiconductor
