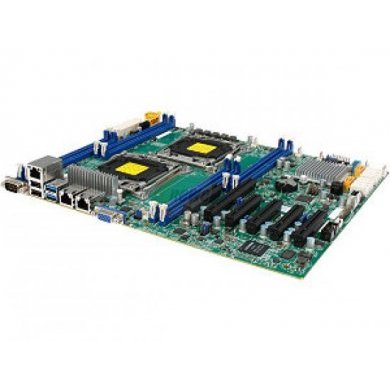

MBD-X10DRL-I-O Supermicro Placa Mãe X10DRL-I Dual Xeon

Name: MBD-X10DRL-I-O Supermicro Placa Mãe X10DRL-I Dual Xeon
Brand: SUPERMICRO
SKU: MBD-X10DRL-I-O
Price: 5572.00 BRL
Availability: InStock

LGA2011-3 E5-2600V3, Rede Dual Gigabit, DDR4 2133Mhz ECC, 10X HD SATAIII, Chipset Intel C612

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 5.572,00

à vista no Pix ou Boleto

ou R$ 5.864,81 em 1x no cartão (via site)

ou R$ 6.190,64 no cartão em até 10x sem juros (apenas na loja física)

R$ 5.572,00

à vista no Pix ou Boleto

R$ 5.864,81
em 1x no cartão (via site)

R$ 6.190,64 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

6 meses direto com a Net Computadores

NCM:

84733041

R$ 5.572,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
6 meses direto com a Net Computadores

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar MBD-X10DRL-I-O

MBD-X10DRL-I-O Supermicro Placa Mãe X10DRL-I Dual Xeon
LGA2011-3 E5-2600V3, Rede Dual Gigabit, DDR4 2133Mhz ECC, 10X HD SATAIII, Chipset Intel C612

Condição de MBD-X10DRL-I-O: Novo em embalagem antiestática

Garantia de MBD-X10DRL-I-O: 6 meses direto com a Net Computadores

MBD-X10DRL-i
X10DRL-i

Physical Stats
Form Factor
ATX
Dimensions
12 x 10 (30.48cm x 25.4cm)

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP, 1 QPI up to 9.6 GT/s
Cores / Cache
Up to 22 cores - / Up to 55MB- cache
Note
- BIOS version 2.0 or above is required
Note
** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
512GB Registered ECC RDIMM, DDR4-2400MHzUp to 1TB 3DS ECC LRDIMM, in 8 DIMM slots
Memory Type
2400-/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices
Chipset
Intel® C612
SATA
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC

Input / Output
SATA
10 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
5 USB 2.0 ports (2 rear 2 via headers 1 Type A)
4 USB 3.0 ports (2 rear 2 via headers)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM
TPM Header
Expansion Slots
PCI-E
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)
1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.3
ACPI 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management
Software
Intel® Node Manager, IPMI2.0, SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery

PC Health Monitoring
Voltage
12V, 3.3V, 5V, 5V standby, 5 Phase-switching voltage regulator, Memory Voltages
FAN
8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
LED
CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
Chassis intrusion detection, Chassis intrusion header, Dual Cooling Zones

Operating Environment
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Tags de MBD-X10DRL-I-O: MBD-X10DRL-I-O, X10DRL-I-O, X10DRL, Placa Mãe Supermicro Intel Xeon, Placa Server Xeon V3, Xeon E5, E5-2600 V3, Xeon E5-2600V3, SUPERMICRO
