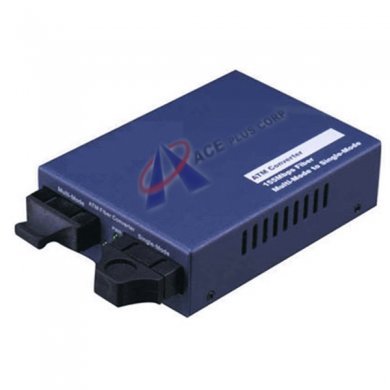

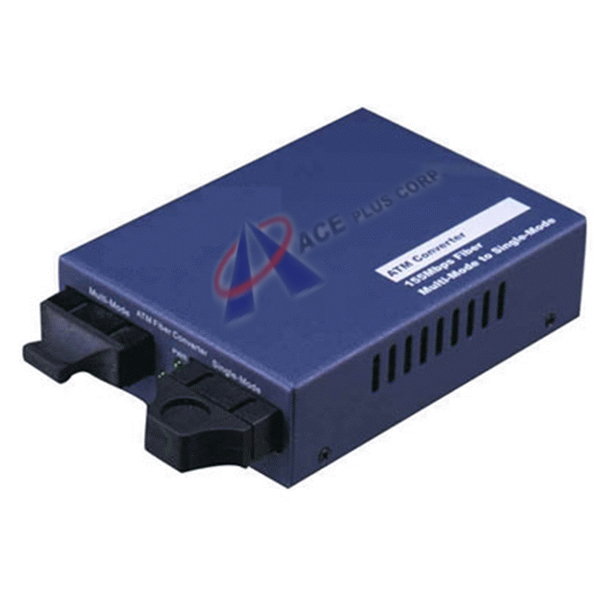

MC155 Ace Plus Conversor de Mídia MC155 ATM OC-3 Multimode para Single

Support 155Mbps ATM OC-3 multimode to singlemode conversion, Fiber Cable: 50/125, 62.5/125, or 100/

MC155 - Ace Plus
MC155 Ace Plus Conversor de Mídia MC155 ATM OC-3 Multimode para Single
*As imagens podem ser ilustrativas
Ace Plus Conversor de Mídia MC155 ATM OC-3 Multimode para SingleAce Plus Conversor de Mídia MC155 ATM OC-3 Multimode para Single

R$ 1.352,00

à vista no Pix ou Boleto

ou R$ 1.422,32 em 1x no cartão (via site)

ou R$ 1.501,34 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.352,00

à vista no Pix ou Boleto

R$ 1.422,32
em 1x no cartão (via site)

R$ 1.501,34 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176299

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176299

MC155 Ace Plus Conversor de Mídia MC155 ATM OC-3 Multimode para Single
Support 155Mbps ATM OC-3 multimode to singlemode conversion, Fiber Cable: 50/125, 62.5/125, or 100/

Condição de MC155:    Novo em embalagem comercial

Garantia  de  MC155:     12 meses direto com a Net Computadores



MC-155

Fiber converter is used to convert multi mode fiber signal to single mode equivalent that extends the long span fiber connections easily and inexpensively. Any protocol using 1300nm wavelength from 100Mbps up to 155Mbps such as FDDI, Fast Ethernet or ATM is ideal to use it. The media converter can be used as a standalone unit or as a slide-in module to the 19" converter rack (up to 10 units) for use at a central wiring closet.

Key Features
 Support 155Mbps ATM OC-3 multi-mode to single-mode conversion
Good for the applications to extend the network distance to over 2Km
Multiple single-mode fiber connectors available for 20Km, 40Km and 60Km


Technical Specifications
 Standard: IEEE802.3u 100Base-FX
Fiber Cable:
50/125, 62.5/125, or 100/140μm (multi-mode)
8.3/125, 8.7/125, 9/125 or 10/125μm (single-mode)
Data Transfer Rate: 155Mbps
LED Indicators: POWER, SD (signal detect) for multi/single mode fiber port
Power Requirement: 1.0A@+5VDC
Ambient Temperature: 0 to 50°C
Humidity: 5% to 90%
CB Dimensions: 26.2(H) x 70.3(W) x 158(D) mm
Certification: FCC Part 15 Class A, CE Mark

MC-155


ATM (OC-3) Multi-mode to Single-mode Converter, 2km/20km








Maiores detalhes de MC155 no site do fabricante:
http://www.ace-plus.com/product/media_amc255.html


Tags de MC155: MC155, Equipamentos para Rede, Conversores de Mídia, Ace Plus, 8517625, Ace Plus

MC155 Ace Plus Conversor de Mídia MC155 ATM OC-3 Multimode para Single Support 155Mbps ATM OC-3 multimode to singlemode conversion, Fiber Cable: 50/125, 62.5/125, or 100/

Condição de MC155:
Novo em embalagem comercial

Garantia  de  MC155:
12 meses direto com a Net Computadores


MC-155

Fiber converter is used to convert multi mode fiber signal to single mode equivalent that extends the long span fiber connections easily and inexpensively. Any protocol using 1300nm wavelength from 100Mbps up to 155Mbps such as FDDI, Fast Ethernet or ATM is ideal to use it. The media converter can be used as a standalone unit or as a slide-in module to the 19" converter rack (up to 10 units) for use at a central wiring closet.

Key Features
 Support 155Mbps ATM OC-3 multi-mode to single-mode conversion
Good for the applications to extend the network distance to over 2Km
Multiple single-mode fiber connectors available for 20Km, 40Km and 60Km


Technical Specifications
 Standard: IEEE802.3u 100Base-FX
Fiber Cable:
50/125, 62.5/125, or 100/140μm (multi-mode)
8.3/125, 8.7/125, 9/125 or 10/125μm (single-mode)
Data Transfer Rate: 155Mbps
LED Indicators: POWER, SD (signal detect) for multi/single mode fiber port
Power Requirement: 1.0A@+5VDC
Ambient Temperature: 0 to 50°C
Humidity: 5% to 90%
CB Dimensions: 26.2(H) x 70.3(W) x 158(D) mm
Certification: FCC Part 15 Class A, CE Mark

MC-155


ATM (OC-3) Multi-mode to Single-mode Converter, 2km/20km








Maiores detalhes de MC155 no site do fabricante:
http://www.ace-plus.com/product/media_amc255.html


Tags de MC155: MC155, Equipamentos para Rede, Conversores de Mídia, Ace Plus, 8517625, Ace Plus
