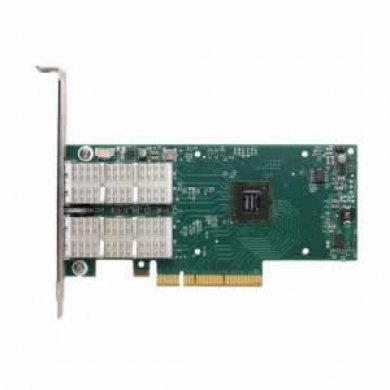

MCB192A-FCAT Mellanox Connect-IB Dual Port QSFP

MCB192A-FCAT Mellanox Connect-IB Dual Port QSFP 56Gb/s FDR ? InfiniBand, PCI Express 3.0

Condição de MCB192A-FCAT:
Novo em embalagem comercial

Garantia  de  MCB192A-FCAT:
12 meses direto com a Net Computadores

Physical
• Size: 2.71in. x5.6 in. (68.90mm x 142.25 mm)
• Connector: QSFP+ InfiniBand (Copper and optical)

Protocol Support
• InfiniBand: IBTA v1.2.1
• Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR

(14.0625Gb/s per lane) port
• Data Rate: Up to 56Gb/s FDR– InfiniBand
• PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible)

Power and Environmental
• Voltage: 12V, 3.3V
• Typ Power: Passive Cables 10.73W
• Max Power: Passive Cables 12.32W
• Temperature: 0°C to 55°C
• Air Flow: 300LFMa

Regulatory
• Safety: IEC/EN 60950-1:2006
• ETSI EN 300 019-2-2
• IEC 60068-2- 64, 29, 32
• RoHS: RoHS-R6
