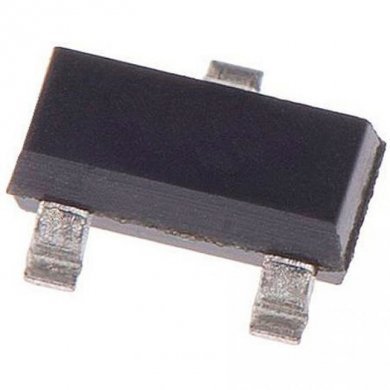

MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23

Supervisor Open Drain or Open Collector 1 Channel SOT-23-3 (Marcação no Componente: PJBW)

MCP130T-270i - Microchip
MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23
*As imagens podem ser ilustrativas
IC SUPERVISOR 2.7V LOW SOT23IC SUPERVISOR 2.7V LOW SOT23IC SUPERVISOR 2.7V LOW SOT23

R$ 3,43

à vista no Pix ou Boleto

ou R$ 3,61 em 1x no cartão (via site)

ou R$ 3,81 no cartão em até 10x sem juros (apenas na loja física)

R$ 3,43

à vista no Pix ou Boleto

R$ 3,61
em 1x no cartão (via site)

R$ 3,81 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
850440602

R$ 3,43

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 850440602

MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23
Supervisor Open Drain or Open Collector 1 Channel SOT-23-3 (Marcação no Componente: PJBW)

Condição de MCP130T-270i:    Novo em embalagem comercial

Garantia  de  MCP130T-270i:     3 meses direto com a Net Computadores



Manufacturer: Microchip
Product Category: Supervisory Circuits
RoHS:  Details
Type: Voltage Supervisory
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Threshold Voltage: 3 V, 3.3 V, 5 V
Number of Inputs Monitored: 1 Input
Output Type: Active Low, Open Drain
Manual Reset: No Manual Reset
Watchdog Timers: No Watchdog
Battery Backup Switching: No Backup
Reset Delay Time: 350 ms
Supply Voltage - Max: 5.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Series: MCP130
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Height: 0.95 mm
Length: 2.9 mm
Width: 1.3 mm
Brand: Microchip Technology
Overvoltage Threshold: 3 V
Undervoltage Threshold: 2.85 V
Chip Enable Signals: No Chip Enable
Operating Supply Current: 60 uA
Power Fail Detection: No


Maiores detalhes de MCP130T-270i no site do fabricante:
https://www.microchip.com/wwwproducts/en/MCP130


Vídeo de MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23



Tags de MCP130T-270i: MCP130T-270I/TTCT-ND, MCP130T-270i, MCP130T-300I/TT, Supervisor Open Drain or Open Collector 1 Channel SOT-23-3, 579-MCP130T-300I/TT, MCP130T-270I, MCP130T, MCP130, PJ8W, PJBW, Microchip, Microchip

MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23 Supervisor Open Drain or Open Collector 1 Channel SOT-23-3 (Marcação no Componente: PJBW)

Condição de MCP130T-270i:
Novo em embalagem comercial

Garantia  de  MCP130T-270i:
3 meses direto com a Net Computadores


Manufacturer: Microchip
Product Category: Supervisory Circuits
RoHS:  Details
Type: Voltage Supervisory
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Threshold Voltage: 3 V, 3.3 V, 5 V
Number of Inputs Monitored: 1 Input
Output Type: Active Low, Open Drain
Manual Reset: No Manual Reset
Watchdog Timers: No Watchdog
Battery Backup Switching: No Backup
Reset Delay Time: 350 ms
Supply Voltage - Max: 5.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Series: MCP130
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Height: 0.95 mm
Length: 2.9 mm
Width: 1.3 mm
Brand: Microchip Technology
Overvoltage Threshold: 3 V
Undervoltage Threshold: 2.85 V
Chip Enable Signals: No Chip Enable
Operating Supply Current: 60 uA
Power Fail Detection: No


Maiores detalhes de MCP130T-270i no site do fabricante:
https://www.microchip.com/wwwproducts/en/MCP130


Vídeo de MCP130T-270i IC SUPERVISOR 2.7V LOW SOT23



Tags de MCP130T-270i: MCP130T-270I/TTCT-ND, MCP130T-270i, MCP130T-300I/TT, Supervisor Open Drain or Open Collector 1 Channel SOT-23-3, 579-MCP130T-300I/TT, MCP130T-270I, MCP130T, MCP130, PJ8W, PJBW, Microchip, Microchip
