MCT-700 Monoprice Kit de Teste Multifunção para Rede

Name: MCT-700 Monoprice Kit de Teste Multifunção para Rede
Brand: Monoprice
SKU: MCT-700
Price: 905.00 BRL
Availability: InStock

RJ45, BNC, Speaker Wire Tone Generator | Tracer | Tester

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 905,00

à vista no Pix ou Boleto

ou R$ 951,89 em 1x no cartão (via site)

ou R$ 1.004,77 no cartão em até 10x sem juros (apenas na loja física)

R$ 905,00

à vista no Pix ou Boleto

R$ 951,89
em 1x no cartão (via site)

R$ 1.004,77 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

90304090

R$ 905,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 90304090

Cotação PJ mais de uma unidade

Indicar MCT-700

MCT-700 Monoprice Kit de Teste Multifunção para Rede
RJ45, BNC, Speaker Wire Tone Generator | Tracer | Tester

Condição de MCT-700: Novo em embalagem comercial

Garantia de MCT-700: 12 meses direto com a Net Computadores

The Monoprice 3-in-1 Tracer/Toner/Cable Tester is a professional tool used to test and troubleshoot RJ45, RJ11, and BNC cables. It can also be used to trace and identify individual wires within a wire bundle or group and can provide talk testing functionality between telephone units.

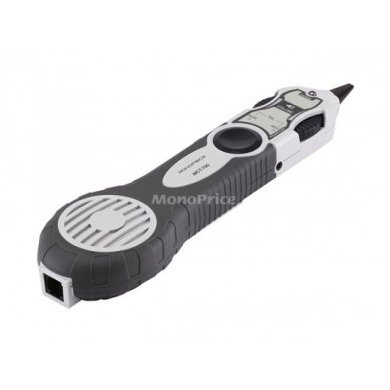

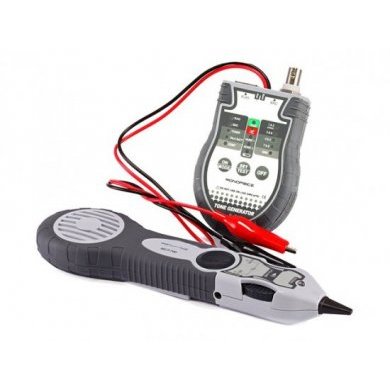

The tester is composed of two main units: the Tone Generator/Cable Tester and the Amplifier Probe with sensing tip. Each unit is constructed of plastic with the edges covered in rubber to improve grip. Each unit is powered by a 9 volt battery and two batteries are included in the packaging.

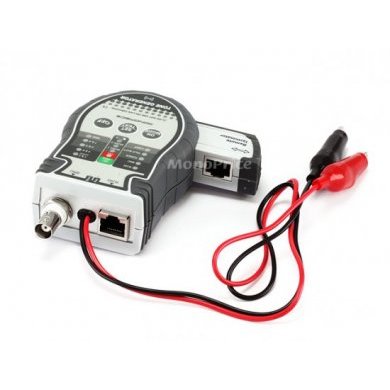

The Tone Generator/Cable Tester is the main testing unit and is used to test cable continuity for Coaxial cables, RJ45 and RJ11 cables, and for individual wires using the attached alligator clips. A detachable Remote Terminator is used for RJ45 and RJ11 cables to provide the continuity link at the remote end of the cable.
The Tone Generator portion of the tester is used to send a tone down an attached cable. The Amplifier Probe is then used at the other end to test individual cables in a bundle or group to find the one with the tone, thus identifying the cable. The Amplifier Probe can also be used at various points along a cable length to locate a break in the cable.
In Talk Batt mode, the tester provides the power and closes a telephone circuit to allow the phones to be tested for operation and the wires to be tested for continuity and clarity.
The tester has an auto-off functionality that kicks in after 20 seconds of non-use in all modes except the Toner and Talk Batt mode. These latter two modes will remain on without activity for 30 minutes before the tester automatically shuts down
Included in the Box:
1x Tone Generator/Cable Tester with attached Remote Terminator
1x Amplifier Probe
1x BNC to female F-type adapter
1x 50 ohm BNC terminator
1x BNC M/M 6" jumper cable
1x belt clip

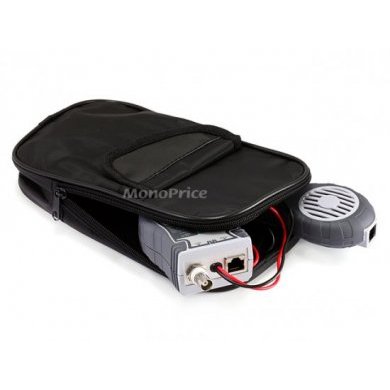

1x Nylon, zippered carrying bag with front pocket
2x 9 volt alkaline batteries

Tags de MCT-700: MCT-700, MCT700, VDV500-060, Multifunction RJ-45, BNC, and Speaker Wire Tone Generator | Tracer | Tester, VDV526-054, tese de rede, teste para rede, testador de rede, testador para rede, 8132, Ferramentas de Rede, Ferramentas para Rede, Lan Tester, Monoprice, Monoprice
