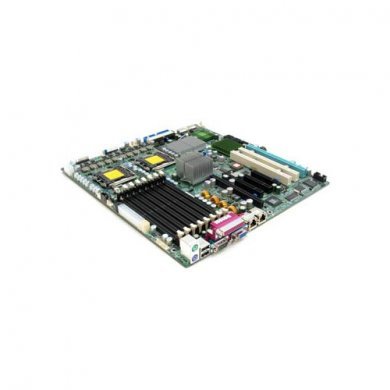

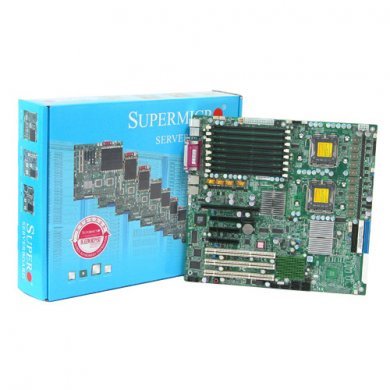

MDB-X7DB3-O SUPERMICRO Server Board Dual Xeon

Name: MDB-X7DB3-O SUPERMICRO Server Board Dual Xeon
Brand: SUPERMICRO
SKU: MDB-X7DB3-O
Price: 2204.00 BRL
Availability: InStock

Quad Core LGA771, 32GB ECC FB-DIMM, Controladora Adaptec SAS RAID, Vídeo ATI ES1000, 2x Gigabit LAN

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 2.204,00

à vista no Pix ou Boleto

ou R$ 2.319,97 em 1x no cartão (via site)

ou R$ 2.448,86 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.204,00

à vista no Pix ou Boleto

R$ 2.319,97
em 1x no cartão (via site)

R$ 2.448,86 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

36 meses direto com a Net Computadores

NCM:

84733041

Condição:
Novo em embalagem comercial

Garantia:
36 meses direto com a Net Computadores

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar MDB-X7DB3-O

MDB-X7DB3-O SUPERMICRO Server Board Dual Xeon
Quad Core LGA771, 32GB ECC FB-DIMM, Controladora Adaptec SAS RAID, Vídeo ATI ES1000, 2x Gigabit LAN

Condição de MDB-X7DB3-O: Novo em embalagem comercial

Garantia de MDB-X7DB3-O: 36 meses direto com a Net Computadores

Key Features

Quad & Dual Core Intel® 64-bit Xeon®
Support, 667 / 1066 / 1333MHz FSB

Intel® 5000P (Blackford) Chipset

Up to 32GB DDR2 667 & 533 SDRAM
Fully Buffered DIMM (FB-DIMM)

Intel® (ESB2/Gilgal) 82563EB Dual-port
Gigabit Ethernet Controller

Adaptec AIC-9410 Dual-Channel SAS
Controller, 8-port

6x SATA 3.0Gbps Ports via ESB2 Controller

2 (x8) & 1 (x4) PCI-Express,
2x 64-bit 133MHz PCI-X,
1x 64-bit 100MHz PCI-X

Zero-Channel RAID Support

ATI ES1000 Graphics with
16MB video memory

LP IPMI 2.0 (SIMLP) Slot

Physical Stats

Form Factor	Extended ATX
Dimensions	12" x 13.05" (30.5cm x 33.2cm)


Processor/Cache

CPU	Dual 771-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
System Bus	1333 / 1066 / 667 MHz system bus
Operating System Software	Supports 64-bit Operating Systems Supports 32-bit Operating Systems


System Memory

Memory Capacity	Eight 240-pin DIMM sockets Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs Memory Mirroring supported
Memory Type	667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	512 MB, 1GB, 2GB, 4GB
Memory Voltage	1.8V only 1.5V(AMB)
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)


On-Board Devices

Chipset	Intel® 5000P (Blackford) chipset MCH + PXH + ESB2
SATA	Intel ESB2 SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux)
SAS	Adaptec AIC-9410 Serial-Attached SCSI (SAS) Controller SAS Dual-Channel (internal) Each SAS channel supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives Host RAID 0, 1, & 10 support
RAID	Support for Zero-Channel RAID with AOC-LPZCR2 or AOC-LPZCR3 Optional: (Card not included) RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (SIMLP) (Optional: AOC-SIMLP-B(+)) (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
Network Controllers	Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	ATI ES1000 controller with 16 MB of video memory
Super I/O	Winbond 83627HG chip


Input / Output

SAS	Eight SAS / SATA (internal) ports Up to 8 SAS / SATA hard drives supported
Serial ATA	Six Serial ATA ports Six SATA hard drives supported
IDE	Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card Compact Flash (40-pin connector, IDE 1, single channel) slot Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	1 Floppy controller; 1.44 MB, 2.88 MB
LAN	2x RJ45 LAN ports
USB	2x USB rear ports 3x USB internal headers Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA	1x VGA Port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1 Fast UART 16550 serial port 1 Fast UART 16550 serial header
Parallel Port	1 ECP / EEP parallel port

Chassis ( Optimized for X7DB3 )

2U Chassis	CSE-825TQ-R700LPV CSE-825TQ-560LPV CSE-825TQ-560RCV CSE-825TQ-R700RCV CSE-823T-550LP
3U Chassis	CSE-836E1-R800 CSE-836E2-R800 CSE-833T-550 (SIMLC Support only) CSE-833T-R760 (SIMLC Support only) CSE-933E1-R760 CSE-933E2-R760 CSE-933T-R760 CSE-933TQ-R760
Tower / 4U Rackmount	CSE-745TQ-R800 CSE-745TQ-800 CSE-743TQ-R760 CSE-743T-R760 CSE-743T-650 CSE-743T-645 (FAN-0091 Required)
Important Chassis Notes	To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required]


Expansion Slots

PCI-Express	2 (x8) PCI-e slots 1 (x4) PCI-e (using x8) slot 1 SEPC (Supermicro PCI-e Power Connector) slot for 2U active riser cards with a power extension (i.e. CSE-RR2UE-AX)
PCI-X	2x 64-bit 133MHz PCI-X (3.3V) slots 1x 64-bit 100MHz PCI-X (3.3V) slot


System BIOS

BIOS Type	8Mb Flash EEPROM with Phoenix® BIOS
BIOS Features	Plug and Play (PnP) SMBIOS 2.3 DMI 2.1 PCI 2.2 ACPI 1.0 USB Keyboard support Hardware BIOS Virus protection


Management

Software	Optional IPMI (Intelligent Platform Management Interface) 2.0 Super Doctor III Watch Dog NMI
Power Configurations	ACPI Power Management Main Switch Override Mechanism Wake-On-Ring (WOR) header Wake-On-LAN (WOL) header Power-on mode for AC power recovery Internal / External modem remote ring-on


PC Health Monitoring

CPU	Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans 8x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors PSU I²C temperature sensing logic Thermal Monitor 2 (TM2) support
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support

Maiores detalhes de MDB-X7DB3-O no site do fabricante:
http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB3.cfm
