MEC1418-NU Ci Microchip Super I/O Embedded Controller QFP128

Ci virgem, sem gravação - original do fabricante

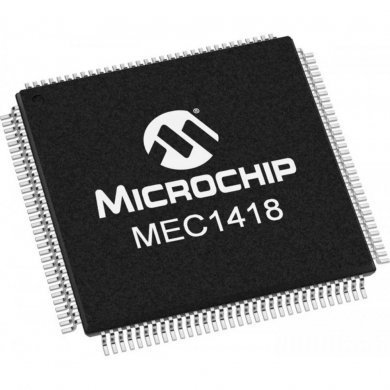

MEC1418-NU Ci Microchip Super I/O Embedded Controller QFP128

*As imagens podem ser ilustrativas

Ci Microchip Super I/O Embedded Controller QFP128

envio de 20 a 40 dias uteis

R$ 35,00

à vista no Pix ou Boleto

ou R$ 36,11 em 1x no cartão (via site)

ou R$ 38,12 no cartão em até 10x sem juros (apenas na loja física)

R$ 35,00

à vista no Pix ou Boleto

R$ 36,11
em 1x no cartão (via site)

R$ 38,12 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 35,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar MEC1418-NU

MEC1418-NU Ci Microchip Super I/O Embedded Controller QFP128
Ci virgem, sem gravação - original do fabricante

Condição de MEC1418-NU: Novo em embalagem comercial

Garantia de MEC1418-NU: 3 meses direto com a Net Computadores

Keyboard and Embedded Controller Products for Notebook PC
32bit Microcontrollers - MCU MEC, MIPS Core 192K SRAM, eSPI

3.3 V
MIPS32 M14K MIcrocontroller Core
Enhanced Serial Peripheral Interface (eSPI) or LPC Host Interface
ACPI 3.0 Compliant
PC2001 Compliant
VTR (standby) and VBAT (Power Planes)
Connected Standby Support
8042 Emulated Keyboard Controller
Secure Boot ROM Loader
System to EC Message Interface
Trace FIFO Debug Port (TFDP)
32-bit RTOS Timer

Manufacturer: Microchip
Product Category: 32-bit Microcontrollers - MCU
Series:   MEC1418
Mounting Style:   SMD/SMT
Package / Case:   VTQFP-128
Core: MIPS32 M14K
Program Memory Size: 192 kB
Data RAM Size:   32 kB
Data Bus Width:   32 bit
ADC Resolution:   10 bit
Maximum Clock Frequency: 48 MHz
Number of I/Os:   106 I/O
Supply Voltage - Min:   1.71 V
Supply Voltage - Max:   3.6 V
Minimum Operating Temperature:   0 C
Maximum Operating Temperature:   70 C
Packaging:   Tray
Analog Supply Voltage:   3.3 V
Brand:   Microchip Technology
DAC Resolution:   12 bit
Data RAM Type:   SRAM
Data ROM Type:   Boot
I/O Voltage:   3.3 V
Interface Type:   eSPI, I2C, LPC
Moisture Sensitive:   Yes
Number of ADC Channels:   8 Channel
Processor Series: MEC14xx
Product: MCUs
Product Type:   32-bit Microcontrollers - MCU

The MEC140X/1X family is a highly-configurable, mixed signal, advanced I/O controller architecture. MEC1418 is a keyboard and embedded controller customized for notebooks and tablet platforms. It incorporates a 32-bit MIPS32 M14K Microcontroller core with 192KB of closely-coupled SRAM for code and data that loads from SPI Flash. Designers can leverage the host SPI-flash (used for BIOS storage) for non-volatile EC firmware storage, as a cost-effective system solution.

Microchips MEC14XX family reduces the system bill-of-materials cost by providing a flexible arrangement that allows multiple I/O signals to be configured to support either 3.3V or 1.8V. This eliminates the need for external voltage translators. The MEC1418 communicates with the system host through the Intel Enhanced Serial Peripheral Interface (eSPI) or through Intels Low Pin Count (LPC).

All members of the MEC14XX family are pin and register compatible and are supported by Microchips development tools. Examples include the MPLAB XC Compilers, the MPLAB REAL ICE In-Circuit Emulator (part # DV244005), the MPLAB ICD 3 In-Circuit Debugger (part # DV164035) and the PICkit 3 Starter Kit (part # DV164130).

Family parts
MEC1418-I/NU
MEC1418-I/SZ
MEC1418-NU
MEC1418-SZ

Maiores detalhes de MEC1418-NU no site do fabricante:
https://www.microchip.com/en-us/product/mec1418
