Slave gateway, 12-48VDC, 0~60°C
R$ 10.692,00
à vista no Pix ou Boleto
ou R$ 11.254,09 em 1x no cartão (via site)
ou R$ 11.879,31 no cartão em até 10x sem juros (apenas na loja física)
R$ 10.692,00
à vista no Pix ou Boleto
R$ 11.254,09
em 1x no cartão (via site)
R$ 11.879,31 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 10.692,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85369090
Condição de MGATE 4101-MB-PBS: Novo em embalagem comercial
Garantia de MGATE 4101-MB-PBS: 12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | MGate 4101-MB-PBS: 340 mA @ 12 VDC, 130 mA @ 48 VDC MGate 4101I-MB-PBS: 375 mA @ 12 VDC, 140 mA @ 48 VDC |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Software | |
| Utilities | MGate Manager for Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| Operation Modes | RTU Slave, RTU Master, ASCII Slave, ASCII Master |
| Configuration Options | Serial Console, Windows Utility |
| Bonus Features | QuickLink, Paging |
| PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V0 Slave |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | Built-in (2KV) |
| Number of Ports | 1 |
| DIP Switch | For Termination |
| Rotary Switch | PROFIBUS address 0-99 (address 100-125 supported through software configuration) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | 500 g |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) |
| Housing | Metal |
| Reliability | |
| MTBF (mean time between failures) | 513,139 hrs |
| Modbus Serial Interface | |
| Flow Control | RTS/CTS, DTR/DSR (RS-232 only) |
| Data Bits | 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485, software selectable |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| ESD Protection | 15 KV for all signals |
| Number of Ports | 1 |
| Pull High/Low Resistor for RS-485 | 1 K, 150 K |
| Terminator for RS-485 | 120 |
| Baudrate | 50 bps to 921.6 Kbps |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11, EN 61000-4-12 |
| EMC | CE, FCC |
| Freefall | IEC 60068-2-23 |
Maiores detalhes de MGATE 4101-MB-PBS no site do fabricante:
moxastore.express-inc.com/NPORTW2150A_US_p/nportw2150a-us.htm
Tags de MGATE 4101-MB-PBS: MGATE 4101-PBM-MN, MGATE 4101PBMMN, MGATE 4101 PBM MN, MGATE4101PBMMN, MGATE 4101, MGATE4101, gateways moxa, gateway moxa, moxa gateway, Moxa Gateway Profibus, gateway serial, gateway Profibus, MGATE-5109, MGATE 4101-PBM-MN, MOXA

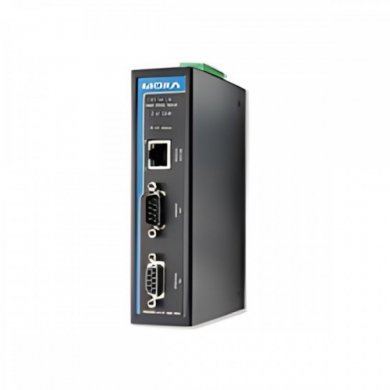

MGATE 4101-MB-PBS Moxa MGate 4101 Series 1-port Modbus to PROFIBUS Slave gateway, 12-48VDC, 0~60°C
Condição de MGATE 4101-MB-PBS:
Novo em embalagem comercial
Garantia de MGATE 4101-MB-PBS:
12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | MGate 4101-MB-PBS: 340 mA @ 12 VDC, 130 mA @ 48 VDC MGate 4101I-MB-PBS: 375 mA @ 12 VDC, 140 mA @ 48 VDC |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block |
| Software | |
| Utilities | MGate Manager for Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| Operation Modes | RTU Slave, RTU Master, ASCII Slave, ASCII Master |
| Configuration Options | Serial Console, Windows Utility |
| Bonus Features | QuickLink, Paging |
| PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V0 Slave |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | Built-in (2KV) |
| Number of Ports | 1 |
| DIP Switch | For Termination |
| Rotary Switch | PROFIBUS address 0-99 (address 100-125 supported through software configuration) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Physical Characteristics | |
| Weight | 500 g |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) |
| Housing | Metal |
| Reliability | |
| MTBF (mean time between failures) | 513,139 hrs |
| Modbus Serial Interface | |
| Flow Control | RTS/CTS, DTR/DSR (RS-232 only) |
| Data Bits | 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485, software selectable |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| ESD Protection | 15 KV for all signals |
| Number of Ports | 1 |
| Pull High/Low Resistor for RS-485 | 1 K, 150 K |
| Terminator for RS-485 | 120 |
| Baudrate | 50 bps to 921.6 Kbps |
| Serial Signals | |
| RS-485-4w | Tx , Tx-, Rx , Rx-, GND |
| RS-485-2w | Data , Data-, GND |
| RS-422 | Tx , Tx-, Rx , Rx-, GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Safety | UL 60950-1, EN 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11, EN 61000-4-12 |
| EMC | CE, FCC |
| Freefall | IEC 60068-2-23 |
Maiores detalhes de MGATE 4101-MB-PBS no site do fabricante:
moxastore.express-inc.com/NPORTW2150A_US_p/nportw2150a-us.htm
Tags de MGATE 4101-MB-PBS: MGATE 4101-PBM-MN, MGATE 4101PBMMN, MGATE 4101 PBM MN, MGATE4101PBMMN, MGATE 4101, MGATE4101, gateways moxa, gateway moxa, moxa gateway, Moxa Gateway Profibus, gateway serial, gateway Profibus, MGATE-5109, MGATE 4101-PBM-MN, MOXA
