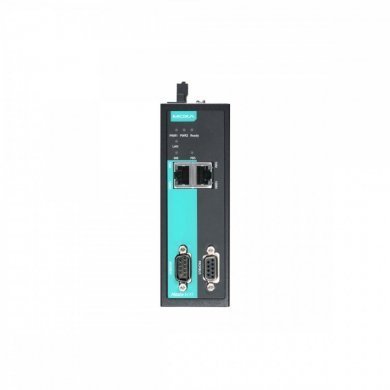

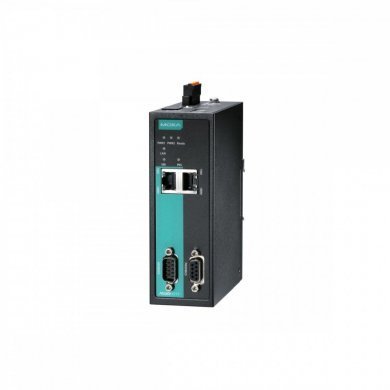

MGATE-5111 Moxa MGate 5111 Series 1-port PROFINET/EtherNet/IP

MGATE-5111 Moxa MGate 5111 Series 1-port PROFINET/EtherNet/IP 1-port Modbus RTU/ASCII/TCP-to-DNP3 serial/TCP/UDP gateways

Condição de MGATE-5111:
Novo em embalagem comercial

Garantia  de  MGATE-5111:
12 meses direto com a Net Computadores

• 10/100BaseT(X) Ports (RJ45 connector)
    2
  Auto MDI/MDI-X connection

• Magnetic Isolation Protection
    1.5 kV (built-in)


• Industrial Protocols
    Modbus TCP Client (Master)
  Modbus TCP Server (Slave)
  PROFINET IO Device
  EtherNet/IP Adapter

• Configuration Options
    Web Console (HTTP/HTTPS)
  Device Search Utility (DSU)
  Telnet Console

• Management
    ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  Telnet
  SSH
  UDP
  NTP Client

• MIB
    RFC1213, RFC1317

• Time Management
    NTP Client


• Console Port
    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

• No. of Ports
    1

• Connector
    DB9 male

• Serial Standards
    RS-232/422/485

• Baudrate
    50 bps to 921.6 kbps

• Data Bits
    7, 8

• Parity
    None
  Even
  Odd
  Space
  Mark

• Stop Bits
    1, 2

• Flow Control
    RTS Toggle (RS-232 only)
  RTS/CTS

• RS-485 Data Direction Control
    Automatic Data Direction Control (ADDC)

• Pull High/Low Resistor for RS-485
    1 kilo-ohm, 150 kilo-ohms

• Terminator for RS-485
    120 ohms

• Isolation
    2 kV (built-in)


• RS-232
    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422
    Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w
    Data+, Data-, GND

• RS-485-4w
    Tx , Tx-, Rx , Rx-, GND


• Configuration Options
    Serial Console

• Industrial Protocols
    PROFIBUS DP-V0 Slave
  Modbus RTU/ASCII Master
  Modbus RTU/ASCII Slave


• Mode
    Master, Slave

• Functions Supported
    1, 2, 3, 4, 5, 6, 15, 16, 23

• Max. No. of Commands
    128

• Input Data Size
    2048 bytes

• Output Data Size
    2048 bytes


• Mode
    Client (Master), Server (Slave)

• Functions Supported
    1, 2, 3, 4, 5, 6, 15, 16, 23

• Max. No. of Client Connections
    16

• Max. No. of Server Connections
    32

• Max. No. of Commands
    128

• Input Data Size
    2048 bytes

• Output Data Size
    2048 bytes


• Industrial Protocols
    PROFIBUS DP

• No. of Ports
    1

• Connector
    DB9 female

• Baudrate
    9600 bps to 12 Mbps

• Isolation
    2 kV (built-in)

• Signals
    PROFIBUS D , PROFIBUS D-, RTS, Signal Common, 5V


• Rotary Switch
    PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)

• Mode
    DP-V0 Slave

• Max. No. of Master Connections
    1

• Max. No. of PROFIBUS I/O Modules
    24

• Input Data Size
    244 bytes

• Output Data Size
    244 bytes


• Mode
    IO Device

• Max. No. of IO Controller Connections
    1 (for read/write)

• Input Data Size
    512

• Output Data Size
    512


• Mode
    Adapter

• CIP Objects Supported
    Identity
  Message Router
  Assembly
  Connection Manager
  TCP/IP interface
  Ethernet link
  Port

• Max. No. of Scanner Connections
    1 (for read-only), 1 (for read/write)

• Input Data Size
    496 bytes

• Output Data Size
    496 bytes


• microSD Slot
    Up to 32 GB (SD 2.0 compatible)


• Input Voltage
    12 to 48 VDC

• Input Current
    416 mA @ 12 VDC

• Power Connector
    Spring-type Euroblock terminal


• Contact Current Rating
    Resistive load: 2 A @ 30 VDC


• Housing
    Metal

• IP Rating
    IP30

• Dimensions
    45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)

• Weight
    589 g (1.30 lb)


• Operating Temperature
    MGate 5111: 0 to 60C (32 to 140F)
  MGate 5111-T: -40 to 75C (-40 to 167F)

• Storage Temperature (package included)
    -40 to 85C (-40 to 185F)

• Ambient Relative Humidity
    5 to 95% (non-condensing)


• EMC
    EN 61000-6-2/-6-4

• EMI
    CISPR 32, FCC Part 15B Class A

• EMS
    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF

• Safety
    EN 62368-1
  UL 61010-2-201

• Hazardous Locations
    ATEX
  Class I Division 2
  IECEx

• Freefall
    IEC 60068-2-32

• Shock
    IEC 60068-2-27

• Vibration
    IEC 60068-2-6
  IEC 60068-2-64


• Time
    718,131 hrs

• Standards
    Telcordia SR332
