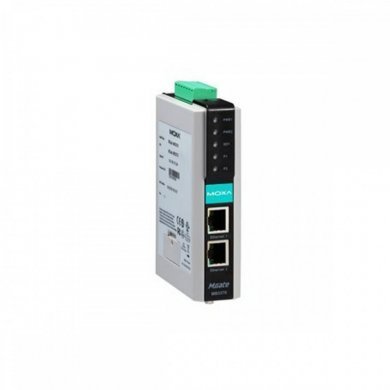

MGATE-MB3270 MOXA CONVERSOR 2 PORTAS RS232/422/485

Name: MGATE-MB3270 MOXA CONVERSOR 2 PORTAS RS232/422/485
Brand: MOXA
SKU: MGATE-MB3270
Price: 8099.00 BRL
Availability: InStock

Modbus TCP to Modbus Serial ASCII/RTU, Class 1 Div 2, DIN Rail, 15KV Surge

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 8.099,00

à vista no Pix ou Boleto

ou R$ 8.525,26 em 1x no cartão (via site)

ou R$ 8.998,89 no cartão em até 10x sem juros (apenas na loja física)

R$ 8.099,00

à vista no Pix ou Boleto

R$ 8.525,26
em 1x no cartão (via site)

R$ 8.998,89 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85369090

R$ 8.099,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85369090

Cotação PJ mais de uma unidade

Indicar MGATE-MB3270

MGATE-MB3270 MOXA CONVERSOR 2 PORTAS RS232/422/485
Modbus TCP to Modbus Serial ASCII/RTU, Class 1 Div 2, DIN Rail, 15KV Surge

Condição de MGATE-MB3270: Novo em embalagem comercial

Garantia de MGATE-MB3270: 12 meses direto com a Net Computadores

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
Optical Fiber
Ethernet Software Features
Industrial Protocols Modbus TCP Server (Slave)
Configuration Options Telnet Console
Management NTP Client
MIB RFC1213, RFC1317
Time Management NTP Client
Security Functions
Authentication Local database
Encryption SHA-256
Security Protocols HTTPS (TLS 1.2)
Serial Interface
No. of Ports MGate MB3270 models: 2
Connector MGate MB3270 models: 2 x DB9 male
Serial Standards RS-232/422/485 (software selectable)
Baudrate 50 bps to 921.6 kbps
Data Bits 7, 8
Parity Mark
Stop Bits 1, 2
Flow Control RTS/CTS
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485 120 ohms
Isolation I models: 2 kV
RS-485 Data Direction Control ADDC (automatic data direction control)
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx , Tx-, Rx , Rx-, GND
RS-485-2w Data , Data-, GND
RS-485-4w Tx , Tx-, Rx , Rx-, GND
Serial Software Features
Industrial Protocols Modbus RTU/ASCII Slave
Modbus (Transparent)
Max. No. of Client Connections 32
Max. No. of Server Connections 32
Power Parameters
Input Voltage 12 to 48 VDC
Input Current MGate MB3270I/MB3170-M-SC/MB3170-M-ST: 510 mA @ 12 VDC
Power Connector 7-pin terminal block
Relays
Contact Current Rating Resistive load: 1 A @ 30 VDC
Physical Characteristics
Housing Plastic
IP Rating IP30
Dimensions (with ears) 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
Dimensions (without ears) 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Weight MGate MB3270 models: 380 g (0.84 lb)
Environmental Limits
Operating Temperature Wide temp. models: -40 to 75C (-40 to 167F)
Storage Temperature (package included) -40 to 85C (-40 to 185F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-11
Hazardous Locations IECEx
Maritime DNV
Freefall IEC 60068-2-32
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
Safety UL 508
MTBF
Time MGate MB3170I-M/-S models: 1,385,414 hrs
Standards Telcordia SR332
