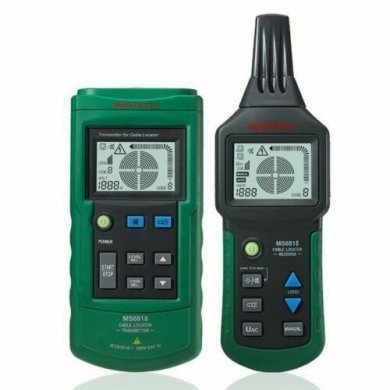

MS6818S Mastech Testador de Cabo 12-400V AC / DC

Name: MS6818S Mastech Testador de Cabo 12-400V AC / DC
Brand: Mastech
SKU: MS6818S
Price: 2240.00 BRL
Availability: InStock

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 2.240,00

à vista no Pix ou Boleto

ou R$ 2.357,28 em 1x no cartão (via site)

ou R$ 2.488,24 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.240,00

à vista no Pix ou Boleto

R$ 2.357,28
em 1x no cartão (via site)

R$ 2.488,24 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

90304090

R$ 2.240,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 90304090

Cotação PJ mais de uma unidade

Indicar MS6818S

MS6818S Mastech Testador de Cabo 12-400V AC / DC

Condição de MS6818S: Novo em embalagem comercial

Garantia de MS6818S: 12 meses direto com a Net Computadores

Description:
Brand Name: Mastech
Model Number: MS6818S
Detecting cables, electrical lines, water / gas supply pipelines buried in wall or earth
Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth
Detecting fuses and assigning current circuits
Detecting interruptions and short-circults in floor heating
Detecting sockets and distribution sockets having accidentally been covered by plastering
Features:
The transmitter is integrated with the function of AC / DC voltmeter, which can measure 12 to 400V AC / DC voltage on a linear basis.

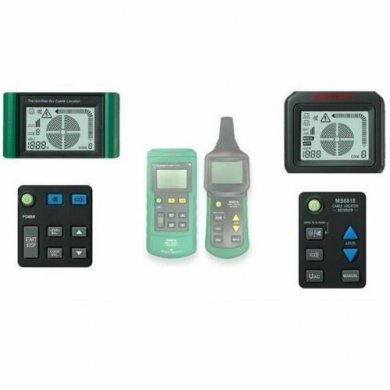

The screen of the transmitter can display preset transmitting power, transmitted codes, its own battery energy, mains voltage detected, AC / DC status of mains voltage detected, and warning symbol for mains voltage.
The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for users reference
The sensitivity of the receiver can be adjusted either manually or automatically
The receiver can sweep frequency automatically, both the transmitter and the receiver can work under mute mode
Additional transmitters are available for expansion or to differentiate between multiple signals compactness, durability and portability
Specification:
Technical Specifications:
Voltage Measurement Range: Transmitter: 12V-400V (AC / DC)
Output Signal: Transmitter: 125KHz
Voltage: Transmitter: maximum 400V (AC / DC)
Cable Depth Measurement: Receiver 0-2.5 m (wall / underground cable)
Main Voltage Measurement: Receiver 0-0.4m
Environment Specifications:

Work Environment: Transmitter: 0 ~ 40 ° c; Receiver: 0 ~ 40 ° c
Storage Temperature: Transimiter: -20 ° c ~ 60 ° c; Receiver: -20 ° c ~ 60 ° c
Relative hamidity (no condensation): Transmitter Maximum: 80%; Receiver Maximum: 80%
Measuring Height: Transmitter Maximum: 2000m; Receiver Maximum: 2000m
Battery: 6 x 1.5v AAA Battery (NOT included) 1 x 9V Battery (NOT included)

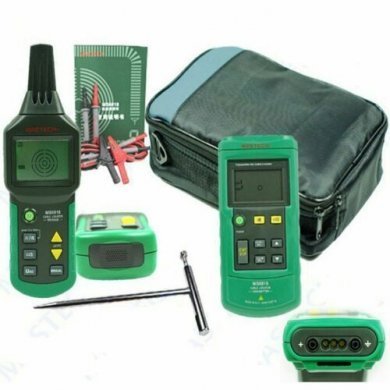

Package included:
1 x Mastech MS6818S Receiver
1 x Transmitter
1 x Test Leads (Black e Red)
1 x Test Probe (Black

Tags de MS6818S: MS6818S, MS6818, Mastech MS6818S, Rastreador Avançado de Fio, Localizador de Tubo, Detector de Cabo de Rede e Telefone, Testador de Cabo com Lanterna, Mastech
