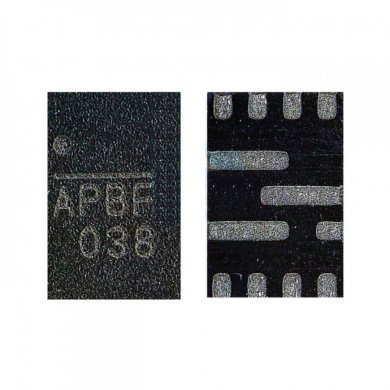

NB680 Ci NB680AGD-Z Buck Converter 26V 3.36V 8A QFN-16

Name: NB680 Ci NB680AGD-Z Buck Converter 26V 3.36V 8A QFN-16
Brand: MPS
SKU: NB680
Price: 29.00 BRL
Availability: InStock

28V Low Iq High Current Fixed 3.36V 8A Synchronous Buck Converter with 100mA LDO and LP

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 29,00

à vista no Pix ou Boleto

ou R$ 30,53 em 1x no cartão (via site)

ou R$ 32,22 no cartão em até 10x sem juros (apenas na loja física)

R$ 29,00

à vista no Pix ou Boleto

R$ 30,53
em 1x no cartão (via site)

R$ 32,22 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar NB680

NB680 Ci NB680AGD-Z Buck Converter 26V 3.36V 8A QFN-16
28V Low Iq High Current Fixed 3.36V 8A Synchronous Buck Converter with 100mA LDO and LP

Condição de NB680: Novo em embalagem comercial

Garantia de NB680: 7 dias troca. Sem garantia após soldado

FEATURES
Wide 5.5V to 28V Operating Input Range
Fixed 3.36V VOUT( 1.8% of 3.3V)
LP Output Voltage Scaling (3% of 3.3V)
Ultrasonic Mode
100A Low Quiescent Current
8A Continuous and 10A Peak Output Current
Adaptive COT for Fast Transient
DC AutoTune Loop
Stable with POSCAP and Ceramic Output Capacitors
250 kHz CLK for External Charge Pump
BuiltIn 3.3V, 100mA LDO with Switch Over
1% Reference Voltage
Internal Soft Start
Output Discharge
700kHZ Switching Frequency
OCP, OVP, UVP, and Thermal Shutdown
LatchOff Reset via EN or Power Cycle

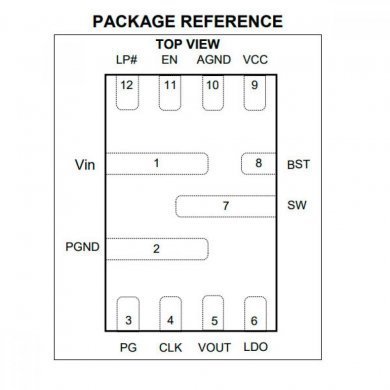

QFN12 2mm x 3mm Package

APPLICATIONS
Laptop Computers
Tablet PCs
Networking Systems
Servers
Flat Panel Televisions and Monitors
Distributed Power Systems

Manufacturer:	Monolithic Power Systems (MPS)
Product Category:	Switching Voltage Regulators

Mounting Style:	SMD/SMT
Package / Case:	QFN12
Topology:	Buck
Output Voltage:	3.36 V
Output Current:	8 A
Number of Outputs:	1 Output
Input Voltage, Min:	5.5 V
Input Voltage, Max:	26 V
Switching Frequency:	700 kHz
Series:	NB680A
Packaging:	Reel
Brand:	Monolithic Power Systems (MPS)
Input Voltage:	5.5 V to 26 V
Operating Supply Current:	100 uA
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators
Shutdown:	Shutdown

Maiores detalhes de NB680 no site do fabricante:
https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/

Tags de NB680: NB680, NB680A, NB680AGD, NB680AGDZ, NB681, MPS
