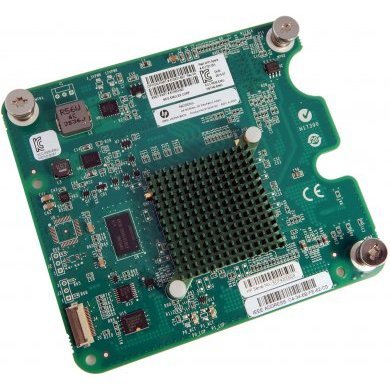

NC553M HPE 10Gb 2x Port FlexFabric Adapter

Name: NC553M HPE 10Gb 2x Port FlexFabric Adapter
Brand: Hewlett Packard
SKU: NC553M
Price: 336.00 BRL
Availability: InStock

Novo reembalado, já aberto por um cliente

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 336,00

à vista no Pix ou Boleto

ou R$ 353,54 em 1x no cartão (via site)

ou R$ 373,18 no cartão em até 10x sem juros (apenas na loja física)

R$ 336,00

à vista no Pix ou Boleto

R$ 353,54
em 1x no cartão (via site)

R$ 373,18 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo reembalado, já aberto por um cliente

Garantia:

12 meses direto com a Net Computadores

NCM:

85176259

R$ 336,00

à vista no pix

Comprar

Condição:
Novo reembalado, já aberto por um cliente

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar NC553M

NC553M HPE 10Gb 2x Port FlexFabric Adapter

Condição de NC553M: Novo reembalado, já aberto por um cliente

Garantia de NC553M: 12 meses direto com a Net Computadores

Outros PNs para este item: 613431-B21, 613433-001, 617727-001, HSTNS-BN70 T3-B17,

The NC553m FlexFabric 10Gb mezzanine adapter supports Virtual Connect Flex-10 that allows each 10Gb port to be divided into four physical NICs to optimize bandwidth management for virtualized servers.

Feature	Description
HP NC553m 10Gb 2-port FlexFabric Adapter	Model number: 613431-B21 Spare part: 617727-001
Dual-port 10 gigabit ethernet throughput	The NC553m 20,000 Mb/s full duplex Ethernet has transfer rate per port of 40 Gb/s aggregate full duplex.
Fibre Channel over Ethernet (FCoE)	Combines the functionality of an industry-standard NIC with an industry-proven Fibre Channel mezzanine card.
HP Virtual connect FlexFabric 10Gb/24-port module for BladeSystem c- Class	10Gb when paired with the HP Virtual Connect FlexFabric 10Gb/24-port Module. Speeds can be set per NIC from 100Mb to 10Gbs in 100Mb increments.
Jumbo frames	The NC553m support for jumbo frames (also known as extended frames) permits up to a 9KB transmission unit (MTU).
802.1p QoS tagging	IEEE quality of service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-aware network.
TCP/IP stateless offloading	The NC553m supports standard TCP/IP stateless offloading techniques including. TCP/IP checksum offload (TCO). Large send offload (LSO), also known as TCP segmentation offload (TSO).
802.1Q VLANs	IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC553m to be separated into multiple virtual NICs.
TOE	TCP/IP Offload Engine (TOE) moves the processing of data in the TCP protocol stack from the server CPU to the network card.
RDMA	Not Supported
iSCSI	The NC553m supports accelerated iSCSI and iSCSI INT 13 Boot
Supported interconnect modules1	HP 6120XG Blade Switch HP 6120G/XG Blade Switch HP 6125G Blade Switch HP 6125G/XG Blade Switch HP GbE2c Layer 2/3 Ethernet Blade Switch HP 1:10Gb Ethernet BL-c Switch Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem Cisco Catalyst Blade Switch 3120X/G for HP c-Class BladeSystem HP 10GbE Pass-Thru Module HP Virtual Connect Flex-10 10Gb Ethernet Module HP Virtual Connect FlexFabric 10Gb/24-port Module HP Virtual Connect 1/10Gb Ethernet Module HP Virtual Connect 1/10Gb-F Ethernet Module Cisco Fabric Extender B22HP for HP
Server support	HP ProLiant BL2x220c G6 HP ProLiant BL280c G6 HP ProLiant BL460c G6 HP ProLiant BL460c G7 HP ProLiant BL465 G6 HP ProLiant BL465 G7 HP ProLiant BL490c G6 HP ProLiant BL490c G7 HP ProLiant BL495c G6 HP ProLiant BL620c G7 HP ProLiant BL680c G7 HP ProLiant BL685c G6 HP ProLiant BL685c G7
Integrity servers supported	HP Integrity BL860c i2 HP Integrity BL860c i4 HP Integrity BL870c i2 HP Integrity BL870c i4 HP Integrity BL890c i2 HP Integrity BL890c i4
Storage support	HP BladeSystem ProLiant Server Blades HP 2000i G2 Modular Smart Array HP All-in-One Storage HP MPX200 Multifunction Router HP EVA iSCSI Connectivity Option HP 4/256 SAN Director iSCSI Blade (FCoE only, iSCSI not supported) HP LeftHand P4000 SAN HP LeftHand Virtual SAN Appliance HP Enterprise Virtual Array 4000/6000/8000 (2Gb) HP Enterprise Virtual Array 4100/6100/8100 (4Gb) HP Enterprise Virtual Array 4400 HP Enterprise Virtual Array 4400s HP Enterprise Virtual Array 6400/8400 HP MSA2000 G2 FC Array System HP P2000 G3 FC Array System HP Disk Array XP10000/12000 HP Disk Array XP20000/24000 (4Gb) HP Disk Array XP20000/24000 (8Gb) HP BladeSystem c-Class Integrity Server Blades HP P2000 G3 FC Array System HP 4400/6400/8400 Enterprise Virtual Array HP P6300/P6500 Enterprise Virtual Array HP XP20000-XP 24000 Disk Array (4Gb) HP XP20000-XP 24000 Disk Array (8Gb) HP P9500 Disk Array HP P10000 3PAR Storage Systems
FCoE switch support	HP Nexus 5000 converged network switches HP StorageWorks converged network switches HP 10/24 FCoE Blade for DC SAN directors
NOTE: 1: Except for the HP Virtual Connect FlexFabric 10Gb/24-port Module for BladeSystem c-Class, the ProCurve 6120XG and the HP 10GbE Pass-Thru Module, all other supported interconnects are limited to 1Gb per port connection.

Maiores detalhes de NC553M no site do fabricante:
https://support.hpe.com/hpsc/doc/public/display?docId=emr_na-c02733538

Tags de NC553M: 613431-B21, 613433-001, 617727-001, HSTNS-BN70 T3-B17, NC553M, HP NC553m 10Gb 2-port FlexFabric Adapter, placa de rede HP 10GB, Placa 10Giga, Hewlett Packard, Hewlett Packard

NC553M HPE 10Gb 2x Port FlexFabric Adapter

Condição de NC553M:
Novo reembalado, já aberto por um cliente

Garantia de NC553M:
12 meses direto com a Net Computadores

Outros PNs para este componente: 613431-B21, 613433-001, 617727-001, HSTNS-BN70 T3-B17,

Feature	Description
HP NC553m 10Gb 2-port FlexFabric Adapter	Model number: 613431-B21 Spare part: 617727-001
Dual-port 10 gigabit ethernet throughput	The NC553m 20,000 Mb/s full duplex Ethernet has transfer rate per port of 40 Gb/s aggregate full duplex.
Fibre Channel over Ethernet (FCoE)	Combines the ality of an industry-standard NIC with an industry-proven Fibre Channel mezzanine card.
HP Virtual connect FlexFabric 10Gb/24-port module for BladeSystem c- Class	10Gb when paired with the HP Virtual Connect FlexFabric 10Gb/24-port Module. Speeds can be set per NIC from 100Mb to 10Gbs in 100Mb increments.
Jumbo frames	The NC553m support for jumbo frames (also known as extended frames) permits up to a 9KB transmission unit (MTU).
802.1p QoS tagging	IEEE quality of service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-aware network.
TCP/IP stateless offloading	The NC553m supports standard TCP/IP stateless offloading techniques including. TCP/IP checksum offload (TCO). Large send offload (LSO), also known as TCP segmentation offload (TSO).
802.1Q VLANs	IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC553m to be separated into multiple virtual NICs.
TOE	TCP/IP Offload Engine (TOE) moves the processing of data in the TCP protocol stack from the server CPU to the network card.
RDMA	Not Supported
iSCSI	The NC553m supports accelerated iSCSI and iSCSI INT 13 Boot
Supported interconnect modules1	HP 6120XG Blade Switch HP 6120G/XG Blade Switch HP 6125G Blade Switch HP 6125G/XG Blade Switch HP GbE2c Layer 2/3 Ethernet Blade Switch HP 1:10Gb Ethernet BL-c Switch Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem Cisco Catalyst Blade Switch 3120X/G for HP c-Class BladeSystem HP 10GbE Pass-Thru Module HP Virtual Connect Flex-10 10Gb Ethernet Module HP Virtual Connect FlexFabric 10Gb/24-port Module HP Virtual Connect 1/10Gb Ethernet Module HP Virtual Connect 1/10Gb-F Ethernet Module Cisco Fabric Extender B22HP for HP
Server support	HP ProLiant BL2x220c G6 HP ProLiant BL280c G6 HP ProLiant BL460c G6 HP ProLiant BL460c G7 HP ProLiant BL465 G6 HP ProLiant BL465 G7 HP ProLiant BL490c G6 HP ProLiant BL490c G7 HP ProLiant BL495c G6 HP ProLiant BL620c G7 HP ProLiant BL680c G7 HP ProLiant BL685c G6 HP ProLiant BL685c G7
Integrity servers supported	HP Integrity BL860c i2 HP Integrity BL860c i4 HP Integrity BL870c i2 HP Integrity BL870c i4 HP Integrity BL890c i2 HP Integrity BL890c i4
Storage support	HP BladeSystem ProLiant Server Blades HP 2000i G2 Modular Smart Array HP All-in-One Storage HP MPX200 Multi Router HP EVA iSCSI Connectivity Option HP 4/256 SAN Director iSCSI Blade (FCoE only, iSCSI not supported) HP LeftHand P4000 SAN HP LeftHand Virtual SAN Appliance HP Enterprise Virtual Array 4000/6000/8000 (2Gb) HP Enterprise Virtual Array 4100/6100/8100 (4Gb) HP Enterprise Virtual Array 4400 HP Enterprise Virtual Array 4400s HP Enterprise Virtual Array 6400/8400 HP MSA2000 G2 FC Array System HP P2000 G3 FC Array System HP Disk Array XP10000/12000 HP Disk Array XP20000/24000 (4Gb) HP Disk Array XP20000/24000 (8Gb) HP BladeSystem c-Class Integrity Server Blades HP P2000 G3 FC Array System HP 4400/6400/8400 Enterprise Virtual Array HP P6300/P6500 Enterprise Virtual Array HP XP20000-XP 24000 Disk Array (4Gb) HP XP20000-XP 24000 Disk Array (8Gb) HP P9500 Disk Array HP P10000 3PAR Storage Systems
FCoE switch support	HP Nexus 5000 converged network switches HP StorageWorks converged network switches HP 10/24 FCoE Blade for DC SAN directors
NOTE: 1: Except for the HP Virtual Connect FlexFabric 10Gb/24-port Module for BladeSystem c-Class, the ProCurve 6120XG and the HP 10GbE Pass-Thru Module, all other supported interconnects are limited to 1Gb per port connection.
