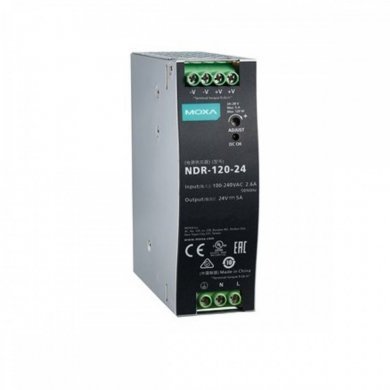

NDR-120-24 Moxa fonte de alimentacao DIN 120W 24VDC 5.0 A

NDR-120-24 Moxa fonte de alimentacao DIN 120W 24VDC 5.0 A DIN-rail 24 VDC power supply, universal 90 to 264 VAC or 127 to 370 VDC input voltage, -20 to 70°C

Condição de NDR-120-24:
Novo em embalagem comercial

Garantia  de  NDR-120-24:
12 meses direto com a Net Computadores

• 120 W

• 24 VDC

• 0 to 5 A

• 120 mVp-p

• 24 to 28 VDC

• 2500 ms, 60 ms at 115 VAC
  1200 ms, 60 ms at 230 VAC

• 10 ms at 115 VAC
  16 ms at 230 VAC

• 88%

• 1.3 A @ 230 VAC, 2.25 A @ 115 VAC

• 90 to 264 VAC (47 to 63 Hz)
  127 to 370 VDC

• 35 A @ 230 VAC, 20 A @ 115 VAC

• 105 to 160%

• Constant current limiting, recovers automatically after fault condition is removed

• 29 to 33 V

• Shut down operating voltage, repower on to recover

• Metal

• 123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in)

• 500 g (1.10 lb)

• -20 to 65C (-4 to 149F)

• -40 to 85C (-40 to 185F)

• 20 to 95% (non-condensing)

• 45C (113F)

• UL 508, EN 62368-1, IEC 62368-1

• EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3

• IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11

• MIL-HDBK-217F

• 453,334 hrs
