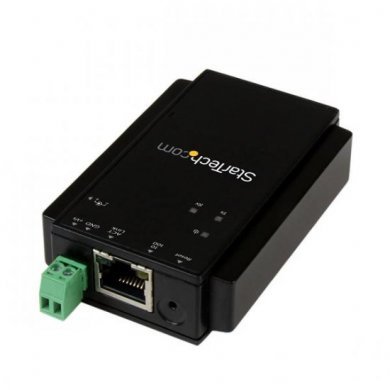

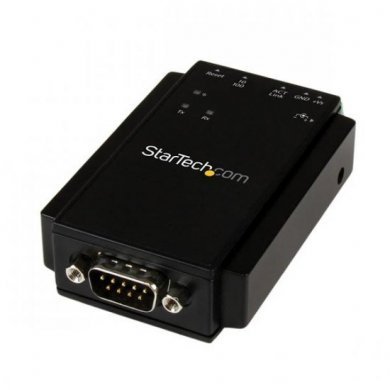

NETRS232 StarTech 1-Port Serial to IP Ethernet

NETRS232 StarTech 1-Port Serial to IP Ethernet Device Server

Condição de NETRS232:
Novo em embalagem comercial

Garantia  de  NETRS232:
12 meses direto com a Net Computadores

Hardware
Industry Standards IEEE 802.3, IEEE 802.3u
Interface Serial
Ports 1
Performance
Auto MDIX Yes
Compatible Networks 10/100 Mbps
Data Bits 5, 6, 7, 8
Flow Control RTS/CTS, None
Max Baud Rate 230.4 Kbps
Parity None, Even, Odd, Space, Mark
Remote Management Ability Yes
Serial Protocol RS-232
Stop Bits 1, 1.5, 2
Supported Protocols VCOM, TCP Server, TCP Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, ARP
Surge Protection 15KV ESD (Electrostatic Discharge) Protection
Connector(s)
Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male
1 - RJ-45 Female
1 - Terminal Block (2 Wire)
Software
OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1
Windows® Server 2003, 2008 R2, 2012, 2012 R2
Indicators
LED Indicators 1 - Power
1 - Tx
1 - Rx
1 - 10/100Mbps LAN
1 - Link/Activity
Power
Center Tip Polarity Positive
Input Current 0.5 A
Input Voltage 100 ~ 240 AC
Output Current 1.2 A
Output Voltage 12 DC
Plug Type H
Power Consumption 14.4 W Max
Power Source AC Adapter Included
Environmental
Humidity 0~90% RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.9 in [22 mm]
Product Length 3.7 in [95 mm]
Product Weight 2.2 oz [63 g]
Product Width 2.2 in [55 mm]
Packaging Information
Shipping (Package) Weight 15.3 oz [433 g]

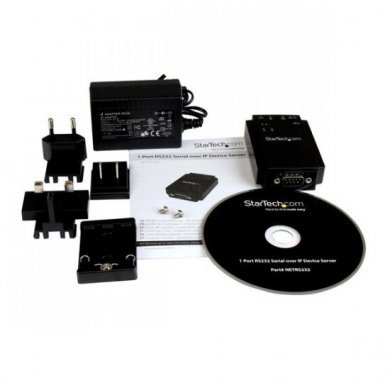

Whats in the Box
Included in Package 1 - Serial over IP Device Server
1 - DIN Rail Kit
1 - Terminal Block
1 - Universal Power Adapter (NA/UK/EU) and AU in Australia
1 - Software CD
1 - Instruction Manual
