NF-8208 NOYAFA Testador e Gerador de Tom para Redes

Name: NF-8208 NOYAFA Testador e Gerador de Tom para Redes
Brand: NOYAFA - SHENZHEN NOYAFA ELECTRONIC CO
SKU: NF-8208
Price: 1561.00 BRL
Availability: InStock

Localize a fiaçao ou erros de conexão CAT5 CAT6 Coaxial e Linha telefonica

NF-8208 - NOYAFA - SHENZHEN NOYAFA ELECTRONIC CO

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.561,00

à vista no Pix ou Boleto

ou R$ 1.642,74 em 1x no cartão (via site)

ou R$ 1.734,00 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.561,00

à vista no Pix ou Boleto

R$ 1.642,74
em 1x no cartão (via site)

R$ 1.734,00 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

90303100

R$ 1.561,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 90303100

Cotação PJ mais de uma unidade

Indicar NF-8208

NF-8208 NOYAFA Testador e Gerador de Tom para Redes
Localize a fiaçao ou erros de conexão CAT5 CAT6 Coaxial e Linha telefonica

Condição de NF-8208: Novo em embalagem comercial

Garantia de NF-8208: 12 meses direto com a Net Computadores

Description

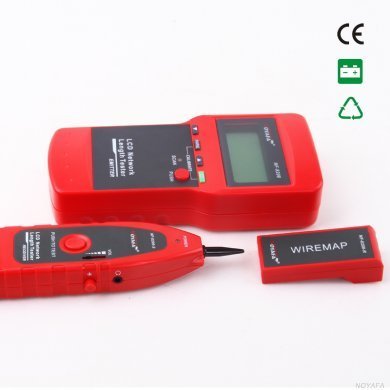

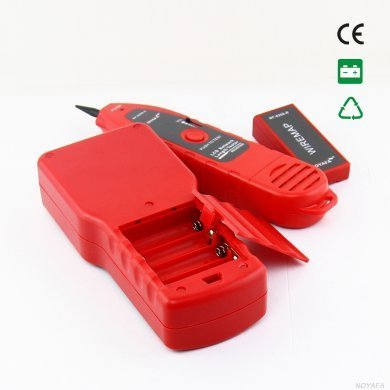

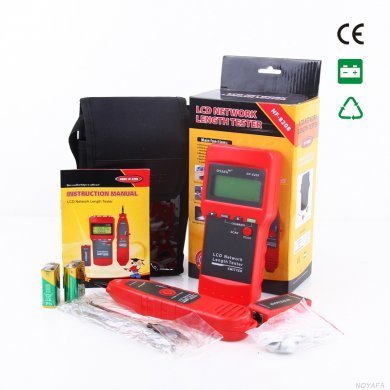

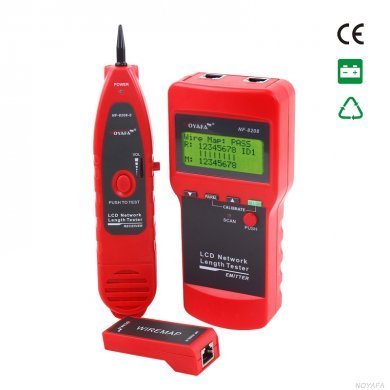

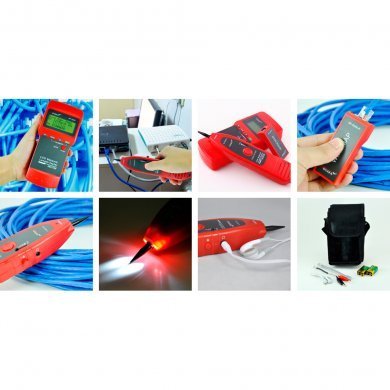

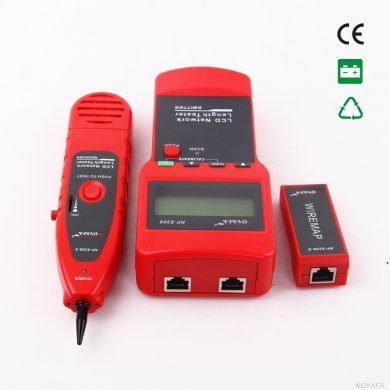

The NF-8208 multipurpose network cable test e inspection instrument is composed of tester (NF-8208), receiver (NF-838-R) and remote identifier. The new instrument is provided with fluent appearance, excellent hand feel and considerate human-centered design. It owns three great s: hunting, wire sorting and circuit status testing with reliable accuracy, so it is widely applicable to telephone system, computer network, other metal wire circuit and other fields. It is really a kind of available tool for technicians in installation and maintenance of weak current system such as communication line, comprehensive wiring circuit, etc.
Features
- One person enough to complete cable continuity check.
- The of probing the audio and tracing the cable.
- Check wiring error in 5E, 6E, telephone line, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference.
- Locate the wiring or connection error.
- Measure cable length and determine the distance f open circuit and short circuit.
- Dynamically calibrate cable length and make length measurement as accurate as 97%.
- Simple and use. Big screen to display test result clear.
- Portable unit with long battery life ( wait-case 50 hours)
- Automatically time-delay shut off.
- Measure length and pair with or without far-end recognizer.
- Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID8).
- Far-end recognizer with prompting voice.
- Self-checking and automatically compensate and change in battery capacity or ambient temperature.
- Single board computer software watchdog design and reliable operation.

Features:	-	-	-	-	-
1. Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.
2. Measure length of network cable, and locate the open point .				-	-
3. Self-checking and automatically compensate any change in battery capacity or ambient temperature.
5. LCD light assists use in dark corners.	-	-	-	-	-
6. Enables cables to be located even when totally concealed.	-	-	-	-	-

Attention:

1.Dont connected high voltage PoE lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it

Maiores detalhes de NF-8208 no site do fabricante:
http://www.noyafa.com/show/20.html

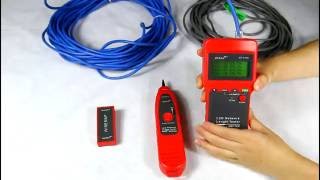

Vídeo de NF-8208 NOYAFA Testador e Gerador de Tom para Redes
