NF-8601 Noyafa POE PING ethernet tester V3

Name: NF-8601 Noyafa POE PING ethernet tester V3
Brand: NOYAFA - SHENZHEN NOYAFA ELECTRONIC CO
SKU: NF-8601
Price: 2185.00 BRL
Availability: InStock

cable length. LCD Color 2.8in, 3.7V lithium battery

NF-8601 - NOYAFA - SHENZHEN NOYAFA ELECTRONIC CO

clique para ampliar

*As imagens podem ser ilustrativas

envio de 20 a 40 dias uteis

R$ 2.185,00

à vista no Pix ou Boleto

ou R$ 2.299,05 em 1x no cartão (via site)

ou R$ 2.426,77 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.185,00

à vista no Pix ou Boleto

R$ 2.299,05
em 1x no cartão (via site)

R$ 2.426,77 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

90303100

R$ 2.185,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 90303100

Cotação PJ mais de uma unidade

Indicar NF-8601

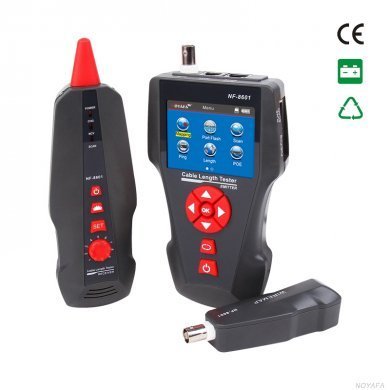

NF-8601 Noyafa POE PING ethernet tester V3
cable length. LCD Color 2.8in, 3.7V lithium battery

Condição de NF-8601: Novo em embalagem comercial

Garantia de NF-8601: 12 meses direto com a Net Computadores

Main:
1. PoE / PING testing.
2. Trace targeted cable among lots of unknown cables ;
3. Port flash help trace lan cable connected to swticher or router visually, no need of receiver.
4. Capable of scanning cable on PoE switch without damaging the device.
5. Locate faults for RJ11/RJ45/BNC Cable;
6. measure cable length accurately
7. Voltage detecting .
8. Memory and storage , export or upload the data from PC.
9. Lithium battery and color screen.

Application:
1. 3.7V lithium battery power supply ,Convenient and durable.
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3. can save and export 160 groups of data to computer (txt. format).

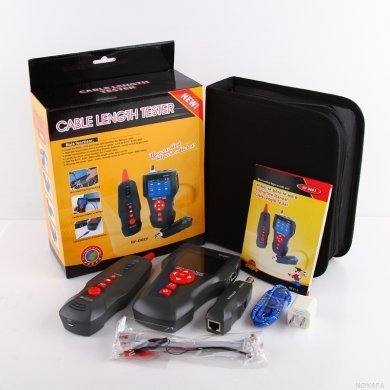

Accessories Included:
Bulitin battery x 2 set
Adapted telephone line x 1 set
Adapted network cable x 1 set
Cable clips x 1 set
Charging adaptor x 1 set
Carry case x 1 set

Attention:
1.Dont connect high voltage live lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because our item with sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

NF8601 Transmitter specifications
Indictor: LCD 320x240 mm, with backlight
Cable test types: STP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap: 2000m
Max. distance of tracing: 2000m
Max. distance of cable length: 1000m
Min. distance of calibration: 10m
Accuracy: 3% ( after calibration )
Compatible connectors: RJ11, RJ45, BNC, PING/POE
Cable map indication: LCD
Battery Type: 3.7V lithium battery 1800mAh
Work temperature / humidity: 10 ~ 60 / 0~70
Dimension(LxWxD): 173 x 92 x 34mm

NF8601 Receiver specifications
Cable hunting: RJ11, RJ45, BNC
Types of cable: 2 cores
Battery Type: 3.7V lithium battery 1800mAh
Dimension (LxWxD): 183 x 58 x 35 mm

NF8601 Remote unit specifications
Compatible connectors: RJ11, RJ45, BNC
Dimension (LxWxD): 106 x 32 x 30mm

Maiores detalhes de NF-8601 no site do fabricante:
http://www.noyafa.com/show/203.html
