Rede / Placa de Rede Fibra Óptica / N-FXE-ST-01

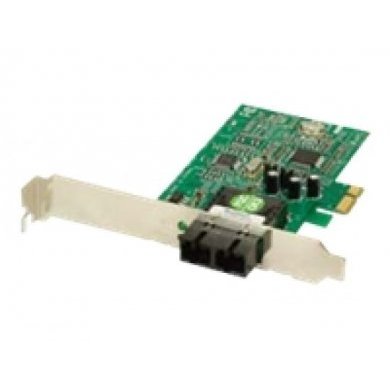

N-FXE-ST-01 Transition Placa de Rede Fibre Channel ST MM

Name: N-FXE-ST-01 Transition Placa de Rede Fibre Channel ST MM
Brand: Transition Networks
SKU: N-FXE-ST-01
Price: 195.00 BRL
Availability: InStock

2KM Transition Networks 100Base-FX PCI Express x1

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 195,00

à vista no Pix ou Boleto

ou R$ 204,81 em 1x no cartão (via site)

ou R$ 216,19 no cartão em até 10x sem juros (apenas na loja física)

R$ 195,00

à vista no Pix ou Boleto

R$ 204,81
em 1x no cartão (via site)

R$ 216,19 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar N-FXE-ST-01

N-FXE-ST-01 Transition Placa de Rede Fibre Channel ST MM
2KM Transition Networks 100Base-FX PCI Express x1

Condição de N-FXE-ST-01: Novo em embalagem comercial

Garantia de N-FXE-ST-01: 12 meses Assist. Técnica do Fabricante

N-FXE-xx-01 is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.
The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.
For users equipped with PCI-Express systems, N-FXE-xx-01 provides the ability to easily build or connect to the Fast Ethernet fiber networks
• PCI-Express x1 Interface
• IEEE 802.3x Full-Duplex Flow Control
• Supports Multicast Frame Filtering
• Supports Asymmetric/Symmetric Flow control
• Supports 802.1q VLAN tagging
• Wake-on-LAN (WoL)
• Microsoft certified drivers
• PXE remote boot support
• RoHS Compliance
• Available with SC, ST, LC multimode and SC, LC single mode fiber connection
• Low-Profile Bracket Included
Standards IEEE 802.3u Fast Ethernet 100Base-FX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN
Bus Slot PCIe 1.0
Status LEDs LINK/ACT (Link/Activity):
ON = communication link;
FLASHING = activity on link
FDX (Full-duplex):
ON = Full-duplex link
Software Support Windows 2000, 2003, XP, NT 4.0, Vista
Novell Netware 4.x
Linux
NDIS2
PXE & RPL Boot ROM
PCB Dimensions 120 mm (L)
68.5 mm (H)
Power Requirement 3W
Environment 0° – 50°C; 5% – 90% humidity
Shipping Weight 1 lb. [0.6 kg]
Regulatory Compliance EMI Standard, FCC Class B, CE Mark
