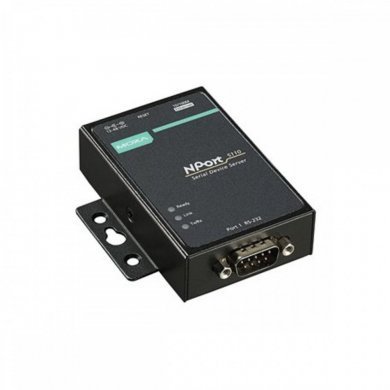

NPORT-5110-T Device server Moxa NPort 5110 serial RS232

Name: NPORT-5110-T Device server Moxa NPort 5110 serial RS232
Brand: MOXA
SKU: NPORT-5110-T
Price: 3102.00 BRL
Availability: InStock

1x RJ45 10/100Mbps auto MDI/MDIX

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 3.102,00

à vista no Pix ou Boleto

ou R$ 3.265,18 em 1x no cartão (via site)

ou R$ 3.446,58 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.102,00

à vista no Pix ou Boleto

R$ 3.265,18
em 1x no cartão (via site)

R$ 3.446,58 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

6 meses direto com a Net Computadores

NCM:

85444200

R$ 3.102,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
6 meses direto com a Net Computadores

NCM: 85444200

Cotação PJ mais de uma unidade

Indicar NPORT-5110-T

NPORT-5110-T Device server Moxa NPort 5110 serial RS232
1x RJ45 10/100Mbps auto MDI/MDIX

Condição de NPORT-5110-T: Novo em embalagem comercial

Garantia de NPORT-5110-T: 6 meses direto com a Net Computadores

Power Requirements
Power Consumption	NPort 5110: 128.7 mA @ 12 V, 72 mA @ 24 V NPort 5130/5150: 200 mA @ 12 V, 106 mA @ 24 V
Input Voltage	12 to 48 VDC
Software
Linux Real TTY Drivers	Linux kernel 2.4.x, 2.6.x
Configuration Options	Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Serial Communication Parameters
Flow Control	RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Data Bits	5, 6, 7, 8
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 1.5, 2
Baudrate	NPort 5110: 110 bps to 230.4 Kbps NPort 5130/5150: 50 bps to 921.6 Kbps
Ethernet Interface
Connector	8-pin RJ45
Speed	10/100 Mbps, auto MDI/MDIX
Magnetic Isolation Protection	1.5 KV built-in
Number of Ports	1
Environmental Limits
Operating Temperature	Standard Models: 0 to 55C (32 to 131F) Wide Temp. Models: -40 to 75C (-40 to 167F) (for NPort 5110-T)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Physical Characteristics
Weight	340 g
Dimensions	Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
Housing	Metal
Serial Interface
Connector	DB9 male
Serial Standards	NPort 5110: RS-232 NPort 5130: RS-422/485 NPort 5150: RS-232/422/485
RS-485 Data Direction Control	ADDC (automatic data direction control)
Number of Ports	1
Pull High/Low Resistor for RS-485	1 K, 150 K
Serial Line Protection	15 KV ESD protection for all signals
Reliability
MTBF (mean time between failures)	NPort 5110: 279,122 hrs NPort 5130: 246,505 hrs NPort 5150: 246,034 hrs
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
Serial Signals
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-422	Tx , Tx-, Rx , Rx-, GND
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Standards and Certifications
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
Safety	UL 60950-1, EN 60950-1
EMS	EN 55024
EMC	CE, FCC

Tags de NPORT-5110-T: NPort-5110-T, NPort 5110 T RS232, NPORT 5110 T, conversor serial rs232 moxa, moxa 5110 T, controladora serial, Conector Serial DB9 RS232, NPORT5110T, MOXA

NPORT-5110-T Device server Moxa NPort 5110 serial RS232 1x RJ45 10/100Mbps auto MDI/MDIX

Condição de NPORT-5110-T:
Novo em embalagem comercial

Garantia de NPORT-5110-T:
6 meses direto com a Net Computadores

Power Requirements
Power Consumption	NPort 5110: 128.7 mA @ 12 V, 72 mA @ 24 V NPort 5130/5150: 200 mA @ 12 V, 106 mA @ 24 V
Input Voltage	12 to 48 VDC
Software
Linux Real TTY Drivers	Linux kernel 2.4.x, 2.6.x
Configuration Options	Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Serial Communication Parameters
Flow Control	RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Data Bits	5, 6, 7, 8
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 1.5, 2
Baudrate	NPort 5110: 110 bps to 230.4 Kbps NPort 5130/5150: 50 bps to 921.6 Kbps
Ethernet Interface
Connector	8-pin RJ45
Speed	10/100 Mbps, auto MDI/MDIX
Magnetic Isolation Protection	1.5 KV built-in
Number of Ports	1
Environmental Limits
Operating Temperature	Standard Models: 0 to 55C (32 to 131F) Wide Temp. Models: -40 to 75C (-40 to 167F) (for NPort 5110-T)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Physical Characteristics
Weight	340 g
Dimensions	Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
Housing	Metal
Serial Interface
Connector	DB9 male
Serial Standards	NPort 5110: RS-232 NPort 5130: RS-422/485 NPort 5150: RS-232/422/485
RS-485 Data Direction Control	ADDC (automatic data direction control)
Number of Ports	1
Pull High/Low Resistor for RS-485	1 K, 150 K
Serial Line Protection	15 KV ESD protection for all signals
Reliability
MTBF (mean time between failures)	NPort 5110: 279,122 hrs NPort 5130: 246,505 hrs NPort 5150: 246,034 hrs
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
Serial Signals
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-422	Tx , Tx-, Rx , Rx-, GND
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Standards and Certifications
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
Safety	UL 60950-1, EN 60950-1
EMS	EN 55024
EMC	CE, FCC
